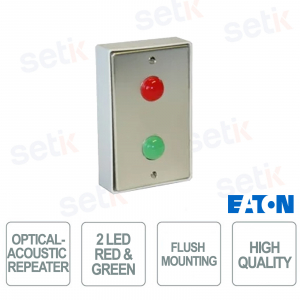

Eaton 1423-BZ-I Flush-Mounted Optical-Acoustic Repeater with 2 LEDs and Buzzer for Fire Alarm Systems

Eaton 1423-BZ-I Flush-Mounted Optical-Acoustic Repeater with 2 LEDs and Buzzer for Fire Alarm Systems

 
-20%

1423-BZ-I - The flush-mounted optical-acoustic repeater is a device designed for remote alarm and fault signaling in fire detection systems, combining two red and green LEDs with an integrated buzzer for immediate visual and audible signaling. Powered by 24 VDC , it offers very low consumption and the option of selecting steady or flashing light mode via an internal jumper. Flush-mounting in a Bticino 503 -type box ensures discreet and professional installation, ideal for fire detection systems. Eaton

Technical Data Sheet

referencia : 1423-BZ-I

brand : EATON - COOPER CSA

EAN: 8054934901027

Manufacturer Object ( [id] => 46 [name] => EATON - COOPER CSA [description] =>

Si busca productos CSA Cooper, estás en el lugar correcto. En el catálogo de Eaton, encontrará muchos productos CSA,ideal para proteger una gran variedad de situaciones: electroimanes, pulsadores, paneles luminosos, sirenas y contactos magnéticos, todos ellos homologados y capaces de cumplir todos los requisitos. No dude en ponerse en contacto con nosotros si está interesado en productos que no aparecen en nuestro sitio web.

[short_description] =>

Eaton

Eaton Industries, empresa especializada en la producción de componentes y sistemas para la automatización industrial y la producción de energía, desde enero de 2022 incluye también en su gama de productos los productos de Cooper CSA, una empresa con más de 30 años de experiencia como referente en el sector de la seguridad.

[id_address] => [date_add] => 2022-03-07 16:03:17 [date_upd] => 2022-03-23 16:04:09 [link_rewrite] => eaton-cooper-csa [meta_title] => EATON COOPER CSA [meta_keywords] => EATON, CSA EATON, EATON CSA, EATON COOPER CSA, CSA, componentes del sistema antirrobo, componentes del sistema de protección contra incendios, cooper safety, centrales de alarma [meta_description] => EATON COOPER CSA ofrece dispositivos de alarma antirrobo y contra incendios para entornos industriales, residenciales y comerciales. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

1423-BZ-I – FLUSH-MOUNTED OPTICAL-ACOUSTIC REPEATER

The 1423-BZ-I flush-mounted optical-acoustic repeater is designed for remote signaling of alarms and anomalies in fire detection systems, offering high visibility thanks to the 2 red and green LEDs and an immediate audible signal via an integrated buzzer . Powered by 24 VDC , it ensures low consumption and allows the selection of steady or flashing light mode via a jumper. Flush-mounting in a standard Bticino 503 box ensures a tidy, discreet installation that integrates perfectly into residential and industrial environments.

Main features:

  • Type: Built-in optical-acoustic repeater
  • Signaling: 2 LEDs (red and green) + buzzer
  • Power supply: 24 Vdc
  • LED Mode: Steady or Flashing
  • Installation: Bticino 503 box
  • Application: Fire detection systems

Further details

✅ Type:
Flush-mounted optical-acoustic repeater designed for remote reporting of alarms, faults, and system status in fire protection systems. Thanks to its compact design, it integrates seamlessly into residential and professional environments, providing immediate visual and audible alerts.
✅ Report:
 The device uses 2 LEDs (red and green) with a wide visibility angle and an integrated buzzer , ensuring clear and effective optical and acoustic signalling for alarms, anomalies and operating status of the fire protection system.
✅ Power supply:
 It operates with a 24 Vdc power supply , ensuring very low energy consumption and continuous, reliable operation, ideal for fire detection systems installed in civil and industrial settings.
✅ LED Mode:
 The LEDs can be configured with a steady or flashing light via an internal jumper , allowing you to adapt the signaling mode to the specific needs of the system and improving the visibility of notifications.
✅ Installation:
 Designed for flush-mounting in a Bticino 503 type box , it guarantees a tidy, discreet and professional installation, integrating perfectly with the plates of the main civil series.

Technical data sheet

Model 1423-BZ-I
PRODUCT LENGTH/DEPTH 77 mm
PRODUCT HEIGHT 121 mm
PRODUCT WIDTH 64 mm
PRODUCT WEIGHT 0.126 kg
CERTIFICATION THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
