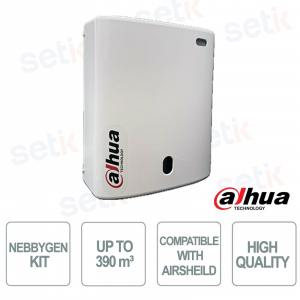

ARA-FOG01-W2-868 | COMPLETE FOG KIT WITH FOG GENERATORS AND 500 ml FLUID BAG

Dahua

The Dahua ARA-FOG01-W2-868 is a compact fog system ideal for protecting shops up to 45 m², capable of saturating the environment with dense fog up to 390 m³ in just 50 seconds. It is compatible with Airshield HUB 1 and HUB 2 systems, reduces power consumption, and is equipped with a 500 ml fluid bag and a built-in dual relay for intelligent security management.

Main specifications:

- Rapid coverage with fog output of up to 390 m³ in 50 seconds

- Low power consumption (only 30W) with battery backup

- 500ml bag included, up to 6 shots per refill

- Compatible with Dahua AirShield HUB 1 and HUB 2 wireless systems

- Ideal for rooms up to 45 m², non-hazardous fog certification

- Dual ARM7011-W2-868 relay included for quick activations

Further details

Fast and effective coverage:
The device can fill the room with up to 390 m³ of dense fog in just 50 seconds, ensuring visibility of less than 1 meter in 130 m³. Ideal for blocking intruders' view in just a few seconds.
Reduced energy consumption :
Thanks to low-power technology, the kit draws only 30W of power during operation, helping to save energy and respect the environment. It includes a 12V 1.2Ah backup battery that provides up to an hour of battery life without power.
500ml fluid bag included :
The kit comes with a 500 ml ARA-FOG01-BAG fluid bag, capable of generating up to 2340 m³ of fog with six full discharges before needing replacement. The fluid is certified "food grade" and is not dangerous for humans or animals.
Full compatibility with Dahua AirShield systems:
The fog generator can be perfectly integrated with the AirShield HUB 1 and HUB 2 wireless systems via the included double ARM7011-W2-868 relay, allowing smart and safe remote control of active protection via standard serial protocol.

Technical data sheet

Model ARA-FOG01-W2-868
Technical specifications
Dimensions L 26.5 x D 11.5 x H 32.5 cm
Weight 3.8 kg
Recommended square meters up to 45 m²
Maximum fog output at a single shot 390 m3
Maximum emission time 50 sec.
Total output capacity with full bag 2340 m3
Amount of liquid in the bag 500 ml
Autonomy without power supply about 1 hour
Warm-up time about 20 minutes
Energy consumption about 30 W
Backup battery 1.2 Ah 12V
Electronic board

2 inputs / 3 outputs

Cover plastic material
