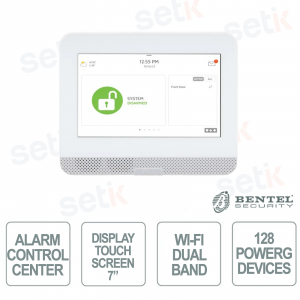

IQ Hub 7" Touchscreen Wi-Fi LTE Z-Wave 800 PowerG Alarm Control Panel for Security and Smart Home Automation - Bentel
IQ4-HUB - is a 7" touchscreen alarm control panel designed to offer complete security and home automation management in a single solution. Equipped with a Qualcomm Snapdragon 8-core processor , dual-band Wi-Fi, LTE, Bluetooth Low Energy and Z-Wave 800 connectivity , it guarantees high performance and reliable communications. It supports up to 128 PowerG devices and 137 Z-Wave devices , integrating video surveillance with live viewing of cameras and video intercoms, smart control of lights, locks, thermostats and garage doors. Thanks to the 7" HD capacitive display , 242 user codes , a backup battery lasting over 24 hours and compatibility with various wireless protocols, it represents an ideal solution for modern residential and professional security systems. Bentel
Technical Data Sheet
IQ4-HUB | 7" TOUCHSCREEN ALARM CONTROL UNIT

The IQ-Hub alarm control panel is an advanced solution for intelligent security and home automation , designed to offer complete management of the system via a 7" capacitive touchscreen display . Equipped with a Qualcomm Snapdragon 8-core processor , dual-band Wi-Fi, LTE, Bluetooth BLE and Z-Wave 800 , it guarantees fast and reliable communications. It supports up to 128 PowerG devices and 137 Z-Wave devices , allowing control of sensors, video intercoms, cameras, lights, locks and thermostats. Thanks to the backup battery of over 24 hours , 242 user codes and the intuitive Android interface, it is the ideal choice for residential and professional security systems.
Main specifications:
- Display: 7" HD capacitive touchscreen
- Connectivity: Dual band Wi-Fi, LTE, Bluetooth BLE
- Home automation: Z-Wave 800 support for up to 137 devices
- Security: Compatible with 128 PowerG devices
- Processor: Qualcomm Snapdragon 8-core
- Autonomy: backup battery over 24 hours
- Management: up to 242 user codes
- Functions: live viewing of cameras and video intercoms, control of smart devices
Main features
✅ Display:
7" capacitive touchscreen with 1024 × 600 pixel resolution, designed to offer intuitive management of the alarm control panel. The Android 9- based interface allows quick control of security, automation and video surveillance functions directly from the panel.
✅ Connectivity:
Thanks to the support for dual band 2.4/5 GHz Wi-Fi , LTE Cat.4 and Bluetooth Low Energy (BLE 4.2) , the control unit guarantees stable and redundant communications, ensuring operational continuity even in the event of unavailability of the main network.
✅ Home automation:
Z-Wave Plus 800 technology allows you to manage up to 137 devices , including lights, smart locks, thermostats and garage doors , transforming the control unit into a true hub for the smart home .
✅ Security:
Compatible with up to 128 PowerG devices over long range with encrypted two-way communication , it offers a high level of protection. It also integrates an anti-tamper switch , an 85 dB siren, and support for different radio technologies based on the version installed.
✅ Processor:
The powerful Qualcomm Snapdragon 8-core with 16GB of Flash memory ensures high performance, fast response times and smooth management of security, video surveillance and automation functions.
✅ Management:
It supports up to 242 user codes with different roles ( Master, Installer, User, Guest and Duress ), allowing advanced management of access and authorizations in residential and professional settings.
✅ Functions:
It allows live viewing of cameras and video intercoms , control of home automation devices , touchless unlocking via Bluetooth , guided diagnostics for installation and complete management of the system directly from the touchscreen panel.
Technical data sheet
| IQ4-HUB | |
| LCD Display | |
| Size | 7-inch LCD |
| Resolution | 1024 x 600 pixels |
| Brightness | 300 cd/m2 |
| RGB Color | 24-bit, 16.9 million colors |
| Touch screen | |
| Type | Capacitive glass |
| User Codes | |
| Up to 242 | Role-based (Dealer, Installer, Master, User, Guest, Duress) |
| Network | |
| WiFi | WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability |
| Cellular | LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 non-FirstNet, 26) |
| Z-Wave Plus (800) | |
| Up to 137 Devices | 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc. |
| PowerG | |
| Up to 128 Devices | 915 MHz Long Range Secure Encrypted 2-Way Wireless |
| Security RF | |
| Up to 128 Devices | Depending on the model: Either S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz |
| Bluetooth | |
| Disarm & Audio Streaming | Bluetooth Low Energy (BLE) 4.2 |
| Flash Memory | |
| Internal Storage | 16GB NAND Flash |
| LED Indicator | |
| Status LED | Full-color RGB LED |
| Speaker/Siren | |
| 4W | Front-facing 4W speaker + 85-dB piezo siren |
| Microphone | |
| MEMS | 1x MEMS (Micro-Electro-Mechanical System) Microphones |
| Tamper | |
| Tamper Switch | Dual panel and wall tamper with spring release and Smash and Grab reporting |
| Battery | |
| Type 18650 | Rechargeable Lithium Ion 3000mAh Rated for over 24 hours |
| Buttons | |
| Hard Button | Single wake/sleep button, all user controls through touch interface |
| Mechanical | |
| Dimensions | 6.1”H x 7.5”W x 1”D (155mm x 191mm x 26mm) |
| Power Supply | |
| A.D | 7v DC 1000mA DC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL |
| Mount | |
| Back Plate | SmartMount for wall mounting included. SmartMount table stand |
| Certifications | |
| FCC | FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs) 2AAJXQS-ZW8 |
| IC | IC: 11205A-QSIQPANEL4 11205A-QSZW8 |
| UL/ULC | UL-985, UL-1023, UL2610, ULC-S545, ULC-S304 |
| Temperature | |
| Operation | 0°C to 49°C, 32°F to 120.2°F, up to 93% relative humidity, indoor, dry ordinary locations use only |
| Storage | -20°C to 50°C, -4°F to 122°F |
| Operating System | |
| Android 9 | Security & Home Automation Touch and Swipe Interface |
| Processor | |
| 8-core | Qualcomm Snapdragon 8-core SOM (System on a Module) with 16GB of NAND Flash |
