HYU-67 868 MHz Wireless Two-Way Magnetic Contact for Smart4Home Burglar Alarm with Anti-Sabotage - Hyundai

HYU-67 868 MHz Wireless Two-Way Magnetic Contact for Smart4Home Burglar Alarm with Anti-Sabotage - Hyundai

 
nuevo

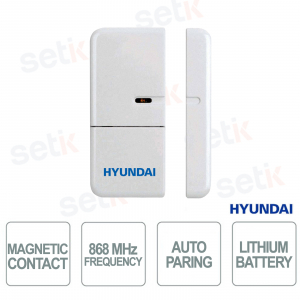

The HYU-67 is a wireless magnetic contact designed for protecting doors and windows , compatible with the Smart4Home burglar alarm system. Thanks to its two-way 868 MHz technology and wireless range of up to 30 meters indoors , it guarantees reliable communication with the alarm control panel. The device detects unauthorized openings and integrates an anti-sabotage function that activates the alarm in the event of tampering. Equipped with automatic pairing and a battery level indicator , it is powered by a 3V 620 mAh CR2450 lithium battery . Its compact design, with dimensions of 31 × 70 × 11.5 mm, is Hyundai .

Technical Data Sheet

referencia : HYU-67

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-67 | WIRELESS MAGNETIC CONTACT

Hyundai Security

The HYUNDAI HYU-67 is a wireless magnetic contact for doors and windows , designed for the Smart4Home burglar alarm system and ideal for detecting unauthorized openings. Equipped with two-way radio communication at 868 MHz and a range of up to 30 meters indoors , it ensures reliable alarm transmission. It integrates anti-sabotage protection that detects tampering attempts and activates the alarm system. Thanks to the Auto Pairing function, it allows automatic association with the system, while the battery level indicator makes it easy to check the power supply. It works with a 3V 620 mAh CR2450 lithium battery , has compact dimensions of 31 × 70 × 11.5 mm.

Main specifications:

  • Type: Wireless magnetic contact
  • Compatibility: Smart4Home
  • Frequency: 868 MHz bidirectional
  • Range: Up to 30m indoors
  • Protection: Anti-sabotage
  • Pairing: Auto Pairing
  • Power supply: CR2450 battery, 3V
  • Indicator: Battery level
  • Dimensions: 31 × 70 × 11.5 mm

Further details

✅ Compatibility:
The HYUNDAI HYU-67 wireless magnetic contact is designed for the Smart4Home burglar alarm system , ensuring detection of door and window openings. It supports the Auto Pairing function for automatic connection to the system and is included in the HYU-65 kit.
✅ Frequency:
The device uses a two-way radio frequency of 868 MHz , which enables wireless communication between the magnetic contact and the Smart4Home burglar alarm control unit, allowing the transmission of alarm signals without wired connections.
✅ Range :
The HYU-67 magnetic sensor offers a wireless range of up to 30 metres indoors , allowing radio connection with the Smart4Home control unit and monitoring of door and window openings within the coverage area.
✅ Protection :
Equipped with an anti-sabotage system , the HYU-67 magnetic contact detects both unauthorized opening of doors and windows and attempts to tamper with the detector. When the burglar alarm system is armed, separating the sensor from the magnet or opening the device triggers the alarm , with notifications managed via the Smart4Home control panel.

Technical data sheet

HYU-67
Specifications
Anti-sabotage system
Frequency: 868MHz bidirectional
Signal range up to 30 meters indoors
CR2450 lithium battery, 3V, 620mAh
Battery level indicator
Operating temperature -10°C ~ +40°C
Relative humidity up to 85%
Dimensions: 31 x 77 x 13 mm
Auto pairing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
