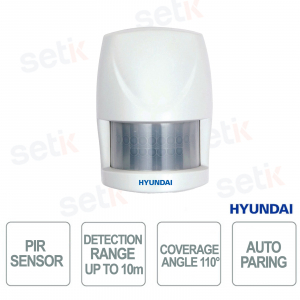

HYU-66 Wireless 868 MHz Smart4Home Volumetric PIR Detector 10 Meters 110° Anti-Sabotage - Hyundai

HYU-66 Wireless 868 MHz Smart4Home Volumetric PIR Detector 10 Meters 110° Anti-Sabotage - Hyundai

 
nuevo

The HYU-66 is a wireless PIR volumetric detector designed for the Smart4Home burglar alarm system , ideal for motion detection and indoor automation. Equipped with a passive infrared sensor (PIR) and a brightness sensor , it offers a detection range of up to 10 meters with a coverage angle of 110° , also allowing automatic activation of lights in low light conditions. It uses two-way 868 MHz radio communication with a wireless range of up to 30 meters indoors and integrates anti-sabotage protection for greater security. It supports the Auto Pairing function and has a battery level indicator. Powered by a 3V CR123 battery , it guarantees an autonomy of up to approximately 3 years , has dimensions of 62 × 87 × 42 mm. Hyundai

Technical Data Sheet

referencia : HYU-66

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-66 | WIRELESS VOLUMETRIC PIR DETECTOR

Hyundai Security

The HYUNDAI HYU-66 is a wireless PIR volumetric detector designed for the Smart4Home burglar alarm system , ideal for motion detection and indoor automation . Equipped with a passive infrared sensor (PIR) and brightness sensor , it offers a detection range of up to 10 meters with a coverage angle of 110° , also allowing automatic activation of lights in low light conditions. It uses 868 MHz two-way radio communication with a wireless range of up to 30 meters indoors and integrates anti-sabotage protection. It supports the Auto Pairing function and has a battery level indicator . Powered by a 3V CR123 battery , it guarantees an autonomy of approximately 3 years , has dimensions of 62 × 87 × 42 mm.

Main specifications:

  • Type: Wireless PIR volumetric detector
  • Compatibility: Smart4Home
  • Technology: PIR and brightness sensor
  • Detection: Up to 10 meters
  • Coverage angle: 110°
  • Frequency: 868 MHz bidirectional
  • Wireless range: Up to 30m indoors
  • Protection: Anti-sabotage
  • Pairing: Auto Pairing
  • Power supply: 3V CR123 battery
  • Battery life: Approximately 3 years
  • Dimensions: 62 × 87 × 42 mm

Further details

✅ Compatibility:
The HYUNDAI HYU-66 wireless volumetric PIR detector is designed for the Smart4Home burglar alarm system, enabling motion detection and integration with home automation functions. It supports Auto Pairing for easy system connection and is included in the HYU-65 kit.
✅ Technology :
The device integrates a passive infrared (PIR) sensor and a brightness sensor , combining intrusion security and Smart4Home automation functions. The PIR sensor detects the presence of people in the monitored area, while the light sensor automatically activates the lighting when the brightness drops below a certain level.
✅ Detection :
The HYU-66 PIR motion sensor offers a detection range of up to 10 meters , allowing you to detect the presence of people indoors. When the Smart4Home burglar alarm system is armed, the detection of motion in the protected area triggers the intruder alarm.
✅ Coverage angle:
The detector has a detection angle of 110° , which allows you to monitor a large portion of the environment with a volumetric coverage of up to 10 meters , making it suitable for protecting rooms and other internal spaces.
✅ Wireless frequency:
The HYUNDAI HYU-66 detector uses two-way 868 MHz radio communication , with a specified frequency of 868.30 MHz , to communicate with Smart4Home control devices. The wireless signal range of up to 30 meters indoors allows for wireless connection to the burglar alarm control panel.
✅ Protection:
The device integrates an anti-sabotage function to protect against attempts to tamper with the detector. Combined with PIR volumetric detection , it contributes to indoor security by triggering the alarm when a presence is detected in the monitored area while the burglar alarm system is armed.

Technical data sheet

HYU-66
Specifications
PIR scope 10m
Detection angle 110°
868MHz frequency
System sabotage
Battery level indicator
Scope of application of the 30-meter signal indoors
Auto pairing
Powered by 3V CR123 battery
Battery life of 3 years (approximately)
Operating temperature 0°C ~ +40°C
Maximum relative humidity 85%
Dimensions: 62 x 87 x 42 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
