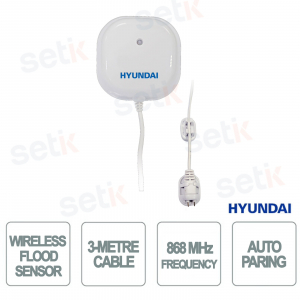

HYU-73 Wireless 868 MHz Smart4Home IP44 Flood Sensor with 3-Meter Probe and Acoustic Alarm - Hyundai

HYU-73 Wireless 868 MHz Smart4Home IP44 Flood Sensor with 3-Meter Probe and Acoustic Alarm - Hyundai

 
nuevo

The HYU-73 is a wireless flood sensor designed for the Smart4Home system , ideal for the early detection of water leaks and flooding in residential and commercial environments. Equipped with a liquid detection probe with a 3-meter cable , it signals the presence of water via audible alarms and LED indicators , also allowing the reception of notifications on smartphones and tablets via a dedicated app. It uses an 868 MHz radio frequency with a wireless range of up to 150 meters in open fields and supports the Auto Pairing function for automatic pairing. It has an IP44 protection rating , is powered by 3 1.5V AA batteries and allows monitoring of the sensor status, radio signal and battery via the app. With dimensions of 85 × 85 × 39 mm and an operating temperature of -10°C to +40°C , it is suitable for installation in homes, cellars, boats and commercial buildings. Hyundai

Technical Data Sheet

referencia : HYU-73

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-73 | 868 MHz WIRELESS FLOOD SENSOR WITH 3-METER PROBE AND AUDIBLE ALARM

Hyundai Security

The HYUNDAI HYU-73 is a wireless flood sensor designed for the Smart4Home system , ideal for the early detection of water leaks and flooding in residential and commercial environments. Equipped with a liquid detection probe with a 3-meter cable , it signals the presence of water via audible alarms and LED indicators, also allowing the reception of notifications on smartphones and tablets via a dedicated app. It uses an 868 MHz radio frequency with a wireless range of up to 150 meters in open fields and supports the Auto Pairing function for automatic pairing. It has an IP44 protection rating , is powered by 3 1.5V AA batteries and allows monitoring of the sensor status, radio signal and battery via the app. With dimensions of 85 × 85 × 39 mm and an operating temperature of -10°C to +40°C, it is suitable for installation in homes, cellars, boats and commercial buildings.

Main specifications:

  • Type: Wireless flood sensor
  • Compatibility: Smart4Home
  • Detection: Water and liquid leaks
  • Probe: 3 meter cable
  • Frequency: 868 MHz
  • Wireless range: Up to 150 m
  • Signaling: Audible alarm and LED
  • Notifications: Via app
  • Protection: IP44
  • Pairing: Auto Pairing
  • Power supply: 3 x 1.5V AA batteries
  • Dimensions: 85 × 85 × 39 mm

Further details

✅ Compatibility:
The HYUNDAI HYU-73 wireless flood sensor is designed for the Smart4Home system, enabling water leak and flood monitoring in residential and commercial environments. It supports the Auto Pairing function for automatic system connection and allows you to receive alarm notifications via smartphone and tablet apps.
✅ Detection:
The HYU-73 flood sensor promptly detects the presence of water and other liquids , reporting any leaks and flooding situations. It is suitable for the protection of homes, cellars, boats and commercial buildings , helping to quickly identify possible liquid infiltrations or leaks.
✅ Probe :
The device is equipped with an external liquid detection probe , connected to the main unit via a 3-meter cable. This configuration allows the sensor to be positioned in the area to be monitored, making it easier to detect water leaks even in locations far from the wireless unit.
✅ Frequency :
The HYUNDAI HYU-73 sensor uses an 868 MHz wireless radio frequency to communicate with the Smart4Home system , allowing wireless transmission of alarm signals and device status information.
✅ Wireless range:
The device offers a radio signal range of up to 150 meters in open fields , allowing communication with the Smart4Home system without the need for data transmission cabling. The 868 MHz wireless technology allows for flexible installation in residential and commercial environments.
✅ Report:
The HYU-73 flood sensor integrates an audible alarm system and LED visual signal that activates when the presence of liquids is detected. Using the Smart4Home app for smartphones and tablets, you can receive alarm notifications and check the status of the sensor, radio signal, and battery , making it easy to monitor the device.

Technical data sheet

HYU-73
Specifications
IP44 protection
Liquid sensor
Frequency: 868MHz
Signal range up to 150 meters in open field
LED and audible notifications
Automatic aggregation (auto pairing)
Power supply: 3 x 1.5V AA batteries
Operating temperature +10°C ~ +40°C
Relative humidity up to 85%
Dimensions: 85 x 85 x 39 mm
Cable length: 3 meters
