CSA 498-1512 - is a wall-mounted aluminum key box with key lock, supplied with three identical keys for all models. Designed for safety and reliability, it offers terminal connections and a tamper-resistant structure with an IP65 protection rating. Compact and durable (95x95x50 mm), it supports voltages up to 28V AC and a nominal current of 4A. Ideal for electrical installations and control systems, it complies with CE certification and guarantees simple and durable front mounting . Eaton
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

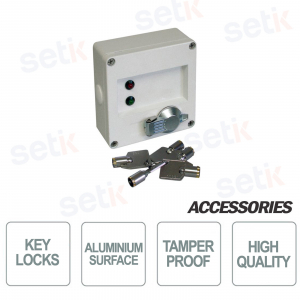

CSA 498-1512 – ALUMINUM KEY BOX WITH LOCK FOR MOUNTING - 3 KEYS
The Eaton 498-1512 is an aluminum wall-mounted key lock designed to ensure maximum security and reliability in electrical systems. Equipped with three identical keys for all models, it features a robust, tamper-resistant, and CE-certified construction. Its compact design and IP65 protection rating make it ideal for industrial and residential applications, ensuring resistance and durability.
Main features:
- Aluminum wall mount
- IP65 protection rating
- Rated current 4A and voltage up to 28V AC
- 2-position On/Off switch
- CE certification and tamper-proof design
Further details
Made of aluminum , it guarantees corrosion resistance, lightness and long life even in harsh environmental conditions.
Surface mounted device, easy to install on walls or panels, ideal for industrial or civil applications.
IP65 rating, which ensures total protection against dust and resistance to water jets, making it perfect for outdoor or humid environments.
It supports 4A current and up to 28V AC operating voltage , ensuring stable and safe operation.
Equipped with a 2-position , 6-pole On/Off key switch , it allows reliable control of circuits with anti-tamper function.
Technical data sheet
Model: | CSA 498-1512 |
Product Name | Eaton Key Locks |
Product Length/Depth | 95 mm |
Product Height | 95 mm |
Product Width | 50 mm |
Product Weight | 0.484 kg |
Certifications | THERE IS |
Enclosure Color | White |
With retraction in 0-position | No |
Front shield size | Other |
Rated operation voltage (Ue) at AC - max | 28 V |
With zero (off) position | Yes |
Suitable for floor mounting | No |
Suitable for front mounting | Yes |
Suitable for distribution board installation | No |
Suitable for intermediate mounting | No |
Complete device in housing | Yes |
Actuator type | Key |
Switch type | On/Off switch |
Number of poles | 6-pole |
Degree of protection (front side) | IP65 |
Device construction | Surface-mounted device |
Degree of protection (NEMA) | Other |
Number of switch positions | 2 |
Amperage Rating | 4 A |
