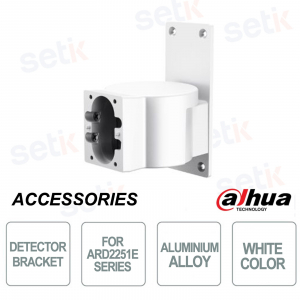

Adjustable Wall Mount - ARA34E-WH - for ARD2251E Detectors - Dahua

Adjustable Wall Mount - ARA34E-WH - for ARD2251E Detectors - Dahua

 
-56% nuevo

ARA34E-WH - The wall mount In white, it is designed for stable and professional installation of the ARD2251E series detectors, ensuring precise orientation thanks to horizontal adjustment up to ±40° . Made of resistant aluminum alloy, it ensures reliability even in difficult environmental conditions, with an operating range of -25°C to +60°C . The compact size and wall-mounted installation simplify integration into any context, offering a robust, durable solution suitable for advanced security systems. Dahua

Technical Data Sheet

referencia : ARA34E-WH

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARA34E-WH | ADJUSTABLE WALL MOUNT


Dahua

The Dahua ARA34E-WH wall mount, in white finish, is designed to ensure stable and precise installation of the ARD2251E series detectors, offering horizontal adjustment up to ±40° for optimal orientation of the monitored area. Constructed of durable aluminum alloy and featuring anti-corrosion protection, it ensures reliable performance even in harsh conditions, thanks to its operation from –25°C to +60°C and its compact structure that facilitates professional installation. Ideal for indoor installations, it combines robustness, durability and maximum compatibility with Dahua security devices.

Main specifications:

- Compatible with ARD2251E detectors

- White color

- ±40° horizontal adjustment for custom positioning angle

- Aluminum alloy material with anti-corrosion protection

- Operating range from –25°C to +60°C, ideal for different environments

- Wall-mounted installation with compact dimensions 94 × 73.4 × 55 mm

Further details

✅ Compatibility with detectors:
 The Dahua ARA34E-WH mount is specifically designed to ensure maximum compatibility with the ARD2251E series detectors, ensuring stable and precise mounting. Thanks to its dedicated structure, it allows for professional and optimized installation, maintaining correct alignment and angle to improve the coverage and reliability of the detection system.

 ✅ Material :
 Crafted from aluminum alloy , the ARA34E-WH mount offers strength, impact resistance, and long-lasting durability, making it ideal for installations requiring robustness and stability. The material offers good tolerance to thermal shock and, thanks to its integrated corrosion protection, is suitable for both indoor and more demanding environments without compromising efficiency.

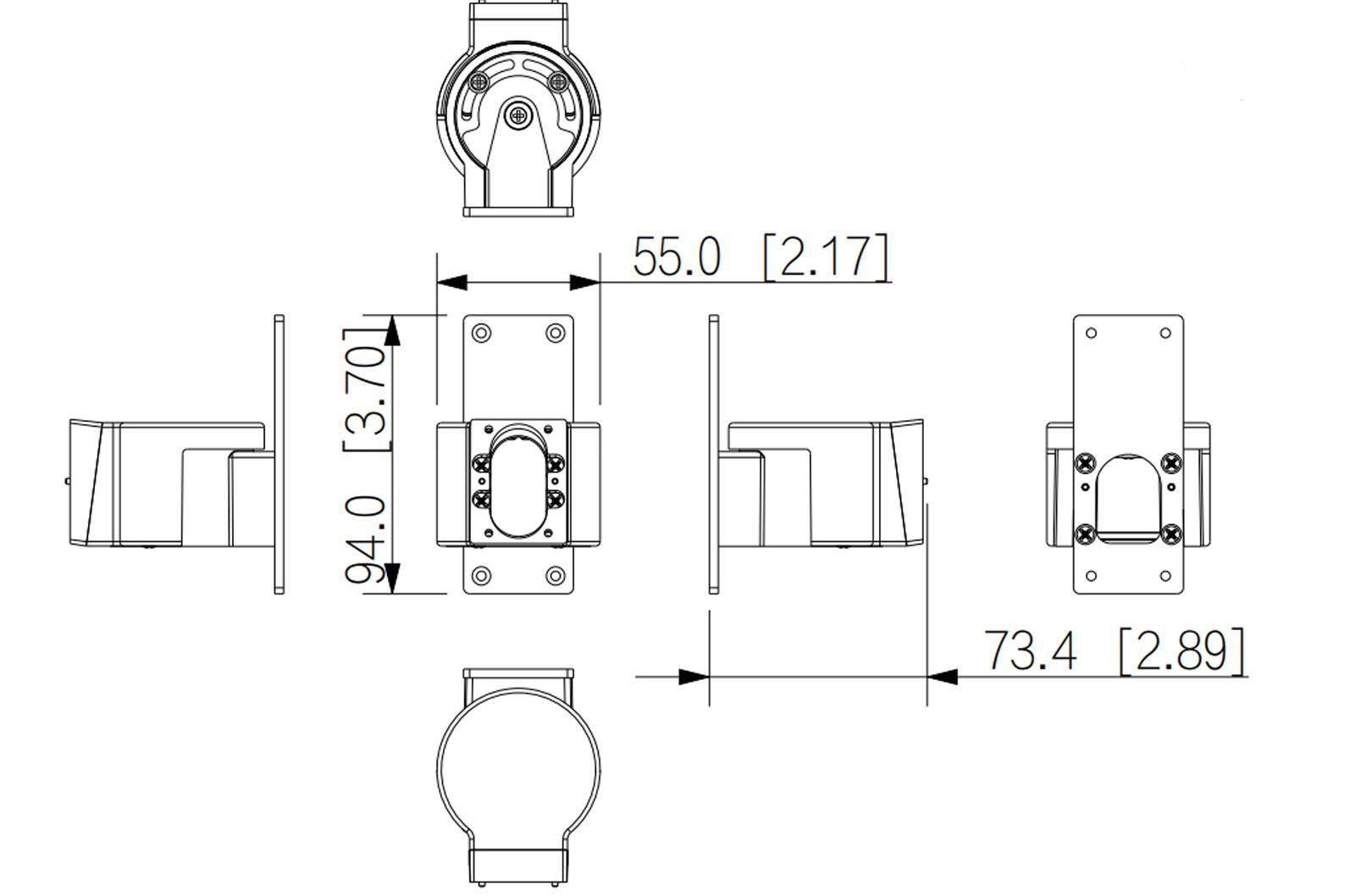

ARA34E-WH cover

Technical data sheet

Model ARA34E-WH
General
Operating Temperature –25 °C to +60 °C (–13 °F to +140 °F)
Operating Humidity 10%–90% (RH)
Product Dimensions 94.0 mm × 73.4 mm × 55.0 mm (3.70" × 2.89" × 2.17")
Installation Height 0.8 m to 1.3 m
Net Weight 140 g (0.31 lb)
Gross Weight 230 g (0.51 lb)
Installation Wall mount
Rotation Angle Horizontal: ±40°
Material Aluminum alloy
Applicable Model ARD2251E series
Appearance Color White
Protection Basic Protection
Anti-corrosion Level Basic Protection
Operating Altitude Below 3,000 m (9,842.52 ft)
Storage Temperature –25 °C to +60 °C (–13 °F to +140 °F)
Storage Humidity 10%–90% (RH)
Packaging Dimensions 121.0 mm × 108.0 mm × 99.0 mm (4.76" × 4.25" × 3.40")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
