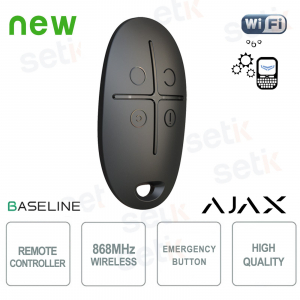

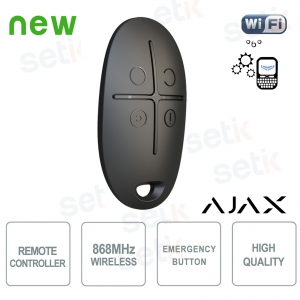

Ajax SpaceControl Jeweller Black: Wireless Security Remote Control with 4 Buttons

Ajax SpaceControl Jeweller Black: Wireless Security Remote Control with 4 Buttons


38167.04.BL1 # 38167 | Ajax SpaceControl Jeweller black is a wireless key fob designed for complete control of the security system, equipped with 4 multifunction buttons that allow arming, disarming, activating Night Mode and sending an immediate panic signal . Thanks to Jeweller technology, it guarantees secure communications up to 1,300 meters , with advanced encryption and device authentication, ensuring reliability in any conditions. The CR2032 battery with up to 5 years of battery life allows for prolonged use without maintenance, while protection against accidental presses and the lightweight and compact design make it ideal for everyday use. Ajax

Technical Data Sheet

referencia : 38167.04.BL1

brand : Ajax Systems

EAN: 4823114015786

Disponibilità: 30

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


CARTEL GRATUITO DE TVCC×


Con todos >> KITS AJAX

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38167.04.BL1 | WIRELESS REMOTE CONTROL WITH PANIC BUTTON AND SAFETY MODE CONTROL

Ajax

The Ajax SpaceControl Jeweller, 38167.04.BL1, black is a wireless key fob designed to ensure quick and safe control of the security system thanks to its 4 multifunction buttons dedicated to arming, disarming, activating Night Mode and sending the panic signal . Communication takes place via Jeweller technology, which offers a range of up to 1,300 meters with advanced encryption and authentication to prevent spoofing, while the CR2032 battery with up to 5 years of battery life ensures long-lasting and reliable use. The compact design, protection against accidental presses and the possibility of quick configuration via QR code make this key fob an ideal solution for daily security management.

Main specifications:

- 4 buttons with integrated safety functions

- Jeweler technology with range up to 1,300 m

- Anti-spoofing authentication and encryption

- CR2032 battery with up to 5 years of battery life

- Protection against accidental activation

Further details

Jeweler Communication:
The remote control uses Jeweller technology to ensure secure, continuous radio communication up to 1,300 meters in open space, leveraging advanced encryption and device authentication to prevent spoofing and ensure command reliability; furthermore, a built-in LED confirms each operation, ensuring immediate and verifiable control of the system.
Main features :
The SpaceControl Jeweller features 4 multifunction buttons for arming, disarming, activating Night Mode, and sending a panic signal, offering complete control of your security system. Double-press and long-press protection ensures safe operation, while the compact design makes it easy to carry in your pocket or on a keychain.
Power supply:
Powered by a pre-installed CR2032 battery, the remote control guarantees up to 5 years of battery life , minimising maintenance and also including a low battery warning system, thus ensuring continuous and reliable operation over time.

Technical data sheet

38167.04.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,300 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Key features
Number of buttons 4
  • System arming button
  • System disarming button
  • Night mode button
  • Panic button
Group management A user can select a security group that the key fob manages
Assigning to a user When a key fob is assigned to a user, its events are sent to Ajax apps under the user's name. The key fob has the same security mode management rights as the user
Accidental press protection long or double press
Available on key fobs with the firmware version 5.54.1.0 or higher manufactured from March 19, 2020
Supervising feature Button will update the status of its battery every day. This feature is available with OS Malevich 2.16 and higher
Power Supply
Battery 1 × CR2032
Pre-installed.
Type Type C
Full battery capacity 225 mAh
Device's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 0.7 μA
Maximum device's current consumption at nominal voltage 26 mA
Calculated battery life up to 5 years
Manufacturer Panasonic or Renata
Enclosure
Color Black
Dimension 65 × 37 × 10 mm
Weight 12.7 g
Operating temperature range from −25 °C to +50 °C
Operating humidity up to 95%
Protection class IP50, IK04
Complete set Ajax SpaceControl Jeweler
CR2032 battery (pre-installed)
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
