38095.26.WH1 | PANIC BUTTON / WIRELESS SMART BUTTON

Ajax

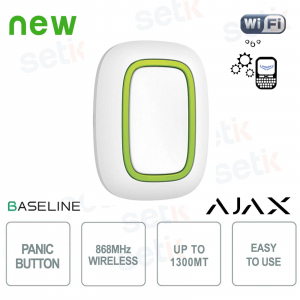

The Ajax Button Jeweller , 38095.26.WH1 , white , is a smart wireless button designed to ensure immediate and secure control of the Ajax system, thanks to its three operating modes that allow you to send instant alarms, activate home automation devices, and silence fire alarms. Encrypted two-way Jeweller communication , with a range of up to 1,300 m, ensures reliable, spoofing-resistant transmissions and precise notifications about the event, location, and type of alarm. The device integrates protection against accidental presses via double or long press, with remote configuration via the app, allowing for full customization of scenarios and events. Robust and pocket-sized, with IP55 protection class , it can be carried around or fixed to surfaces thanks to the dedicated holder, operating with a long-life CR2032 battery.

Main specifications:

- Three operating modes: panic button, automated device control, fire alarm silencing

- Encrypted Jeweller radio communication with device authentication and detailed notifications

- Range up to 1,300 m between button and hub/repeater in open field

- Compatibility with all Ajax hubs and range extenders

- IP55 protection grade, dust and splash resistant

- CR2032 battery included with long battery life

Further details

✅ Jeweler Communication:
The Button Jeweler uses Jeweler radio technology with encrypted two-way communication, ensuring secure and immediate transmissions to hubs and repeaters. This protocol allows for precise identification of which button was pressed, when, and where, ensuring constant and reliable monitoring. Communication range can reach 1,300 meters in open terrain , while device authentication for each session protects against spoofing attempts, making communications extremely resilient.
✅ Main features :
The device offers three operating modes : Panic mode to send immediate alarms in the event of an intrusion, medical emergency, fire, or other critical situations; Control mode to activate automations such as relays and smart plugs; and Mute mode to silence connected fire alarms. You can configure custom events, assign short or long presses, and manage all settings from the mobile or desktop app, without requiring physical access to the device.
✅ Anti-sabotage protection:
The button integrates advanced security systems, including protection against accidental presses thanks to the option to set double or long press, preventing false alarms. Device authentication during each communication prevents clones or attempts to replace the signal. Furthermore, events are transmitted encrypted, preventing interception or manipulation during transmission.
✅ Power supply:
The Button Jeweller is powered by a pre-installed CR2032 battery, designed for long battery life and easy replacement. The low power consumption of the Jeweller protocol allows the device to maintain continuous and reliable communications, even under heavy use. Its self-powered design allows the button to be placed anywhere, whether carried as a personal device or mounted on an indoor or outdoor surface thanks to its IP55 protection .

Technical data sheet

38095.26.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,300 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Key features
Number of buttons 1
Adjustable event types
  • Intrusion
  • Fire
  • Auxiliary alarm
  • Panic button
  • Gas alarm
  • Malfunction
  • Leakage
  • Custom
If the Custom event type is selected, event notifications will not be sent to the security company monitoring station, and system users will not receive an SMS
LED backlight indicating command delivery The LED brightness is adjusted in Ajax apps
Protection against accidental pressing long or double press
Supervising feature Button will update the status of its battery every day. This feature is available with OS Malevich 2.16 and higher
Recommendations The device is designed for indoor use only.
Sabotage protection
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 1 × CR2032
Pre-installed.
Type Type C
Calculated battery life up to 5 years
Button's operating voltage range 1.8−3.3 V⎓
Button's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 0.5 μA
When the Battery charge auto-check toggle is disabled
2.02 μA
When the Battery charge auto-check toggle is enabled
Maximum device's current consumption at nominal voltage 27.8 mA
Full battery capacity 235 mAh
Low battery voltage 2.2 V⎓
Low battery recovery voltage 2.3 V⎓
End-of-life battery voltage 1.8 V⎓
Device is switched off.
End-of-life battery capacity 40 mAh
Manufacturer Panasonic or Renata
Enclosure
Color White
Dimension 47 × 35 × 13 mm
Weight 16 g
Operating temperature range from −10 °C to +40 °C
Operating humidity up to 75%
Protection class IP55
Complete set Button Jeweler
CR2032 battery (pre-installed)
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
