AMC GSM Bidirectional Remote Controlled Combiner - AMC

AMC GSM Bidirectional Remote Controlled Combiner - AMC

 
BEST PRICE -15%

VOXOUT Elettronica is a bidirectional GSM telephone dialer ideal for alarm and automation systems. It supports up to 5 configurable terminals, remote management via SMS, call or ring, and integrated environmental listening. Compliant with the EN 50136-1-1 Grade 2 standard, it offers advanced functions such as PSTN simulation, periodic tests and SIM credit control. It stores up to 200 numbers for quick and safe activations. Perfect for professional installations that require reliability and remote control. AMC Elettronica

DISCOVER ALSO THE 4G VOX-4W VERSION

Technical Data Sheet

referencia : VOX_OUT

brand : AMC

EAN: 0638097389441

Disponibilità: 118

Manufacturer Object ( [id] => 26 [name] => AMC [description] =>

Fundada en 1974, AMC Elettronica puede contar con una red de distribución internacional con productos sólo hechos en Italia. Una de las cualidades más importantes de esta empresa es la atención prestada al diseño y a las necesidades de los clientes. El AMC Elettonica no es sólo distribución, sino también producción y análisis. De hecho, en el establecimiento de Lurago d'Erba hay una línea de producción totalmente automatizada para las placas electrónicas de tecnología SMT y un "laboratorio de pruebas" para la comprobación y el ensayo. Paneles de control, sirenas y sensores de movimiento son sólo algunos de los productos fabricados y distribuidos por AMC Elettronica. AMC Elettronica, marca sinónimo de calidad y profesionalidad, ofrece a sus clientes incluso un servicio Cloud gratuito y una aplicación oficial gratuita "AMC Manager" compatible con Android y Apple.

[short_description] =>


Setik distribuye desde hoy AMC Elettronica, una marca italiana especializada en el sector de la anti-intrusión.

[id_address] => [date_add] => 2018-02-01 09:38:22 [date_upd] => 2025-02-18 12:20:02 [link_rewrite] => amc [meta_title] => AMC Elettronica sistemi di allarme e antifurto [meta_keywords] => AMC,AMC Elettronica,Antintrusione,Antifurto,Allarme,Sistemi d'allarme,sicurezza,sicurezza della casa,rilevatori di movimento,centrali d'allarme [meta_description] => Desde 1974, AMC Elettronica se ha ocupado de los sistemas de seguridad y es uno de los principales fabricantes italianos de alarmas antirrobo, sistemas de alarma antirrobo y alarmas. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

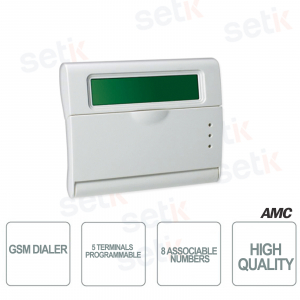

VOX_OUT – TWO-WAY REMOTE-MANAGED GSM DIALLER

AMC

The VOXOUT by AMC Elettronica is a bidirectional GSM telephone dialer, ideal for security and automation applications. Designed to ensure timely and reliable communication, it complies with the EN 50136-1-1 standard (Grade 2, ATS 2) and allows the sending of voice or SMS notifications in the event of an alarm, in addition to remote management via call or number recognition. Thanks to the possibility of freely configuring the terminals as inputs or outputs, the device adapts perfectly to different types of systems. It also offers advanced functions such as environmental listening, PSTN line simulation, periodic tests and residual credit monitoring. Management is via user, technician and reset codes, ensuring complete and safe control of the system.

Main features:

  • 5 terminals configurable as inputs or outputs
  • Up to 8 numbers for events and 200 for remote commands
  • Integrated environmental listening
  • Management via SMS, voice call or ring
  • PSTN line simulation and caller ID recognition
  • Send periodic tests and SIM credit check
  • Power supply 13.8 Vdc – Dimensions: 120 x 140 x 35 mm

Further details

✅ 5 configurable terminals : can be programmed as inputs or outputs, offering flexibility in installation.
✅ Environmental listening: built-in function to monitor the surrounding environment
✅ Remote management: activation of outputs via voice call, SMS or ring with telephone number recognition.
✅ Number storage:
  • 8 telephone numbers that can be associated with specific events.
  • 200 telephone numbers dedicated to remote activation of outputs.
✅ Security codes:
  • 12 user codes.
  • 1 technical code.
  • 1 code for resetting calls.
✅ Advanced Features:
  • Sending periodic tests (life tests).
  • Monitoring the remaining credit of the SIM.
  • PSTN telephone line simulation.
  • Caller ID recognition.
✅ Programming:
  • From integrated keyboard.
  • Via SMS.
  • Management via voice menu.

✅ Compatibility: Supports CONTACT ID digital protocols for integration with alarm control panels.
✅ Power supply: 13.8 Vdc.
✅ Dimensions: 120 x 140 x 35 mm.

Technical data sheet

Model VOXOUT
EN 50136 -1-1 / GRADE 2 / CLASS 2 - ATS 2 Yes
Number of entrances / exits 5
Telephone numbers 8
Message times 20''
DTMF decoding Yes
Send SMS Yes
Keyboard programming Yes
Voice menu programming user
Programming by SMS Yes
SIM card expiration notice Yes
SIM card remaining credit alert Yes
Telephone line simulation Yes
Caller ID recognition Yes
Diet 13.8Vdc
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
