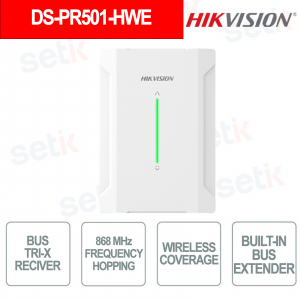

Hikvision 868 MHz Wireless Tri-X Bus Receiver with RS-485 Extender and 32 Sensor Support

Hikvision 868 MHz Wireless Tri-X Bus Receiver with RS-485 Extender and 32 Sensor Support

 
-35% nuevo

DS-PR501-HWE - The Tri-X Bus receiver is designed to integrate wireless devices into wired intrusion detection systems, thanks to encrypted two-way 868 MHz RF communication with frequency hopping that guarantees maximum security and stability. It supports up to 32 wireless detectors, 12 sirens and 64 keyfobs , offering wide scalability and system flexibility. It integrates a half-duplex RS-485 bus with extender function , ideal for extending coverage and improving system reliability, also ensuring a wireless range of up to 1600 meters in open fields for advanced professional installations. Hikvision

Technical Data Sheet

referencia : DS-PR501-HWE

brand : Hikvision

EAN: 6942160496504

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-PR501-HWE – BUS TRI-X RECIVER (868MHz)

Hikvision

The Hikvision DS-PR501-HWE Bus Tri-X receiver is an advanced solution for intrusion detection systems that allows the integration of wireless devices thanks to the bidirectional encrypted Tri-X technology at 868 MHz with frequency hopping , ensuring secure and stable communications. It supports up to 32 detectors, 12 sirens and 64 wireless keyfobs , offering high scalability, while the range of up to 1600 meters in open fields ensures extended coverage. The half-duplex RS-485 bus with integrated extender function improves reliability and expansion of the system, making it ideal for professional indoor installations.

Main features:

- 868 MHz bidirectional encrypted Tri-X technology with frequency hopping

- Support up to 32 detectors, 12 sirens and 64 wireless devices

- Wireless range up to 1600 m in open field

- RS-485 bus with extender function for system expansion

- Easy integration with Hikvision intrusion detection systems

Further details

✅ Peripherals:
The receiver supports a wide range of wireless devices with up to 32 detectors, 12 sirens, 8 keypads/tag readers and 64 remote controls , ensuring maximum scalability and complete management of the intrusion detection system in professional contexts.
✅ Bus interconnection :
Integration via half-duplex RS-485 bus with bus extender function , which allows you to extend communication over long distances and improve system reliability , using 4-wire wiring for structured installations.
✅ Wireless interconnection :
Wireless communication based on 868 MHz encrypted bidirectional Tri-X technology with frequency hopping , offering secure and stable transmissions up to 1600 meters in open fields , ideal for extended coverage and complex environments.

Technical data sheet

DS-PR501-HWE
Peripherals
Wireless detectors 32
Wireless sounders 12
Wireless keypad / tag readers 8
Wireless keyfob 64

Bus interconnection
Bus extender Yes
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Wireless interconnection
Frequency 868.0-868.6 MHz
Wireless technology Tri-X, 2-way encrypted wireless, radio frequency hopping
Transmission modulation 2GFSK
Transmission range 1600 m (open area)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 90 mA @12VDC
Max. current 150 mA @12VDC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 110 × 155 × 31 mm
Weight 208 g
Tamper-proof Front and Rear
Installation method Wall mount
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
