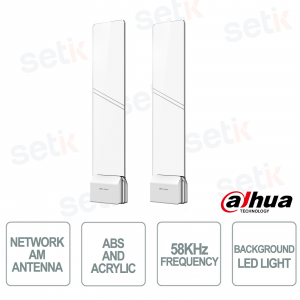

ISC-EAA8-C208-P 58kHz Clear Acrylic Network AM Anti-Theft Antenna with CCTV and DSS Pro - Dahua

ISC-EAA8-C208-P 58kHz Clear Acrylic Network AM Anti-Theft Antenna with CCTV and DSS Pro - Dahua

 

ISC-EAA8-C208-P - is an AM network anti-theft antenna designed for the protection of shops, supermarkets, pharmacies and shopping malls, featuring an elegant transparent acrylic design with integrated multicolor LED lighting. Thanks to 58 kHz Acousto-Magnetic technology, it offers a detection distance of up to 2.4 meters per tag and a powerful recognition capacity for anti-theft labels. The advanced anti-interference , automatic phase adjustment and CCTV connection functions help reduce theft and improve store security. Equipped with an RJ45 network interface , remote management via DSS Pro , cloud services and an integrated OLED display, it guarantees simple configuration, continuous monitoring and maximum operational reliability. Dahua

Technical data sheet

referencia : ISC-EAA8-C208-P

brand : Dahua

EAN: 6923172576682

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ISC-EAA8-C208-P | AM ANTI-THEFT ANTENNA - 58KHz NETWORK

Dahua

The Dahua ISC-EAA8-C208-P is a 58 kHz AM network anti-theft antenna designed for shops, supermarkets, pharmacies and shopping malls, with an elegant transparent acrylic structure and integrated multicolor LED lighting. Thanks to the detection distance of up to 2.4 meters , advanced automatic phase adjustment technology and anti-interference functions, it guarantees precise detection of anti-theft labels and tags. The CCTV connection, remote management via DSS Pro , WEB interface, integrated OLED display and RJ45 network connectivity ensure complete and professional control. Ideal for reducing losses due to theft and improving store security.

Main specifications:

- AM 58 kHz technology

- Detection distance up to 2.4 m

- Clear acrylic design

- Integrated RGB LED

- 1.3" OLED display

- Advanced anti-interference

- Automatic phase adjustment

- CCTV connection

- RJ45 port

- DSS Pro and WISS Management

- Cloud Services

- Alarm up to 90 dB

Further details

✅ EAS Label and Tag Detection :
58 kHz Acousto-Magnetic technology accurately detects tamper-evident labels and tags within the protected area. If an undeactivated item passes through, the system immediately activates an audible and visual alarm , helping reduce theft and shrinkage in stores.
✅ Anti-inference Adjustment :
The system integrates advanced anti-interference functions with sensitivity adjustment, alarm thresholds , antenna gain , and real-time electromagnetic interference monitoring. This enables stable and reliable performance even in complex environments with a high density of electronic equipment.
✅ Phase Adjustment Technology:
 Multi-phase scanning technology enables accurate tag and label recognition from any direction. Automatic or manual phase adjustment improves detection accuracy, reduces blind spots, and optimizes the effectiveness of the anti-theft system.
✅ Perimeter Protection:
The Perimeter Protection feature detects events such as intrusion and tripwire crossings by distinguishing between people and vehicles, increasing alarm reliability and limiting false detections caused by irrelevant elements.
✅ Multiple Connection Methods:
The modular architecture allows a primary antenna to connect up to two replica antennas simultaneously, creating customizable protection systems for different sized entrances. RX , TX , and TR modes offer maximum configuration flexibility for any commercial environment.
✅ Background LED Light :
 The integrated 5-color LED lighting (white, blue, green, purple, and pink) enhances the modern transparent acrylic design, improving the aesthetic impact of the point of sale and allowing the antenna to also be used as a visual and promotional communication element.
✅ Performance :
Thanks to the detection distance of up to 2.4 metres , the alarm adjustable up to 90 dB , management via DSS Pro , WISS , WEB interface, Cloud services and CCTV connection, the system guarantees high operational performance, remote control and maximum protection against theft attempts.

Technical data sheet

MODEL ISC-EAA8-C208-P
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type Primary antenna
Adaptability A single primary antenna can connect to two replica antennas simultaneously
Sound and Light Alarm Primary and Replica Antenna
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Ports
Power Interface DSS Pro, Configtool, WISS
Regular Parameters
Shell Material ABS and acrylic
Shell Color Transparent and white
Input Voltage 220 – 240 VAC @ 50 Hz / 60 Hz
Output Voltage 24 VAC / 3 A
Maximum Power Consumption 25 W
Typical Power Consumption 20 W
Overall Exterior Size 1521 mm × 360 mm × 134 mm (59.9'' × 14.2'' × 5.3'')
Packing Size of Primary / Replica Antenna 1665 mm × 460 mm × 210 mm (65.6'' × 18.1'' × 8.3'')
Gross Weight 21.0 kg (46.29 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
