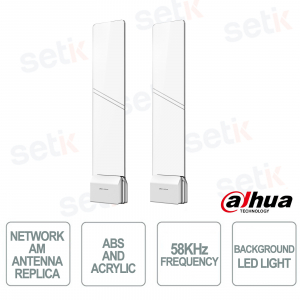

ISC-EAA8-C201-R | AM ANTI-THEFT ANTENNA - REPLICA AT 58KHz

Dahua

The Dahua ISC-EAA8-C201-R is a 58 kHz AM replica EAS antenna designed to extend the coverage of EAS systems in retail stores, ensuring precise detection of EAS labels and tags. The elegant transparent acrylic design with integrated multicolor LED lighting fits perfectly into modern commercial environments. Thanks to anti-interference , multi-phase scanning , and audible and visual alarm technologies up to 90 dB , it ensures high performance even in complex environments. Compatible with the primary antennas of the ISC-EAA8 series, it is an ideal solution for supermarkets, clothing stores, pharmacies, and shopping malls that want to increase security and reduce losses from theft.

Main specifications:

- AM 58 kHz technology

- Replica Antenna

- Tag detection up to 2m

- Clear acrylic design

- Integrated RGB LED

- Alarm up to 90 dB

- Multi-phase scanning

- Advanced anti-interference

- RX/TX/TR mode

- Compatible with ISC-EAA8 series

- Vertical installation

- Ideal for retail and large-scale distribution

Further details

✅ EAS Label and Tag Detection :
58 kHz Acousto-Magnetic (AM) technology ensures precise detection of EAS labels and tags within the protected area. When an undeactivated item passes through the gate, the system immediately activates an audible and visual alarm , helping prevent theft and inventory loss.
✅ Anti-inference Adjustment :
Advanced anti-interference functions allow you to adjust sensitivity , detection thresholds , antenna gain and transmission mode, ensuring stable performance even in environments with high electromagnetic interference.
✅ Phase Adjustment Technology:
 Multi-phase adjustment technology improves tag recognition from any direction. With automatic or manual phase synchronization, the system optimizes detection accuracy and reduces the risk of missed detections.
✅ Multiple Connection Methods:
The ISC-EAA8-C201-R Replica Antenna can be integrated into systems consisting of one primary antenna and up to two replica antennas , enabling the creation of customized anti-theft gates for different sized entrances and high customer flows.
✅ Background LED Light :
 The integrated 5-color LED lighting (white, blue, green, purple, and pink) enhances the modern transparent acrylic design, improving the aesthetic impact of the point of sale and allowing the antenna to also be used as a visual and promotional communication element.
✅ Performance :
With the ability to detect tags up to 2 meters and labels up to 1.8 meters , an adjustable alarm up to 90 dB , advanced scanning technology and high resistance to interference, this replica antenna guarantees reliable performance and effective protection against theft attempts.

Technical data sheet

MODEL ISC-EAA8-C201-R
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type Antenna replica
Adaptability A single primary antenna can connect to two replica antennas simultaneously
Sound and Light Alarm Primary and Replica Antenna
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Ports
Power Interface N/A
Regular Parameters
Shell Material ABS and acrylic
Shell Color Transparent and white
Input Voltage 24 VAC @ 50 Hz / 60 Hz
Output Voltage N/A
Maximum Power Consumption 23 W
Typical Power Consumption 18 W
Overall Exterior Size 1521 mm × 360 mm × 134 mm (59.9'' × 14.2'' × 5.3'')
Packing Size of Primary / Replica Antenna 1665 mm × 460 mm × 210 mm (65.6'' × 18.1'' × 8.3'')
Gross Weight 18.5 kg (40.79 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
