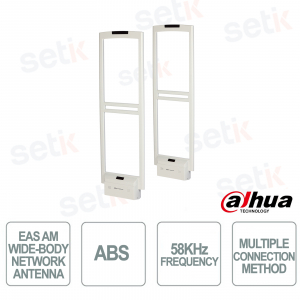

ISC-EAA2X-C208-P | 58KHz AM NETWORK EAS ANTENNA

Dahua

The Dahua ISC-EAA2X-C208-P is a 58 kHz AM EAS anti-theft antenna with advanced network technology, designed to ensure maximum protection of supermarkets, shops, pharmacies and shopping malls. Thanks to the long detection distance of up to 2.4 meters , remote management via DSS Pro , WISS and TCP/IP connectivity, it ensures constant system monitoring. Intelligent anti-interference , automatic phase synchronization, CCTV integration and acoustic and light alarm functions up to 90 dB improve the effectiveness of theft prevention. The wide-body design and advanced signal processing ensure high performance and a significant reduction in false alarms.

Main specifications:

- AM 58 kHz technology

- Detection up to 2.4 m

- WISS license included

- CCTV Integration

- TCP/IP connectivity

- DSS Pro Management

- Advanced anti-interference

- Automatic phase synchronization

- Alarm up to 90 dB

- High performance wide body

- Web Configuration

- Support up to 2 replica antennas

Further details

✅ EAS Label and Tag Detection :
58 kHz Acousto-Magnetic (AM) technology accurately detects anti-theft labels and tags within the protected area. If an unauthorized item passes through, the system immediately activates an audible and visual alarm , helping reduce losses and improve store security.
✅ Stable Hardware Performance:
The antenna integrates a high-performance transmit driver and a multi-stage amplifier , ensuring stable operation over time without temperature variations. This architecture ensures continuous operational reliability and consistent performance even under intensive use.
✅ Strong Anti-interference Ability:
 Thanks to advanced sensitivity adjustment and noise filtering systems, the device is able to effectively counteract environmental and electromagnetic interference , maintaining high detection accuracy even in complex and crowded environments.
✅ Strong Signal Processing Capability:
 The unique signal processing and filtering algorithm enables accurate recognition of anti-theft labels, reducing the number of false alarms and improving the overall effectiveness of the loss prevention system.
✅ Multiple Connection Methods:
The Primary and Replica antennas both integrate transceiver functionality and can be flexibly configured to accommodate different sized entrances. A Primary antenna can connect up to two Replica antennas , enabling the creation of customized anti-theft systems.
✅ Performance :
With a detection distance of up to 2.4 meters for tags and up to 2 meters for labels , an adjustable alarm up to 90 dB , CCTV integration, management via DSS Pro , WISS and TCP/IP connectivity, this antenna offers high performance for the protection of supermarkets, pharmacies, clothing stores and shopping centers.

Technical data sheet

MODEL ISC-EAA2X-C208-P
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Sound and Light Alarm Yes
Network Communication Protocol N/A
Open Protocols N/A
Supporting Software DSS Pro, Configtool, WISS
Configuration on Webpage N/A
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Regular Parameters
Shell Material ABS
Shell Color White
Input Voltage 220 – 240 VAC @ 50 Hz / 60 Hz
Output Voltage 24 VAC / 3 A
Maximum Power Consumption 25 W
Typical Power Consumption 20 W
Overall Exterior Size 1580 mm × 500 mm × 125 mm (62.20'' × 19.69'' × 4.92'')
Packing Size of Primary / Replica Antenna 1650 mm × 560 mm × 230 mm (64.96'' × 22.05'' × 9.06'')
Gross Weight 10 kg (22.05 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
