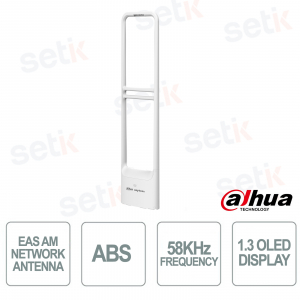

ISC-EAA2-C201-R EAS AM 58 kHz Replica Antenna for Retail EAS Systems - Dahua

ISC-EAA2-C201-R EAS AM 58 kHz Replica Antenna for Retail EAS Systems - Dahua

 

ISC-EAA2-C201-R - is an AM EAS replica antenna designed to extend EAS systems with precise 58 kHz label and tag detection , ensuring coverage up to 2.4 meters depending on the system configuration. Thanks to multi-phase adjustment technology and high resistance to interference , it offers stable performance even in complex retail environments. Equipped with an audible and light alarm , it supports connection with the primary antenna of the ISC-EAA2 series, ensuring simple and effective expansion for supermarkets, shops, pharmacies and shopping malls. Dahua

Technical data sheet

referencia : ISC-EAA2-C201-R

brand : Dahua

EAN: 6923172501851

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ISC-EAA2-C201-P | EAS AM ANTI-THEFT REPLICA ANTENNA

Dahua

The Dahua ISC-EAA2-C201-R is a 58 kHz AM EAS replica antenna designed to expand EAS systems, offering precise label and tag detection with coverage up to 2.4 meters depending on system configuration. Thanks to multi-phase tuning technology and high resistance to interference , it ensures stable performance even in the most challenging retail environments. Equipped with an audible and visual alarm and compatible with the ISC-EAA2 series primary antennas, it represents a reliable solution for supermarkets, clothing stores, pharmacies, and shopping malls.

Main specifications:

- Technology: EAS AM 58 kHz replica antenna

- Detection: Up to 2.4m for AM tag

- Alarm: Adjustable acoustic and luminous

- Interference: Advanced multi-phase regulation

- Compatibility: With ISC-EAA2 primary antennas

- Expandability: Up to 2 replica antennas per system

- Installation: Vertical mounting

- Applications: Ideal for shops, supermarkets and retail

Further details

✅ EAS Label and Tag Detection :
58 kHz AM EAS technology ensures precise detection of anti-theft labels and tags , triggering an adjustable audible and visual alarm when a protected item passes through the detection zone, helping to reduce theft and shrinkage at the point of sale.
✅ Anti-interference Adjustment:
The system integrates advanced interference adjustment functions, allowing you to configure sensitivity , alarm threshold , antenna gain , transmission mode and real-time interference monitoring, ensuring stable operation even in environments with high electromagnetic disturbance.
✅ Phase Adjustment Technology:
 Innovative multi-phase scanning technology enables accurate label and tag recognition from any direction , improving system coverage and reducing the number of required antennas. Automatic or manual phase adjustment further optimizes performance and can be monitored via a web interface .
✅ Multiple Connection Methods:
The antenna supports RX, TX and TR modes and can be connected to a primary antenna that manages up to 2 replica antennas , allowing for the creation of modular, expandable systems that can be easily adapted to any size store.
✅ Performance :
Designed to ensure professional performance , it offers a detection distance of up to 2.4 meters , an adjustable alarm of up to 90 dB , high immunity to interference , low energy consumption and full compatibility with CCTV systems, DSS Pro and remote management via network, ensuring effective protection of goods.

Technical data sheet

MODEL ISC-EAA2-C201-R
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type Antenna replica
Adaptability A Single primary antenna can connect to two replica antennas simultaneously
Sound and Light Alarm Primary and Replica Antenna
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Port
TR Board Port (CH1, CH2, CH3) NA
CCTV Port NA
Network Interface NA
Power Interface NA
Power Interface NA
Power Interface NA
Regular Parameters
Shell Material ABS
Shell Color White
Input Voltage 24 VAC @ 50 Hz / 60 Hz
Output Voltage NA
Maximum Power Consumption 25 W
Typical Power Consumption 20 W
Overall Exterior Size 1500 mm × 400 mm × 120 mm (59.06'' × 15.75'' × 4.72'')
Packing Size of Primary / Replica Antenna 1590 mm × 490 mm × 200 mm (62.60'' × 19.30'' × 7.87'')
Gross Weight 7 kg (15.43 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
