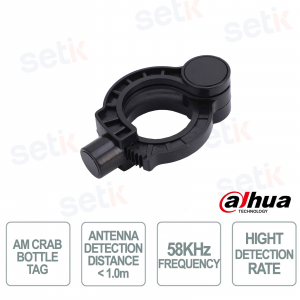

ISC-ETA5-B040 AM 58 kHz Crab Bottle Tag for Bottles - Dahua

ISC-ETA5-B040 AM 58 kHz Crab Bottle Tag for Bottles - Dahua

 

The ISC-ETA5-B040 is a 58 kHz Acousto-Magnetic (AM) anti-theft tag with Crab Bottle Tag design, designed for the protection of wine, spirits and other beverage bottles at points of sale. Thanks to the robust locking mechanism , high detection capacity and high-resistance ABS structure, it offers effective protection against theft without damaging the product. Its compact and lightweight design and the possibility of being reused make it a reliable, environmentally friendly and economical solution, perfectly compatible with Dahua AM anti-theft systems. Dahua

Technical data sheet

referencia : ISC-ETA5-B040

brand : Dahua

EAN: 6939554962301

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ISC-ETA5-B040 | AM CRAB BOTTLE TAG B040

Dahua

The Dahua ISC-ETA5-B040 is a 58 kHz Acousto-Magnetic (AM) anti-theft tag with Crab Bottle Tag design, designed for the protection of bottles of wine, spirits and other beverages at points of sale. Thanks to the robust locking system , high detection capacity and high-resistance ABS structure, it guarantees effective protection against theft without compromising the integrity of the bottle. The compact and lightweight design , combined with the possibility of being reused , makes it a reliable, ecological and economical solution, perfectly compatible with Dahua AM anti-theft systems.

Main specifications:

  • Technology: Acousto-Magnetic (AM) 58 kHz
  • Application: Wine, spirits and beverage bottles
  • Design: Compact Crab Bottle Tag
  • Detection: High anti-theft effectiveness
  • Locking: Heavy duty lock
  • Reuse: Reusable and eco-friendly
  • Material: High strength ABS
  • Compatibility: Dahua AM anti-theft systems

Further details

✅ Suitable for Bottles :
Designed specifically for the protection of wine, spirits and other beverage bottles , the Crab Bottle Tag ensures a secure and durable attachment , preventing unauthorized removal and ensuring maximum protection of merchandise on display at the point of sale.
✅ High Reuse Rate:
Thanks to the possibility of being reused after unlocking , it represents an ecological, economical and long-lasting solution, ideal for reducing management costs and optimising the use of anti-theft systems over time.
✅ Good Detection Effect:
The 58 kHz Acousto-Magnetic (AM) technology ensures a high detection rate and excellent anti-theft effectiveness, offering reliable protection against bottle theft attempts.
✅ Performance :
The compact and lightweight design , robust locking mechanism , high-strength ABS structure and full compatibility with Dahua AM systems ensure high performance , ease of use and constant protection in supermarkets, wine shops and specialized shops.

Technical data sheet

MODEL ISC-ETA5-B040
Performance
Technology Acousto-Magnetic (AM)
Detection Frequency 58 kHz ± 0.5 kHz
Antenna Detection Distance ≤ 1.0 m (Based on system performance)
Shell Material Acrylonitrile Butadiene Styrene (ABS)
Lock Strength Standard
Certifications RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
General
Color Black
Length 70 mm (2.76'') ± 0.5 mm (0.02'')
Thickness 22 mm (0.87'') ± 0.5 mm (0.02'')
Maximum Adaptive Bottleneck Diameter 32 mm (1.26'')
Minimum Adaptive Bottleneck Diameter 27 mm (1.06'')
Packaging 500 Tags per Carton
Carton Dimension 380 mm × 300 mm × 290 mm (14.96'' × 11.81'' × 11.42'')
Carton Weight 9.0 kg (19.84 lb)
Minimum Order Quantity 500 pcs
Environmental Constraints
Temperature 0 °C–50 °C (32 °F to 122 °F)
Humidity 20%-60% (RH)
