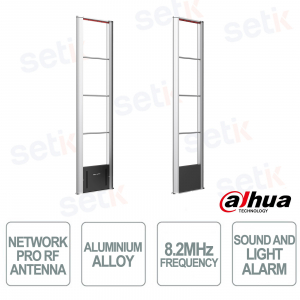

ISC-EAR6-C108-G02 8.2 MHz RF Anti-Theft Antenna with RJ45 Network and CCTV Integration - Dahua

ISC-EAR6-C108-G02 8.2 MHz RF Anti-Theft Antenna with RJ45 Network and CCTV Integration - Dahua

 

ISC-EAR6-C108-G02 - The anti-shoplifting antenna is a professional 8.2 MHz RF EAS solution designed to offer high-precision detection of RF tags and labels up to 2 meters between antennas, ensuring high protection against theft. Equipped with an adjustable audible and light alarm , 98-level configurable sensitivity , RJ45 network connectivity and integration with CCTV systems , it ensures reliable performance even in environments with strong electromagnetic interference. The robust aluminum alloy structure and remote management via DSS Pro, ConfigTool and WISS make it ideal for supermarkets, shops, pharmacies and shopping malls. Dahua

Technical data sheet

referencia : ISC-EAR6-C108-G02

brand : Dahua

EAN: 6923172579614

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ISC-EAR6-C108-G02 | RF ANTI-THEFT ANTENNA

Dahua

The Dahua ISC-EAR6-C108-G02 EAS antenna is a professional 8.2 MHz RF EAS solution designed to ensure precise detection of RF labels and tags with up to 2 meters of coverage between antennas. Thanks to anti-interference technology , adjustable audible and light alarm , 98-level sensitivity configurable and RJ45 network connectivity , it offers high performance and remote management via DSS Pro, ConfigTool and WISS . The robust aluminum alloy structure with support for CCTV integration is the ideal choice for supermarkets, shops, pharmacies and shopping malls.

Main specifications:

  • Technology: RF 8.2 MHz
  • Detection: Tags and labels up to 2m
  • Alarm: Adjustable acoustic and luminous sound up to 90 dB
  • Sensitivity: Adjustable up to 98 levels
  • Connectivity: RJ45, HTTP/TCP-IP and Web management
  • Integration: CCTV, DSS Pro, ConfigTool and WISS
  • Material: Durable aluminum alloy
  • Installation: Vertical mounting for retail environments

Further details

✅ EAS Label and Tag Detection :
The system ensures precise detection of 8.2 MHz RF labels and tags , with coverage of up to 2 meters between antennas, ensuring reliable anti-theft control and reduced losses at the point of sale.
✅ Sound and Light Alarm:
The TX and RX antennas integrate a synchronized acoustic and luminous alarm , with adjustable volume and tone , allowing immediate notification of the passage of protected products and timely intervention by personnel.
✅ Anti-inference Adjustment:
 Thanks to the sensitivity adjustment up to 98 levels , the configuration of alarm thresholds, antenna gain and real-time interference indicator, the system offers high performance even in environments with strong electromagnetic interference .
✅ CCTV Linkage:
The CCTV integration function automatically sends the alarm signal to the video surveillance cameras, enabling automatic recording of events and facilitating subsequent monitoring and verification.
✅ Performance :
 Professional RF technology, connection of one TX antenna to up to 2 RX antennas , management via DSS Pro platform , support for cloud services , firmware updates and low power consumption ensure stable, efficient and reliable operation over time.
✅ Ports :
The device has an RJ45 port for network connection, alarm output for CCTV connection , support for HTTP/TCP-IP protocols, SDK for integration with third-party systems and compatibility with DSS Pro, ConfigTool and WISS for remote management and configuration.

Technical data sheet

MODEL ISC-EAR6-C108-G02
Performance
Technology Radio Frequency (RF)
Detection Frequency Band 8.2 MHz
Detection Distance of EAS Labels 1.8 m - 2.0m (5.91 ft - 6.56 ft)(distance between 2 antennas) *depending on environment
Detection Distance of EAS Tags 1.4 m - 1.8m (4.59 ft - 5.91ft) (distance between 2 antennas) *depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type TX and RX Antenna
Adaptability 1 TX antenna can connect to 2 RX antennas simultaneously. Supports the cascading of multiple antennas.
Sound and Light Alarm TX Antenna and RX Antenna
Signal Strength Display RX Antenna
Certification
Certifications CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Ports
Alarm Output Port For Camera Linkage
Sensitivity Adjustment Button Adjustable Multi-level Sensitivity
Network Port RJ45
Network Protocol HTTP, TCP/IP
Open Protocol SDK
Supporting Software DSS Pro, Configtool, WISS
Regular Parameters
Shell Material Aluminum Alloy
Shell Color Silver + Gray
Input Voltage 100 – 240 VAC @ 50 Hz / 60 Hz
Output Voltage 24 VDC
Maximum Power Consumption 11 W
Typical Power Consumption 9 W
Packing Size of Primary / Replica Antenna 1650 mm × 500 mm × 240 mm (64.96" × 19.69" × 9.45")
Total Weight 11.5 kg (25.35 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 5% – 95% (RH)
Installation Vertical pole mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
