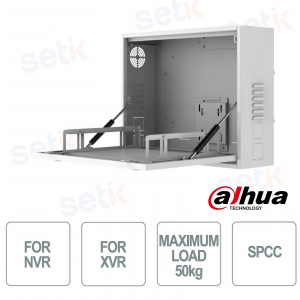

PFC300N | WHITE WALL-MOUNTED ALL-IN-ONE CCTV NETWORK CABINET

The Dahua PFC300N wall-mounted cabinet is a complete and reliable solution for video surveillance systems, designed from 1.2mm SPCC galvanized steel for strength and durability. Compatible with monitors, UPS, NVRs, and XVRs, it supports wall-mounted installation and a 90° front opening for easy maintenance. It features a European PDU with 4 outlets, a 220V fan, a door alarm output, and a temperature controller, ensuring efficiency, safety, and convenience .
Main specifications:
- 1.2mm SPCC galvanized steel frame, CE certified
- Compatibility with monitors, UPS, NVR and XVR
- Wall installation with door that opens at 90°
- European PDU with 4 integrated sockets and 220V fan
- Door alarm output and temperature control
Further details

Technical data sheet
PFC300N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
SPCC (1.2 mm) (0.05") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
220–240 V, 50/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Operating Current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–35 °C to +70 °C (–31 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
17 kg ± 1 kg (37.48 lb ± 2.20 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
18.5 kg ± 1 kg (40.79 lb ± 2.20 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

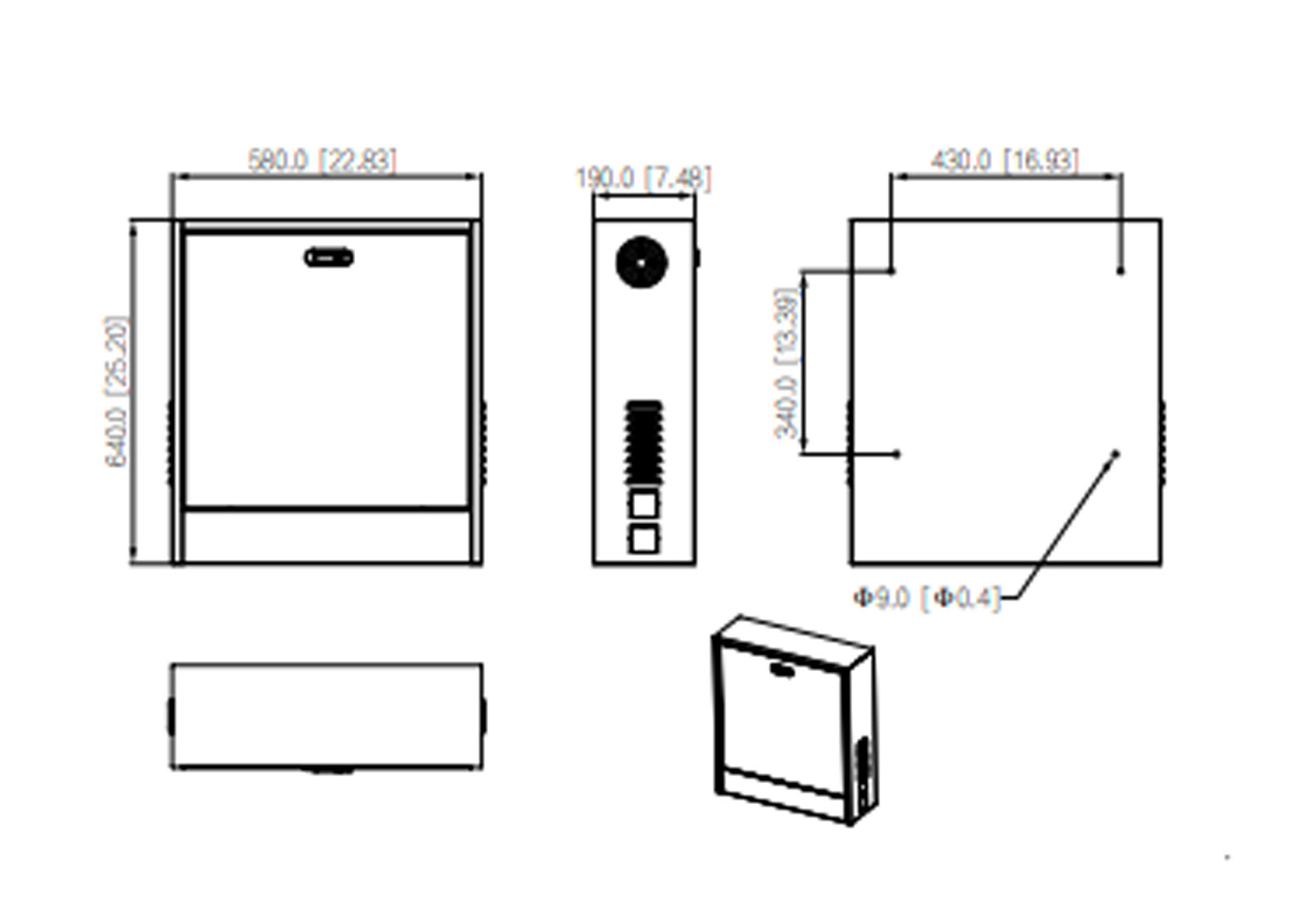

Product Dimensions (W×D×H) |
580 mm × 280 mm × 640 mm (22.83" × 11.02" × 25.20") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions (W × H × D) |
680 mm × 290 mm × 750 mm (26.77" × 11.42" × 29.53") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
there is |
