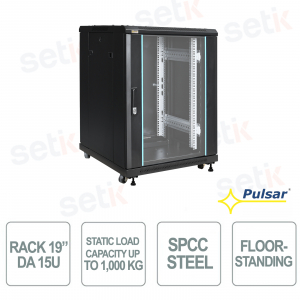

RS1566 19" 15U 600x600 Floorstanding IP20 RACK Cabinet for CCTV and LAN - Pulsar

RS1566 19" 15U 600x600 Floorstanding IP20 RACK Cabinet for CCTV and LAN - Pulsar

 
-58%

RS1566 - The 15U RACK 19" cabinet is a professional floor-standing solution, ready for assembly, ideal for integrating CCTV, LAN, alarm systems, RTV and automation equipment in medium and large installations. With external dimensions of 600 × 855 × 600 mm and a mounting depth of 360 mm , it offers a robust SPCC steel structure with a 5 mm tempered glass front door, removable side panels and a rear door. It supports a static load of up to 1000 kg , has pre-arranged ventilation, cable channels, 4 wheels and 4 leveling feet , ensuring practicality, protection and professional organisation of network and security devices. It is designed for indoor use with an IP20 protection rating and is compliant with the RoHS directive. Pulsar

Technical data sheet

referencia : RS1566

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

RS1566 | 15U FLOOR-STANDING RACK CABINET

Dahua

The 15U Pulsar RS1566 19" RACK cabinet is designed for the professional installation of CCTV, LAN, RTV, AC equipment and I&HAS security systems in medium and large companies. The floor-standing structure measures 600 × 855 × 600 mm and offers a useful mounting depth of 360 mm , with adjustable front and rear RACK guides. Made of SPCC cold-rolled steel with a RAL 9004 finish, it integrates a 5 mm tempered glass front door, removable side panels and a rear door. It supports a static load of up to 1000 kg , has provision for ventilation, cable ducts, locks and is supplied with 4 wheels and 4 levelling feet . Suitable for indoor use, it guarantees IP20 protection , RoHS compliance and an orderly and safe management of network and video surveillance equipment.

Main specifications:

  • Format: RACK 19", 15U
  • Dimensions: 600 × 855 × 600 mm
  • Mounting depth: 360 mm
  • Static load: up to 1000 kg
  • Structure: SPCC steel, RAL 9004
  • Front door: 5 mm tempered glass
  • Ventilation: Prepared for RAWP unit
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RS1566 RACK cabinet guarantees high support capacity, with a maximum static load of 1000 kg when installed on the levelling feet , making it suitable for housing professional equipment for CCTV, LAN, security and telecommunications .
✅ Structure:
Made of sturdy SPCC cold rolled steel , it integrates 2 mm RACK guides, 1.5 mm horizontal guides and 1.2 mm welded frame with RAL 9004 finish; it also features a 5 mm tempered glass front door , removable side panels and a hinged rear door.
✅ Ventilation:
Designed to promote proper air circulation , it features ventilation holes on the front door and on the top and bottom panels; the top panel also allows the installation of up to 2 RAWP fan units , improving the thermal management of the installed equipment.
✅ Mobility :
The cabinet is supplied with 4 non-locking castors , useful for making it easier to move during installation, and 4 levelling feet , designed to ensure stable positioning and allow the support of a static load of up to 1000 kg .

Technical data sheet

MODEL RS1566
Mounting dimensions 19" x 15U x 360 mm
Dimensions 600 x 855 x 600 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, self-assembly
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ-S, same code)
rear door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, 2mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 brakeless casters, 4 leveling legs
- possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
