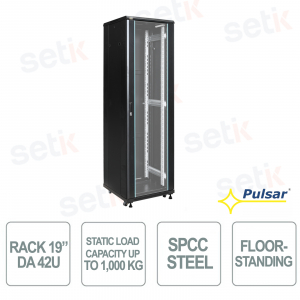

RS4266 - The 42U RACK 19" cabinet is a professional floor-standing solution, ready for assembly, ideal for housing CCTV, LAN, RTV, AC and I&HAS systems . With external dimensions of 600 × 2055 × 600 mm and a mounting depth of 360 mm , it has adjustable front and rear RACK guides. The SPCC RAL 9004 cold-rolled steel structure integrates a 5 mm tempered glass front door , removable side panels and a hinged rear door. It supports a static load of up to 1000 kg , offers cable ducts, provision for up to 2 RAWP ventilation units , 4 wheels and 4 leveling feet. Designed for indoor use, it guarantees IP20 protection and RoHS compliance. Pulsar

Technical data sheet

referencia : RS4266

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

RS4266 | 42U 19" FLOOR-STANDING RACK CABINET

Dahua

The 42U Pulsar RS4266 19" RACK cabinet is a professional, ready-to-assemble floor-standing solution designed to integrate CCTV, LAN, RTV, AC and I&HAS systems . With external dimensions of 600 × 2055 × 600 mm and a mounting depth of 360 mm , it features adjustable front and rear RACK rails. The sturdy SPCC RAL 9004 steel structure integrates a 5 mm tempered glass front door , removable side panels and a rear door. It supports a static load of up to 1000 kg and offers pre-arranged ventilation, cable channels, 4 wheels and 4 levelling feet . For internal installations it guarantees IP20 protection and RoHS compliance.

Main specifications:

  • Format: RACK 19" – 42U
  • Dimensions: 600 × 2055 × 600 mm
  • Depth: 360 mm
  • Static load: 1000 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: up to 2 RAWP
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RS4266 RACK cabinet is designed to support a maximum static load of 1000 kg when placed on the levelling feet , offering high stability for the installation of professional CCTV, LAN, RTV and security systems equipment .
✅ Structure:
Made of SPCC cold rolled steel , it features 2 mm RACK guides , 1.5 mm horizontal guides and a 1.2 mm welded frame with RAL 9004 finish ; it integrates a 5 mm tempered glass front door , removable side panels and a hinged rear door.
✅ Ventilation:
Airflow management is aided by ventilation holes on the front door and on the top and bottom panels; up to 2 RAWP fan units can also be installed on the top panel , improving heat dissipation of RACK equipment.
✅ Mobility :
The cabinet is supplied with 4 non-locking wheels to facilitate movement and positioning during installation and with 4 levelling feet , which ensure stability and allow it to correctly support the static load of up to 1000 kg .

Technical data sheet

MODEL RS4266
Mounting dimensions 19" x 42U x 360mm
Dimensions 600 x 2055 x 600 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, self-assembly
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ-S, same code)
rear door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, 2mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
