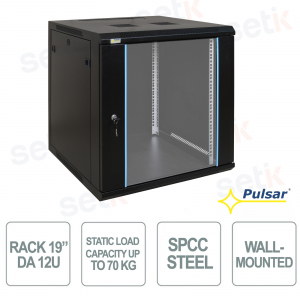

RW1266 - The 12U RACK 19" cabinet is a fully assembled wall-mounted solution, ideal for organizing CCTV, LAN, RTV, AC and I&HAS systems in homes and small businesses. With external dimensions of 600 × 636 × 600 mm and a mounting depth of 354 mm , it features adjustable front and rear RACK rails. The SPCC RAL 9004 steel structure integrates a 5 mm tempered glass front door , reversible with right or left opening and equipped with a lock. It supports a static load of up to 70 kg , offers top and bottom cable glands and provision for ventilation on the top panel. Designed for indoor use, it guarantees IP20 protection and RoHS compliance. Pulsar

Technical data sheet

referencia : RW1266

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

RW1266 | 12U 19" WALL-MOUNTED RACK CABINET

Dahua

The 12U Pulsar RW1266 19" RACK cabinet is a professional, fully assembled wall-mounted solution, ideal for integrating CCTV, LAN, RTV, AC and I&HAS systems in homes and small businesses. With external dimensions of 600 × 636 × 600 mm and a mounting depth of 354 mm , it has adjustable front and rear RACK rails. The SPCC RAL 9004 steel structure integrates a 5 mm tempered glass front door with lock and reversible right/left opening. It supports a static load of up to 70 kg and has top and bottom cable glands and 2 ventilation holes of 105 × 105 mm . Designed for indoor use, it offers IP20 protection and RoHS compliance.

Main specifications:

  • Format: RACK 19" – 12U
  • Dimensions: 600 × 636 × 600 mm
  • Depth: 354 mm
  • Static load: 70 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Opening: reversible
  • Ventilation: 2 × 105 × 105 mm
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RW1266 RACK cabinet supports a maximum static load of 70 kg , offering adequate capacity to accommodate CCTV, LAN, RTV, AC and I&HAS systems in wall-mounted installations for homes and small businesses.
✅ Structure:
Made from SPCC cold rolled steel , it features 1.5mm RACK guides and mounting plate , while the cabinet and side panels are made from 1.2mm SPCC RAL 9004 steel ; the 5mm tempered glass front door is lockable and can be reversed for right or left opening.
✅ Ventilation:
The top panel integrates 2 105 × 105 mm ventilation holes , designed to promote air circulation and contribute to the correct thermal management of the equipment installed inside the 12U RACK cabinet .
✅ Mobility :
Being a wall-mounted RACK cabinet , the RW1266 model does not include wheels or mobility systems ; it comes fully assembled and is designed for a fixed, compact and tidy installation on the wall.

Technical data sheet

MODEL RW1266
Mounting dimensions 19" x 12U x 447 mm
Dimensions 600 x 636 x 600 [+/-2 mm]
Supported weight 70kg
Lock front door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 2nd year
Attention - possibility to move the door from left to right
