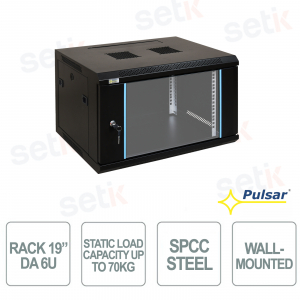

RW664 19" 6U 600x450 Wall-Mounted Rack Cabinet, 70 kg, Glass Door, IP20 - Pulsar

RW664 19" 6U 600x450 Wall-Mounted Rack Cabinet, 70 kg, Glass Door, IP20 - Pulsar

 
-58%

RW664 - The 19" 6U RACK cabinet is a fully assembled wall-mounted solution, designed to house CCTV, LAN, RTV, alarm and automation systems in indoor environments. The SPCC cold-rolled steel structure guarantees robustness and supports a static load of up to 70 kg , while the 5 mm tempered glass front door with lock protects the installed equipment. With external dimensions of 600 × 370 × 450 mm , it has adjustable RACK guides , upper and lower cable glands and ventilation provisions. The IP20 protection rating, reversible door opening and RoHS compliance complete a reliable solution for professional installations. Pulsar

Technical data sheet

referencia : RW664

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

RW664 | 6U 19" WALL-MOUNTED RACK CABINET

Dahua

The Pulsar RW664 19" 6U RACK cabinet is designed for wall-mounted installation of CCTV, LAN, RTV, alarm systems and professional devices compatible with the 19" standard. Made of SPCC cold-rolled steel , it supports a static load of up to 70 kg and has external dimensions of 600 × 370 × 450 mm . The 5 mm tempered glass front door with lock ensures protection and controlled access to the equipment. The adjustable RACK guides , the upper and lower cable glands and the ventilation provisions promote a tidy and functional installation. The cabinet is fully assembled , has IP20 protection and is compliant with the RoHS directive.

Main specifications:

  • Format: 19", 6U
  • Dimensions: 600 × 370 × 450 mm
  • Static load: 70 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: 2 x 105 x 105 mm
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RW664 RACK cabinet supports a maximum static load of 70 kg , offering adequate capacity for the installation of CCTV, LAN, RTV, alarm systems and standard 19" professional devices .
✅ Structure:
The frame is made of SPCC cold-rolled steel , with 1.5mm rails and mounting plate and 1.2mm body and side panels; the 5mm tempered glass front door with lock ensures protection and easy access.
✅ Ventilation:
The top panel integrates 2 105 × 105 mm ventilation cutouts , designed to allow the installation of ventilation systems and promote correct thermal management of the equipment present in the 6U RACK .
✅ Mobility :
The RW664 model is designed primarily for wall mounting and the PDF does not indicate wheels or specific handling systems; however, it does offer adjustable front and rear RACK rails and a reversible door that opens to the right or left , increasing the flexibility of installation and use.

Technical data sheet

MODEL RW664
Mounting dimensions 19" x 6U
Dimensions 600 x 368 x 450 [+/-2 mm]
Supported weight 70kg
Lock front door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 2nd year
Attention - possibility to move the door from left to right
