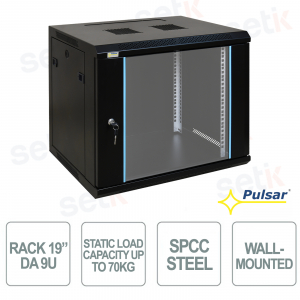

RW964 - The 19" 9U RACK cabinet is a fully assembled wall-mounted solution, designed to house CCTV, LAN, RTV, alarm and automation systems compatible with 19" standard. The SPCC cold-rolled steel structure supports a static load of up to 70 kg , while the 5 mm tempered glass front door with lock protects the installed equipment. With external dimensions of 600 × 501 × 450 mm , it integrates adjustable RACK guides , upper and lower cable channels and ventilation provisions. The IP20 protection rating, the reversible door with right/left opening and RoHS compliance complete a reliable solution for professional installations in indoor environments. Pulsar

Technical data sheet

referencia : RW964

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

RW964 | 9U 19" WALL-MOUNTED RACK CABINET

Dahua

The Pulsar RW964 19" 9U RACK cabinet is a fully assembled wall-mounted solution, ideal for integrating CCTV, LAN, RTV, alarm and automation systems compatible with 19" standard. The SPCC cold-rolled steel structure guarantees robustness and supports a static load of up to 70 kg , while the 5 mm tempered glass front door with lock protects the installed equipment. With external dimensions of 600 × 501 × 450 mm , it has adjustable RACK guides , upper and lower cable channels and ventilation provisions. The IP20 protection rating, reversible door and RoHS compliance complete a reliable solution for professional installations in indoor environments.

Main specifications:

  • Format: 19", 9U
  • Dimensions: 600 × 501 × 450 mm
  • Static load: 70 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: 2 x 105 x 105 mm
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RW964 RACK cabinet guarantees a maximum static load of 70 kg , offering adequate capacity for the installation of CCTV, LAN, RTV, alarm systems and standard 19" professional devices .
✅ Structure:
Construction uses SPCC cold-rolled steel , with 1.5mm RACK rails and mounting plate and 1.2mm body and side panels; the lockable 5mm tempered glass front door helps protect equipment from access and mechanical damage.
✅ Ventilation:
The top panel features 2 ventilation holes measuring 105 × 105 mm , which allow the installation of ventilation systems to aid thermal management of the equipment inside the 9U RACK cabinet .
✅ Mobility :
The RW964 is designed for fixed wall mounting and no wheels or handling systems are recommended; installation flexibility is ensured by the adjustable front and rear RACK guides and the reversible door , which can be configured to open to the left or right .

Technical data sheet

MODEL RW964
Mounting dimensions 19" x 9U
Dimensions 600 x 503 x 450 [+/-2 mm]
Supported weight 70kg
Lock front door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 2nd year
Attention - possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
