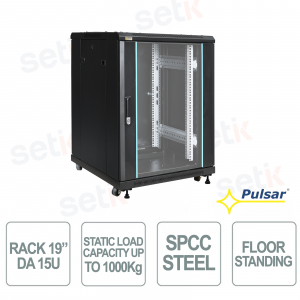

ZRS1566 - The 15U RACK cabinet is a professional, fully assembled floor-standing solution designed to integrate CCTV, access control, intrusion detection, RTV and LAN systems in medium and large installations. Compatible with standard 19" devices, it offers external dimensions of 600 × 855 × 600 mm and a robust SPCC cold-rolled steel structure with a 5 mm tempered glass front door. It supports a static load of up to 1000 kg , has adjustable RACK guides, removable side panels and provision for ventilation systems. The equipment includes 4 wheels, 4 leveling feet , cable ducts and locks on the front and rear doors, ensuring practicality, safety and professional organisation of the equipment. Suitable for indoor use IP20 , it complies with the RoHS directive. Pulsar

Technical data sheet

referencia : ZRS1566

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ZRS1566 | 15U FLOOR-STANDING 19" RACK CABINET

Dahua

The Pulsar ZRS1566 15U RACK cabinet is a professional, fully assembled floor-standing solution designed to house CCTV, access control, intrusion detection, RTV and LAN devices in medium and large installations. Compatible with standard 19" equipment, it offers external dimensions of 600 × 855 × 600 mm and a robust SPCC cold-rolled steel structure with a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet, integrates adjustable RACK rails and provision for ventilation. It is also equipped with removable side panels, cable channels, 4 wheels , 4 leveling feet and locks on the front and rear doors. Suitable for indoor use IP20 , it guarantees protection, order and reliability for professional infrastructures.

Main specifications:

  • Format: 19", 15U
  • Dimensions: 600 × 855 × 600 mm
  • Static load: up to 1000 kg
  • Structure: SPCC steel and tempered glass
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20
  • Installation: Fully assembled

Further details

✅ Static load :
The Pulsar ZRS1566 RACK cabinet guarantees a high support capacity, with a maximum static load of 1000 kg using the levelling feet, making it suitable for the installation of numerous professional equipment for CCTV, networking, access control and security systems .
✅ Structure:
Mainly made of SPCC cold-rolled steel , it integrates a sturdy 1.2mm welded frame, 2mm RACK rails, removable side panels and a lockable 5mm tempered glass front door , offering solidity and protection to the installed equipment.
✅ Ventilation:
Designed to promote proper air circulation , it features ventilation holes on the front door and on the top and bottom panels; furthermore, the top panel allows the installation of up to 2 RAWP fan units , improving the thermal management of RACK devices.
✅ Mobility :
The cabinet comes with 4 brakeless casters for easy movement and 4 leveling feet to ensure stability during installation and to support the maximum expected static load.

Technical data sheet

MODEL ZRS1566
Mounting dimensions 19" x 15U x 360 mm
Dimensions 600 x 501 x 600 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, assembled
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ25, same code)
rear door – lock (RAZ-D, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
