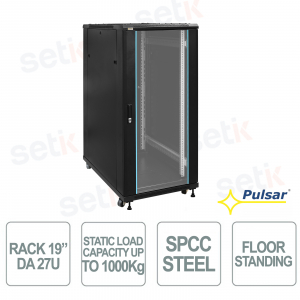

19" ZRS2761 27U 600x1000 IP20 Rack Cabinet 1000 kg for CCTV, LAN and Security Systems - Pulsar

19" ZRS2761 27U 600x1000 IP20 Rack Cabinet 1000 kg for CCTV, LAN and Security Systems - Pulsar

 
-58%

ZRS2761 - The 19" 27U RACK cabinet is a professional, fully assembled floor-standing solution designed to integrate CCTV, access control, intrusion detection, RTV and LAN systems in medium and large installations. Compatible with standard 19" devices, it has external dimensions of 600 × 1166 × 600 mm and a robust SPCC cold-rolled steel structure with a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet and features adjustable RACK guides, removable side panels and ventilation provision. It also integrates 4 wheels , cable channels and lockable front and rear doors, ensuring order, safety and practicality in professional infrastructures. Suitable for indoor use IP20 , it complies with the RoHS directive. Pulsar

Technical data sheet

referencia : ZRS2761

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ZRS2761 | 27U 19" FLOOR-STANDING RACK CABINET

Dahua

The 27U Pulsar ZRS2761 19" RACK cabinet is a professional, fully assembled floor-standing solution, ideal for integrating CCTV, access control, alarm, RTV and LAN networks in medium and large companies. It offers external dimensions of 600 x 1388 x 1000 mm , a mounting depth of 760 mm and a robust SPCC cold-rolled steel structure with a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet and features adjustable front and rear RACK rails. Ventilation is facilitated by dedicated holes and the provision for up to 3 fan units , while upper and lower channels simplify cable management. It is intended for IP20 indoor use and is equipped with 4 wheels, 4 leveling feet and locks on the front and rear doors .

Main specifications:

  • Format: 19", 27U
  • Dimensions: 600 x 1388 x 1000 mm
  • Static load: up to 1000 kg
  • Structure: SPCC steel
  • Front door: 5 mm tempered glass
  • Ventilation: provision for up to 3 units
  • Protection: IP20
  • Mobility: 4 wheels + 4 leveling feet

Further details

✅ Static load :
The Pulsar ZRS2761 19" RACK cabinet guarantees a maximum static load of 1000 kg when installed on the leveling feet , offering high support capacity for network equipment, video surveillance and professional systems installed in the rack.
✅ Structure:
The structure is made of sturdy SPCC cold-rolled steel , with a 1.2 mm welded frame , 2 mm vertical RACK guides and 1.5 mm horizontal guides; it also integrates a 5 mm tempered glass front door , removable side panels and a steel rear door, with RAL 9004 finish.
✅ Ventilation:
The system promotes proper air circulation thanks to the ventilation holes on the front door and on the top and bottom panels; the top panel also allows the installation of up to 3 RAWP fan units , useful for improving heat dissipation of the installed equipment.
✅ Mobility :
The cabinet comes with 4 brakeless castors for easy movement and 4 leveling feet for stable positioning once installed, combining ease of movement and safety during use.

Technical data sheet

MODEL ZRS2761
Mounting dimensions 19" x 27U x 760 mm
Dimensions 600 x 1388 x 1000 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, assembled
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ25, same code)
rear door – lock (RAZ-D, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
