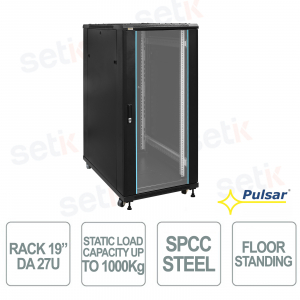

19" ZRS2768 27U 600x800 IP20 Rack Cabinet 1000 kg for CCTV, LAN and Security Systems - Pulsar

19" ZRS2768 27U 600x800 IP20 Rack Cabinet 1000 kg for CCTV, LAN and Security Systems - Pulsar

 
-58%

ZRS2768 - The 19" 27U RACK cabinet is a professional, fully assembled floor-standing solution designed to house CCTV, access control, alarm, RTV and LAN network systems. It offers external dimensions of 600 x 1388 x 800 mm and a useful mounting depth of 560 mm , with a robust SPCC cold-rolled steel structure and a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet and has adjustable front and rear RACK guides. Ventilation is facilitated by dedicated openings and the provision for up to 3 RAWP fan units , while the upper and lower channels facilitate wiring. The equipment is completed by 4 wheels, 4 leveling feet, locks on the front and rear doors and IP20 protection for indoor use. Pulsar

Technical data sheet

referencia : ZRS2768

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ZRS2768 | 27U 19" FLOOR-STANDING RACK CABINET

Dahua

The 27U Pulsar ZRS2768 19" RACK cabinet is a professional, fully assembled floor-standing solution, ideal for CCTV, access control, alarm, RTV and LAN networks . With external dimensions of 600 x 1388 x 800 mm and a mounting depth of 560 mm , it integrates a robust SPCC cold-rolled steel structure with a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet and features adjustable front and rear RACK rails. Ventilation is facilitated by dedicated openings and the provision for up to 3 RAWP fan units , while the upper and lower channels simplify cable management. The equipment is completed by 4 wheels, 4 leveling feet, locks on the front and rear doors and IP20 protection for indoor use .

Main specifications:

  • Format: 19", 27U
  • Dimensions: 600 x 1388 x 800 mm
  • Static load: 1000 kg
  • Structure: SPCC steel
  • Front door: 5 mm tempered glass
  • Ventilation: up to 3 RAWP units
  • Protection: IP20
  • Mobility: 4 wheels + 4 feet

Further details

✅ Static load :
The Pulsar ZRS2768 19" RACK cabinet supports a maximum static load of 1000 kg when placed on the leveling feet , offering high support capacity for network equipment, video surveillance and professional systems installed in the rack.
✅ Structure:
The construction uses SPCC cold rolled steel , with a 1.2mm welded frame , 2mm RACK guides and 1.5mm horizontal guides; it integrates a 5mm tempered glass front door , removable side panels and rear door in steel, with a RAL 9004 finish.
✅ Ventilation:
 Thermal management is aided by ventilation holes on the front door and on the top and bottom panels; the top panel is also designed to accommodate up to 3 RAWP fan units , improving air exchange for the housed equipment.
✅ Mobility :
The cabinet is supplied with 4 brakeless castors , which facilitate movement during installation and maintenance, and 4 levelling feet which allow the RACK to be stabilised and correctly positioned once placed in its final location.

Technical data sheet

MODEL ZRS2768
Mounting dimensions 19" x 27U x 560 mm
Dimensions 600 x 1388 x 800 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, assembled
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ25, same code)
rear door – lock (RAZ-D, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
