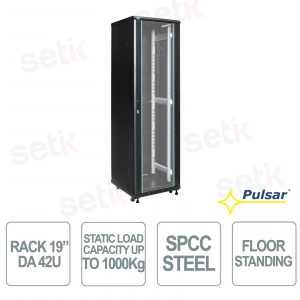

19" ZRS4266 42U 600x600 IP20 Rack Cabinet 1000 kg for CCTV, LAN and Security Systems - Pulsar

19" ZRS4266 42U 600x600 IP20 Rack Cabinet 1000 kg for CCTV, LAN and Security Systems - Pulsar

 
-58%

ZRS4266 - The 42U RACK 19" cabinet is a professional, fully assembled floor-standing solution, ideal for integrating CCTV, access control, alarm, RTV and LAN network systems in medium and large companies. It offers external dimensions of 600 x 2055 x 600 mm and a mounting depth of 360 mm , with a robust SPCC cold-rolled steel structure and a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet and has adjustable front and rear RACK guides. Ventilation is facilitated by special openings and the provision for up to 2 RAWP fan units , while the upper and lower channels simplify cable management. The equipment is completed by 4 wheels, 4 leveling feet, locks on the front and rear doors and IP20 protection for indoor use . Pulsar

Technical data sheet

referencia : ZRS4266

brand : Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

La empresa es líder en Polonia en este sector, pero está presente en muchos países de Asia y Europa, tanto que está creciendo tanto en términos de número de ventas como en el número de nuevos mercados en los que se está abriendo camino. La calidad de los productos y el servicio prestado a los clientes son los puntos fuertes que han hecho que la marca Pulsar tenga tanto éxito. La empresa está atenta al proceso de producción y al desarrollo de nuevos métodos de investigación para garantizar un servicio que siempre satisfaga las necesidades de los clientes. Pulsar amplía constantemente la gama de productos que ofrece, desde accesorios para sistemas de alarma hasta los de sistemas de videovigilancia. Entre las propuestas de Pulsar están: accesorios para contenedores de metal y para fuentes de alimentación RACK y armarios y accesorios para armarios.

[short_description] =>

Accessori impianti allarme Pulsar

Desde 1994, Pulsar se ha distinguido por la producción de controles de acceso y accesorios y componentes para sistemas de alarma y sistemas de videovigilancia.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Componentes de la alarma Pulsar [meta_keywords] => componenti pulsar,accessori pulsar ,armadi pulsar,allarmi pulsar ,controllo accessi pulsar [meta_description] => Pulsar es un fabricante de componentes para sistemas de alarma y control de acceso activo desde 1994. Descubre ahora la amplia gama de accesorios Pulsar disponibles en línea! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ZRS4266 | 42U 19" FLOOR-STANDING RACK CABINET

Dahua

The 42U Pulsar ZRS4266 19" RACK cabinet is a professional, fully assembled floor-standing solution, ideal for housing CCTV, access control, alarm, RTV and LAN network systems. It offers external dimensions of 600 x 2055 x 600 mm and a mounting depth of 360 mm , with a robust SPCC cold-rolled steel structure and a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with levelling feet and has adjustable front and rear RACK rails. Ventilation is favoured by special openings and the provision for up to 2 RAWP fan units , while the upper and lower channels facilitate cable management. The configuration is completed by 4 wheels, 4 levelling feet, locks on the front and rear doors and IP20 protection for indoor use .

Main specifications:

  • Format: 19", 42U
  • Dimensions: 600 x 2055 x 600 mm
  • Static load: 1000 kg
  • Structure: SPCC steel
  • Front door: 5 mm tempered glass
  • Ventilation: up to 2 RAWP units
  • Protection: IP20
  • Mobility: 4 wheels + 4 feet

Further details

✅ Static load :
The Pulsar ZRS4266 19" RACK cabinet is designed to support a maximum static load of 1000 kg when installed on the leveling feet , ensuring stable support for professional equipment dedicated to LAN networks, video surveillance, access control and security systems.
✅ Structure:
The construction uses SPCC cold rolled steel , with a 1.2mm welded frame , 2mm RACK mounting rails and 1.5mm horizontal rails; it also integrates a 5mm tempered glass front door , removable side panels and rear door in steel, with a RAL 9004 finish.
✅ Ventilation:
 Airflow management is aided by ventilation holes on the front door and the top and bottom panels; the top panel also allows for the installation of up to 2 RAWP fan units , improving air exchange within the cabinet.
✅ Mobility :
The cabinet is supplied with 4 wheels without brakes which facilitate movement during installation and maintenance and with 4 levelling feet , useful for obtaining stable and correct positioning of the RACK in its final location.

Technical data sheet

MODEL ZRS4266
Mounting dimensions 19" x 42U x 360mm
Dimensions 600 x 2055 x 600 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, assembled
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ25, same code)
rear door – lock (RAZ-D, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 brakeless casters, 4 leveling legs
- possibility to move the door from left to right
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
