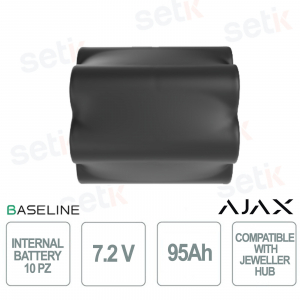

Internal Battery NB 7.2V 95Ah: Long-lasting Battery for Hub BP Jeweler

Internal Battery NB 7.2V 95Ah: Long-lasting Battery for Hub BP Jeweler

 
BEST SELLER -30%

121874.313.NC # 121874 | Internal Battery NB (7.2V/95Ah) is a non-rechargeable, high-energy-density power solution designed to ensure stable and long-lasting operation of the BP Jeweller Hub even in off-grid sites. Thanks to LTC ER34615 technology, it maintains a constant voltage from 100% to 1% charge and offers up to 23 months of autonomy in Battery Saver mode, ensuring operational continuity in any conditions. The battery has an extremely low self-discharge rate (≤1% per year) and can be stored for up to 10 years without losing performance. The compact and lightweight design facilitates installation in the hub casing, while the rugged construction ensures reliability even in demanding environments. Ideal for remote installations that require long life and zero maintenance. Ajax

Technical Data Sheet

referencia : 121874.313.NC

brand : Ajax Systems

EAN: 4823114069956

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

121874.313.NC | LTC ER34615-LD NON-RECHARGEABLE BATTERY PACK FOR INSTALLATION IN BP JEWELLER HUB - 7.2V/92Ah


Ajax

The Internal Battery NB (7.2V/95Ah), 121874.313.NC, is a non-rechargeable, high-energy density battery designed to ensure stable, long-lasting performance for the BP Jeweller Hub , ideal for off-grid installations requiring maintenance-free operation. Thanks to LTC ER34615 technology, it offers constant voltage from 100% to 1% charge, a battery life of up to 23 months in Battery Saver mode, and an exceptional self-discharge rate of ≤1% per year, ensuring reliability even after long periods of inactivity. With a shelf life of up to 10 years and a compact design, it installs easily in the hub casing and ensures safe operation even in challenging environmental conditions. A solution that combines durability, stability, and maximum energy efficiency.

Main specifications:

- Non-rechargeable LTC ER34615 technology with high energy density

- Battery life up to 23 months in Battery Saver mode and 3 months in full-function mode

- Stable voltage regardless of charge level

- Easy installation in the Hub BP Jeweler casing

- Reliable operation from 10°C to +40°C with humidity up to 75%

Further details

✅ Battery type :
 The Internal Battery NB (7.2V) is a non-rechargeable LTC ER34615 battery, designed to ensure high energy density and extremely stable operation over time. Thanks to its constant voltage from 100% to 1% charge and a self-discharge rate of less than 1% per year, it ensures reliable performance for months or years in off-grid installations. Its technology makes it ideal for applications that require maintenance-free operation, also offering a shelf life of up to 10 years without significant loss of efficiency.
✅ Power supply:
This battery provides a continuous 7.2 V power supply and up to 95 Ah capacity , allowing the BP Jeweller Hub to operate in Battery Saver mode for up to 23 months. Its electrical stability and predictable behavior even in variable environmental conditions (from −10 °C to +40 °C) ensure reliable power supply in remote sites, ensuring constant operation of the security system without risk of interruptions. It is designed to support loads up to 700 mA, making it a robust and efficient solution for prolonged power supplies.

Technical data sheet

121874.313.NC
Battery type
Batteries 10 × ER34615
Non-rechargeable, lithium thionyl chloride battery with HPC-1520 pulse capacitor.
Nominal voltage 7.2 V⎓
Capacity 95 Ah
Power supply
Maximum load current 700 mA
End-of-life battery voltage 4 V⎓
Recommendations Do not short the power terminals.
Do not recharge the battery.
Use the battery with compatible devices only.
The battery is designed for indoor use only.
Enclosure
Dimensions 135 × 65 × 105 mm
5.31" × 2.56" × 4.13"
Weight 990 g
35 oz
Battery connector type Molex 2139-2
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Complete set Internal battery NB (7.2V/95Ah)
Warranty 24 months
