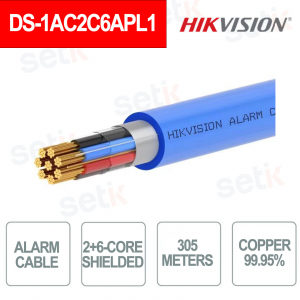

DS-1AC2C6APL1 | ALARM CABLE - HIKVISION
DS-1AC2C6APL1 2+6-core shielded alarm cable is ideal for installations in high-rise buildings, hotels, hospitals and other complex buildings. Suitable for fire alarms, burglar alarms and voice communications, it offers high mechanical resistance , excellent transmission thanks to bare copper , and is flame retardant (EN50575) . Easy to install, it works from -20°C to +70°C and complies with the RoHS 2.0 directive .

Technical data sheet
| Model | DS-1AC2C6APL1 |
| Category | |
| Product Category | Alarm Cable 2x0.75mm2+6x0.22mm2 |
| Fire resistance | |
| Fire resistance | CPR Eca |
| Conductor/Conductor 1 | |
| Conductor Material | Bare Stranded Copper (99.95%) |
| Special Conductor | 7/(0.185±0.007)mm 25AWG |
| Conductor/Conductor 2 | |
| Conductor Material | Bare Stranded Copper (99.95%) |
| Special Conductor | 24/(0.185± 0.007)mm 19AWG |
| Insulation/Insulation 1 | |
| Insulation Material | LSZH |
| Insulation Thickness | 0.2mm |
| Insulation Diameter | 1.15±0.10mm |
| Insulation/Insulation 2 | |
| Insulation Material | LSZH |
| Insulation Thickness | 0.2mm |
| Insulation Diameter | 1.60±0.10mm |
| Shield | |
| Shield | Drain wire + Aluminum foil |
| Drain | |
| Drain Material | Bare Stranded Copper (99.95%) |
| Conductor Spec | 7/(0.185±0.007)mm 25AWG |
| Rip cord | |
| Rip cord | Yes, Nylon |
| Jacket | |
| Jacket Material | LSZH |
| Jacket thickness | 0.50 mm |
| Jacket Diameter | 5.20 ± 0.50 mm |
| Color | Blue |
| Jacket physical properties | |
| Tensile strength | ≥ 10 Mpa |
| Elongation | ≥ 150% |
| Cold bend | -20 ± 2°C × 4h, 8 × cable OD, no visible cracks |
| Electrical Characteristics | |
| DC resistance | ≤ 95Ω/Km(0.22mm²) ≤ 29Ω/Km(0.75mm²) |
| Elongation | ≤ 4.0% |
| Cold bend | 300 V |
| Environmental Specifications | |
| Usage scenarios | Indoor |
| Operating Temperature | -20°C to 70°C |
| Packaging and Weights | |
| Packaging Type | Reel in box |
| Package size | 328mm×286mm×330mm |
| Packaging quantity | 1 |
| Length | (305 ± 1.5) m |
| Weight | 17.90±2.00kg |
