IPC-HUM4431S1-L4 - Dahua - Mini Pinhole PoE Camera with 2.8mm fixed lens and 4MP resolution - 1/2.7" Starlight CMOS sensor - Smart Codec H.265+ - Dual Stream Video - WDR 120dB - Video Analysis: intrusion and line crossing - BLC - HLC - AWB - Motion - ROI - Mirror Mode - Privacy Masking - Audio 1in/1out - Alarm 2in/1out - Integrated microphone - Metal body.
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

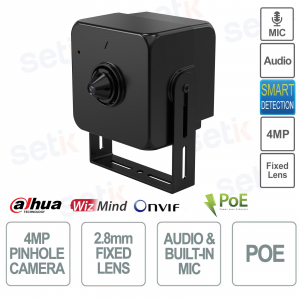

MINI IP CAMERA ONVIF® DAHUA 4MP - 2.8MM LENS - POE - VIDEO ANALYSIS AND AUDIO - MICROPHONE - IPC-HUM4431S1-L4

4MP Resolution - 2.8mm Pinhole Lens - 1/2.7" CMOS Sensor
BLC / HLC / / AGC / 3DNR / WDR 120dB - Video Analysis: Intrusion and Tripwire - Audio (1input/1output) - Microphone - Event alarm - Metal body.
Small size - ideal for hiding anywhere!
Product details

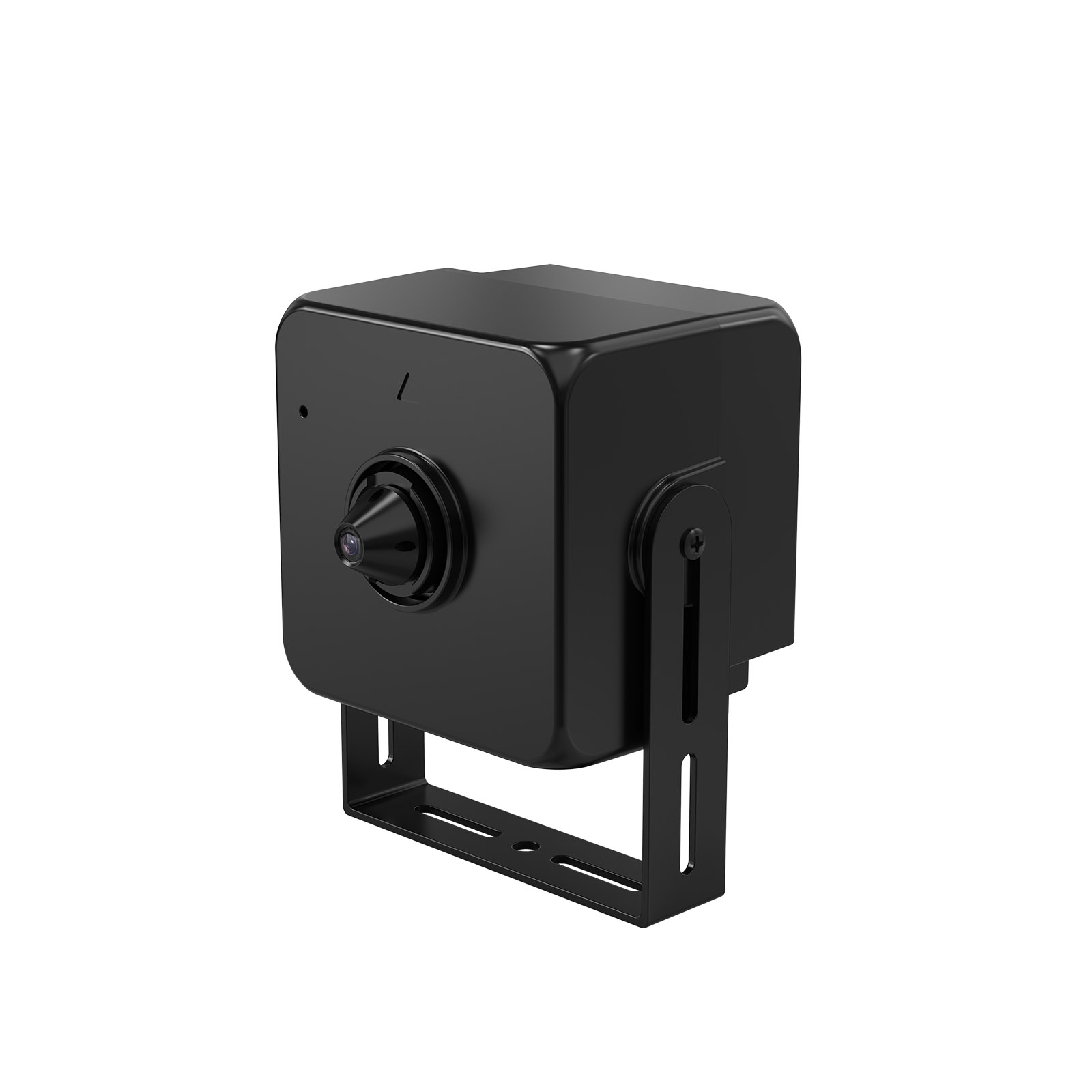

- Dahua ONVIF® PoE Mini IP Camera - IPC-HUM4431S1-L4
- 2.8mm Pinhole Fixed Optics
- 1/2.7" 4MP CMOS sensor
- 4MP resolution equal to 2688(H) × 1520(V)
- Double Stream
- Video compression up to H.265+
- BLC / HLC / WDR 120dB / 3DNR / Mirror Mode / Privacy Masking
- Video Analysis: Line Crossing, Intrusion
- Motion Detection - ROI (Region of interest)
- Audio: 1 input + 1 audio output
- Built-in microphone
- Alarm 2 input + 1 output
- Remote viewing with Dahua DMSS application
- Without IR illuminator

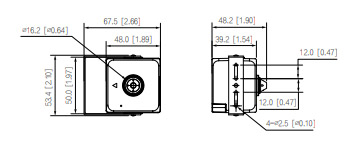

- Small size! : 67.5 mm × 53.4 mm × 48.2 mm
- Low weight, equal to 155g
Technical data sheet
PowerIPC-HUM4431S1-L4 | |||||
Technical Specification |
|||||
Room |
|||||
Image Sensor |
1/2.7" CMOS |
||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||
ROM |
128 MB |
||||
RAM |
128 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) |
||||
Y/N Ratio |
>56dB |
||||
Lens |
|||||
Lens Type |
Fixed focal |
||||
Lens Mount |
M12 |
||||
Focal Length |
2.8mm |
||||
Max. Openings |
F2.0 |
||||
Field of View |
Horizontal: 100°; Vertical: 57°; Diagonal: 114° |
||||
Iris Control |
Fixed |
||||
Close Focus Distance |
0.8 m (2.62 ft) |
||||
Power Supply |
12VDC, PoE (802.3af) |
||||
Power Consumption |
Basic: 1.7W (12VDC); 2.7W (PoE) |
||||
Environment |
|||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Operating Humidity |
≤95% |
||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Structure |
|||||
Casing |
Metal |
||||
Product Dimensions |
67.5 mm × 53.4 mm × 48.2 mm (2.66" × 2.1" × 1.9") (L × W × H) |
||||
Net Weight |
155g (0.34 lb) |
||||
Gross Weight |
190g (0.42 lb) |
Further details
![]() |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself and can never be used together with recording systems. |
![]() |
The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
![]() |
This camera is suitable for indoor environments ! - Not equipped with IP66 protection |
![]() |
This camera features a resolution of 4MP Resolution 2688 (H) × 1520 (V) |
![]() |
2.8mm PINHOLE fixed optics ![]() |
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression. |
![]() |
This camera features SMART DETECTION: |
![]() |
Remote visibility on mobile using Dahua DMSS application. |
![]() |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. ![]() |
![]() |
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations. ![]() |
![]() |
This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image. ![]() |
![]() |
Microphone on board! |
|
1 AUDIO input and 1 AUDIO output 2 inputs and 1 ALARM output |
![]() |
This product is covered by a 24 month warranty. |
