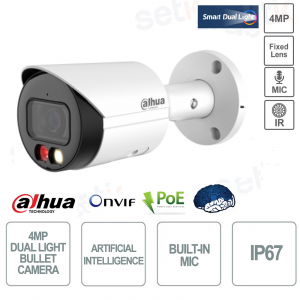

Wizsense Series | Dahua IPC-HFW2449S-S-IL 4Megapixel 4MP Onvif PoE outdoor IP bullet camera, 2.8mm lens, 1/2.9" CMOS sensor. Smart Dual Light IR illuminator with 1 LED + 1 warm light with a maximum range of 30MT and on-board intelligence : Perimeter Protection and Smart Search . WDR 120dB, Motion Detection, ROI, BLC, HLC. Built-in microphone, 256GB MicroSD slot (not included). IP67 protection. Power supply NOT included. 166.2 mm × 70 mm × 70 mm

IPC-HFW2449S-S-IL | 4MEGAPIXEL 2.8MM SMART DUAL LIGHT POE IP BULLET CAMERA ONVIF® - MICROPHONE

Dahua ONVIF® PoE IP Bullet Camera - Wizsense Series | IPC-HFW2449S-S-IL
Smart Dual Light IR Illuminator (2 LEDs + 2 warm lights) up to 30MT - Built-in Microphone - WDR120dB
Intelligence on board: Perimeter Protection and Smart Search - Power supply NOT included - 24 months warranty - IP67 protection
Dahua Smart Dual Light Technology: What is it?Dahua Smart Dual Light technology uses an intelligent algorithm to precisely detect targets. The IR illuminator is normally on at night. When the camera detects a target, the warm light turns on, and the camera records color video and key event information. When the target leaves the monitored area, the warm light turns off and the IR illuminator turns back on, helping reduce light pollution in the area. |
Product details
- ONVIF® PoE Outdoor AI IP Camera - Dahua - IPC-HFW2449S-S-IL
- Resolution 4Megapixel 4MP 2688x1520p
- 2.8mm fixed optics
- 1/2.9" CMOS sensor
- Video compression up to H.265+ Smart Codec
- Dual Video Stream
- Double lighting
2xIR LED up to 30m
2x warm lights up to 30m - WDR 120dB - BLC - HLC - 3DNR - Mirror - Privacy Mask - Image rotation - Motion Detection
- Artificial Intelligence : Perimeter / Intrusion Protection. / Smart Seacrh on NVR
- Built-in microphone
- Micro SD memory card slot (Up to 256GB - not included)
- IP67 protection (indoor / outdoor)
- Ethernet LAN RJ45 10/100M Base T
- Dimensions: 166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76")
- Weight: 0.48Kg
- Supported operating temperature: –40°C to +60°C
- Material: Made with Metal Case
- Power supply NOT included
- Power: 12 VDC/PoE (802.3af)
- 24 month manufacturer's warranty
Technical data sheet
| IPC-HFW2449S-S-IL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.9" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
2688 (H) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.006 [email protected](Color,30IRE) 0.0006 [email protected](B/W,30IRE) 0 lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
1 (IR LED); 1 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Openings |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 95°; V: 52°; D: 114°; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.9 m (2.95 ft); |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1-25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stream Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
H.264: 32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Car; natural; street lamp; outdoor; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Lighting |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711Mu; G.726; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (Profile S/Profile T/Profile G); CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
6 (Total bandwidth: 36 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; SFTP; Micro SD card (support max. 256GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE; Chrome; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; generation and importing of X.509 certification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic: 2.1W (12VDC); 2.5W (PoE) Max. (H.265 + intelligence + WDR + warm light): 4.4 W (12 VDC); 5.2W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.48 kg (1.06 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.59 kg (1.30 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
![]() |
All Onvif cameras are the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used in conjunction with recording systems. This camera is ONVIF® compatible |
![]() |
The advantage of a PoE camera is clear, it allows it to be powered with the same cable with which it communicates without running additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
|
|
AI | Artificial Intelligence
|
|
|
Smart H.265+ Smart H.265+ is an optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
![]() |
This camera has a resolution of 4Megapixels! Resolution 2688 (H) × 1520 (V) progressive scan |
![]() |
This camera features a 2.8mm fixed lens |
![]() |
Infrared Illuminator with Smart Dual Light Technology Smart Dual Light Technology:Smart Dual Light (default): Switches between IR illuminator and warm light when a target is detected![]() IR Mode (Optional): Only the IR illuminator is turned on. It is suitable for scenes where additional warm light is not required, significantly reducing light pollution. Warm light mode (optional): Only warm light is on. Suitable for scenes requiring color video recording. |
![]() |
This camera is equipped with an on-board microphone ! |
![]() |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when working in high-contrast light/shadow conditions. It's essential when shooting from inside to outside, license plates, shadowed areas, or any situation where there's uneven lighting. ![]() |
![]() |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. ![]() |
![]() |
This camera has ROI function. Images from IP cameras are compressed, so the quality is set during recording. Especially with very high-resolution cameras, it's often necessary to reduce the quality to ensure less bandwidth usage and record a greater number of days or cameras. The ROI allows you to define areas where you want to set a higher quality (for example, a door, the area where the license plate usually passes, an exit, etc.). In that area, I can set a higher quality , thus ensuring a higher image definition. ![]() |
![]() |
IP67 level protection, ideal for outdoor use. |
![]() |
Metal body. |
|
Possibility of inserting Micro SD up to a maximum of 256 GB - not included |
|
![]() |
Power supply NOT included.
|
| This product is covered by a 24 month warranty. |
