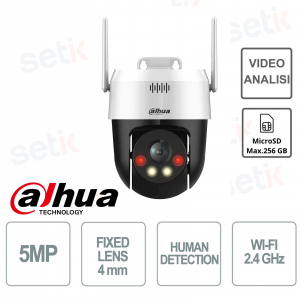

Dahua P5AE-PV 5MP 4mm Lens AI 360° Smart Dual Light Security Camera for Advanced Security

Dahua P5AE-PV 5MP 4mm Lens AI 360° Smart Dual Light Security Camera for Advanced Security

 
Optic calculation
-57%

P5AE-PV - The wireless surveillance camera offers clear and detailed 5MP images, with a 4mm lens and a viewing angle of up to 104.8°. Equipped with AI for human and vehicle recognition, it reduces false alarms thanks to intelligent automatic tracking functions, as well as audible and light alerts. The PTZ design ensures 360° monitoring without blind spots, while the Smart Dual Light illuminators allow for color footage even at night. The IP66 resistance guarantees reliability in any environment, and DMSS compatibility allows for remote control and real-time notifications. With H.265 compression and support for microSD cards up to 256GB, it represents a complete solution for advanced security in residential and professional environments. Dahua

Technical Data Sheet

referencia : P5AE-PV

brand : Dahua

EAN: 6923172596819

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DAHUA: DEBAJO DEL COSTE×

 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

P5AE-PV | 4mm 5MP Outdoor PT Camera - Artificial Intelligence

Dahua

The Dahua P5AE-PV wireless PTZ camera with a 4mm F1.6 lens offers crisp 5MP images and complete 360° control, ideal for intelligent video surveillance. Thanks to integrated AI, it detects people and vehicles, reducing false alarms, while active deterrence functions with light and audio discourage intrusions. Equipped with Smart Dual Light illuminators, it guarantees color footage even at night. Connected to the DMSS app for real-time notifications and remote management.

Main specifications:

- 5MP resolution with 4mm F1.6 lens

- 360° view with PTZ functions

- AI detection of people and vehicles

- Integrated light and sound alarms

- Smart Dual Light for color night vision

- IP66 resistance for outdoor use

Further details

✅ Resolution (5MP):
Capture video up to 2560×1920 pixels, with high quality and support for H.265 compression, reducing storage space without losing definition.
✅ Optics (4mm F1.6) :
It offers a wide field of view (80.4° horizontal and 104.8° diagonal), ensuring clear and detailed images even from a distance.
✅ Smart Dual Light:
Combines IR illuminators and white light to provide color night vision, reducing light pollution and improving detail identification.
✅ Sound and Light Alarm:
Integrated alarm system with sound and light alerts that activate in the event of an intrusion, deterring intruders.
✅ Active Deterrence:
Ability to set flashing lights and up to 10 customizable sounds, with adjustable intensity, to strengthen active protection.
✅ AI Human Detection:
Intelligent person recognition, which reduces false alarms by filtering out irrelevant movements such as animals or objects.
✅ AI Vehicle Detection:
AI technology that identifies vehicles, ideal for monitoring parking areas and road access.
✅ Two-way Talk:
Real-time two-way audio communication, useful for interacting with visitors or warning unauthorized strangers.
✅ Auto Tracking:
Automatic tracking of the detected subject, ensuring that the camera follows any suspicious movement without loss of frame.
✅ Network:
Connectivity via RJ-45 and Wi-Fi IEEE802.11 b/g/n, compatible with management platforms such as DMSS for remote control from smartphone or PC.

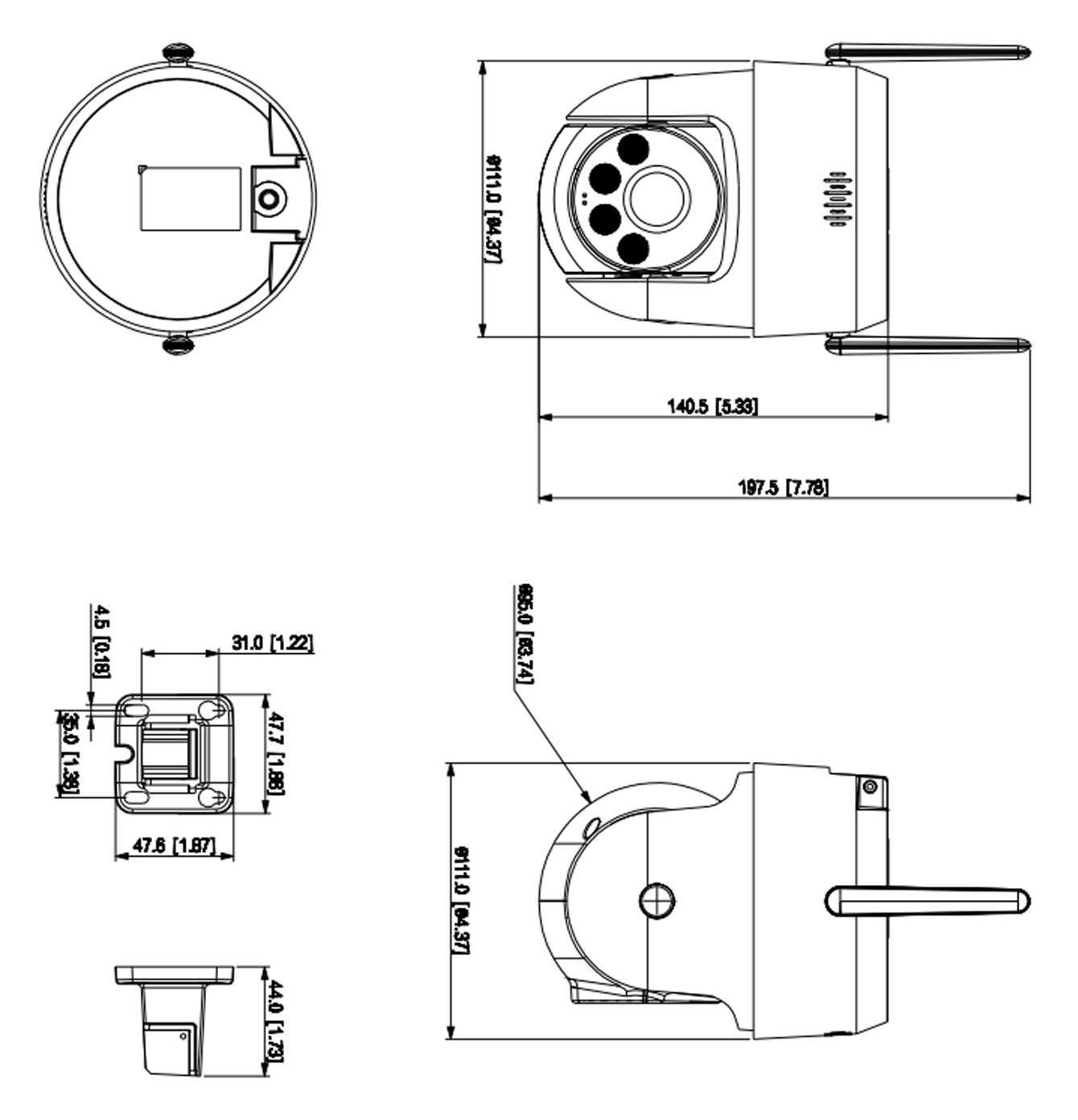

P5AE-PV dimensions

Technical data sheet

Model P5AE-PV
Room
Image Sensor 1/2.8" CMOS
Pixel 5 MP
Max. Resolution 2560 (H) × 1920(V)
Electronic Shutter Speed 1 s–1/100,000 s
Illuminator Number 2 (IR light); 2 (warm light)
Illumination Distance 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)
Lens
Focal Length 4 mm
Max. Openings F1.6
Field of View H: 80.4°; V: 58.1°; D: 104.8°
Close Focus Distance 0.3 m (0.98 ft)
PTZ
Pan/Tilt Range Pan: 0° to 345°
Tilt: 0° to +80°
Presets 300
Smart Event
IVS Tripwire and intrusion
Human Detection Yes
SMD SMD3.0
Active Deterrence
Light Warning Warm light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low
Sound Warning Offers 1 sound alarm and 10 custom sound alarms can be imported;
Sound can be set from 0%–100%;
Play times can be set from 1-10.
Video
Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Resolution 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Video Bit Rate H264: 104 kbps-8,192 kbps
H265: 41 kbps-8,192 kbps
Day/Night Auto (ICR)/Color/B/W
WDR DWDR
Image Rotation 180°
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726
Network
Network Port RJ-45 (10/100 Base-T)
Standard Wi-Fi IEEE802.11b;IEEE802.11g;IEEE802.11n
Wi-Fi Frequency Range 2.4000-2.4835 GHz
Power Transmission ≤20 dBm@2400–2483.5 MHz
Storage Micro SD card (256 GB); FTP
Browser IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player
Mobile Client iOS; Android
General
Certifications THERE IS
Power
Power Supply 12 VDC, 1 A ± 10% (included)
Environment
Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity ≤95%
Structure
Dimensions 140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
Net Weight 0.5 kg (1.10 lb)
Gross Weight 1 kg (2.20 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
