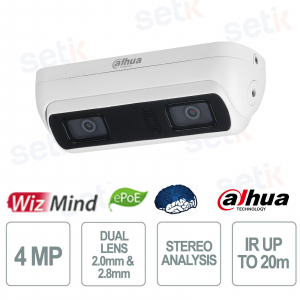

IPC-HDW8441X-BV-3D-0200B - WizMind is a professional 4MP stereoscopic dual-lens IP camera, designed for advanced video surveillance and behavioral analysis applications. Equipped with 2.0 mm or 2.8 mm fixed lenses , a 1/2.8" CMOS sensor, an IR illuminator up to 20 meters , and AI technology with 3D binocular vision , it offers extremely accurate detection of people, intrusions, falls, and abnormal behavior. It integrates a microphone and speaker for two-way audio, supports Smart H.265+/H.264+ compression, PoE/ePoE power supply, and IP67 IK10 protection, ensuring reliability even in the most critical environments. Dahua
referencia : IPC-HDW8441X-BV-3D-0200B
brand : Dahua
EAN: 6923172574237
Disponibilità: 1
BUSQUE INSTALADOR
IPC-HDW8441X-BV-3D-0200B | OUTDOOR IP CAMERA - 2.0mm & 2.8mm DUAL LENS - ARTIFICIAL INTELLIGENCE - BUILT-IN MICROPHONE AND SPEAKERS
The Dahua IPC-HDW8441X-BV-3D-0200B WizMind is a professional 4MP IP camera with Dual-Lens Stereo Analysis technology, designed for advanced detection of people and behavior thanks to Artificial Intelligence and 3D binocular vision. Equipped with a 1/2.8" CMOS sensor , IR illuminator up to 20 meters , two-way audio with integrated microphone and speaker and advanced analysis functions such as fall, intrusion, violence and gathering detection. It supports Smart H.265+/H.264+ compression, PoE/ePoE power supply, storage up to 512 GB and IP67 IK10 protection for installations in outdoor and high-risk environments.
Main specifications:
- 4MP resolution (2688×1520)
- AI 3D Stereo Analysis
- R up to 20 m
- Built-in microphone and speaker
- Two-way audio
- PoE / ePoE
- MicroSD slot up to 512 GB
- IP67 IK10 protection
- Advanced IVS functions
Further details
✅ Optics :
Stereoscopic dual-lens system with 2.0 mm or 2.8 mm fixed optics, designed to offer a wide field of view and three-dimensional perception of the scene, improving the accuracy of detection and behavioral analysis.
Stereoscopic dual-lens system with 2.0 mm or 2.8 mm fixed optics, designed to offer a wide field of view and three-dimensional perception of the scene, improving the accuracy of detection and behavioral analysis.
✅ Resolution:
4MP (2688×1520) CMOS sensor capable of capturing sharp and detailed images up to 30 fps , ensuring high video quality for professional security applications.
✅ Artificial Intelligence:
The Dahua WizMind AI platform integrates deep learning algorithms and 3D stereoscopic analysis for advanced functions such as fall detection , violence detection, intrusion detection , line crossing detection, standing people detection, crowd detection, and abnormal people counting.
✅ Audio:
Equipped with a high-sensitivity microphone and built-in speaker , it supports two-way audio , intelligent noise reduction and filtering of non-human voices for clearer and more effective communications.
✅ Alarm:
It has 2 alarm inputs and 2 alarm outputs with advanced event management such as video tampering, motion detection, intrusions, abandoned objects, unauthorized access and numerous intelligent notifications generated by AI.
✅ Network Camera:
Compatible with IPv4/IPv6 , ONVIF Profile S/G/T , RTSP and P2P protocols, it offers remote management via software and mobile app, recording on MicroSD up to 512 GB , NAS and FTP/SFTP server.
✅ Doors:
Complete interface with Gigabit RJ45 port , RS-485 , 2 audio inputs , 1 audio output , 2 alarm inputs , 2 alarm outputs and BNC analog video output, ideal for professional integrations.
✅ PoE:
It supports PoE and ePoE power, allowing simultaneous data and power transfer over a single Ethernet cable, simplifying installation and reducing infrastructure costs.
Technical data sheet
| IPC-HDW8441X-BV-3D-0200B | |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 2.0 mm: 0.005 [email protected] (Color,30 IRE) 0.0005 [email protected] (B/W,30 IRE) 0 lux (Illuminator on) 2.8 mm: 0.005 [email protected](Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 20 m (65.62 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | Tilt: -10° to 70° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;2.0 mm |
| Max. Openings | 2.0 mm: F2.0 2.8 mm: F1.6 |
| Field of View | 2.0mm: H: 108°; V: 74°; D: 117° 2.8mm: H: 87°; V: 55°; D: 97° |
| Iris Control | Fixed |
| Close Focus Distance | 2.0 mm: 0.4 m (1.31 ft) 2.8 mm: 1.1 m (3.61 ft) |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection; people gathering; loitering detection; privacy protection |
| Stereo Analysis | Crossing warning line; warning area intrusion; running detection (only supported by inclined mount cameras); people approaching detection; violence detection (including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filtering |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 1920 × 1080@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | ABR;CBR;VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Defog | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; voltage detection; illegal access; motion detection; video tampering; scene changing; audio detection; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detection |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registration |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); P2P; CGI |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 512GB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 41 and later Firefox: Firefox 50 and later Safari: Safari 10 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Configuration encryption;Trusted execution;Session security;Digest;Security logs;WSSE;Account lockout;Security warning;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 2 channels (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: wet contact, 300 mA 12VDC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Power Consumption | Basic: 5.9W (12VDC), 7W (PoE); Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43") (L × W × H) |
| Net Weight | 0.82 kg (1.81 lb) |
| Gross Weight | 1.14 kg (2.51 lb) |
