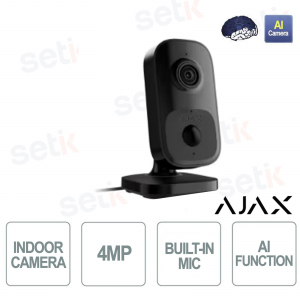

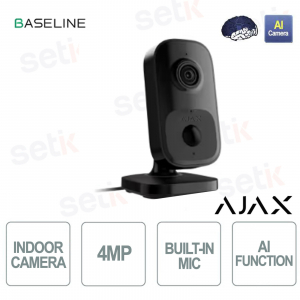

111567.303.BL1 | INDOOR WI-FI SECURITY CAMERA WITH PIR MOTION SENSOR AND BUILT-IN AI.

Ajax IndoorCam, 111567.303.BL1, black is an indoor Wi-Fi security camera designed to offer advanced control, intelligent protection and maximum privacy. It combines a 4 MP wide-angle HDR camera , a PIR sensor for motion detection and AI-based object recognition , capable of distinguishing between people, animals and vehicles. Smooth streaming with JetSparrow technology and IR night vision up to 8 m ensure continuous monitoring in any lighting conditions. Backup communication via Ajax hub with Jeweller and Wings protocols keeps the device operational even in the event of Wi-Fi loss. The system is completed by two-way audio with noise cancellation , ideal for active and immediate monitoring of indoor environments.
Main specifications:
- 4MP HDR camera with wide viewing angle
- Intelligent AI recognition of people, animals and vehicles
- PIR sensor for accurate motion detection
- Fast and stable JetSparrow video streaming
- Infrared night vision up to 8 meters
- Two-way audio with noise cancellation and Ajax backup channel
Further details
Technical data sheet
111567.303.BL1 |
|
| Video stream | Room 4 MP CMOS sensor Resolution up to 2688 × 1520 px Camera viewing angles horizontal: 110° vertical: 60° Video protocol JetSparrow Fast and encrypted peer-to-peer video protocol developed by Ajax Systems. Ajax Cloud (coming soon) NVR Video codec H.264 Dynamic range HDR Improves the accuracy of detail in bright and dark scenes. |
| Communication channel | Wi-Fi 802.11 b/g/n module 2.4 GHz, up to 2 Mbit/s for the channel 2K video Jeweler and Wings communication technologies Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications. They serve as a backup communication channel when the device is added to the hub. |
| Key features | Two-way communication Clear and loud voice communication between users and the device. Motion detection The device detects movement using a built-in PIR sensor and image frame analysis software Object detection using AI
up to 8 m up to 26 ft Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low-light conditions Visual verification of Ajax alarms The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app Microphone For two-way communication and sound recording at the site. Speaker volume up to XX dB XX dB at a distance of 1 m. XX dB at a distance of 3.3 ft Audio codec G722 Audio processing Always active noise suppression and echo cancellation LED indication An LED indicator shows the current state of the device |
| PIR detection | Sensitive elements 1 × PIR sensor Motion detection distance up to 4 m up to 13 ft Depends on the sensitivity level adjusted in the device settings Motion detection angle horizontal: 110° vertical: 60° Sensitivity 3 levels Adjusted by a PRO or a user with admin rights in Ajax apps |
| Installation recommendations | It is recommended to install the device at a height of XX m. It is recommended to install the device at a height of XX ft. The device is designed for indoor use only. It is not recommended to install the device in direct sunlight. This may cause overheating and damage to the device's electrical components. |
| Sabotage protection | Holding screw secures the device on the mounting bracket mTLS: Encrypted connection for data protection. Authentication: via Ajax Cloud Without local access rights Secure Boot: Protection against firmware spoofing. OTA signature verification: Secure automatic firmware update. Privacy Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop. Communication loss detection Wi-Fi: can be set from 30 s Jeweler/Wings: after 36 s Detection time depends on Ajax Cloud connection and Jeweler or Jeweler/Fibra settings |
| Power supply | Power supply unit 12 V⎓ ± 20%, 1 A TBC |
| Enclosures |
Dimensions: |
| Colors | Black |
| Complete set | IndoorCam Power supply unit Installation kit Quick start guide |
| Warranty | 24 months |
