111566.303.WH1 | INDOOR WI-FI SECURITY CAMERA WITH PIR MOTION SENSOR AND BUILT-IN AI.


Ajax

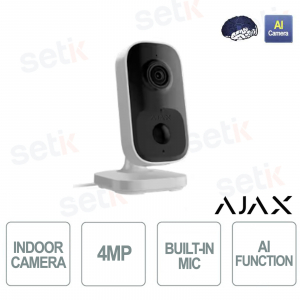

Ajax IndoorCam, 111566.303.WH1, white is an indoor Wi-Fi security camera designed to offer advanced control, intelligent protection and maximum privacy. It combines a 4 MP wide-angle HDR camera , a PIR sensor for motion detection and AI-based object recognition , capable of distinguishing between people, animals and vehicles. Smooth streaming with JetSparrow technology and IR night vision up to 8 m ensure continuous monitoring in any lighting conditions. Backup communication via Ajax hub with Jeweller and Wings protocols keeps the device operational even in the event of Wi-Fi loss. Two-way audio with noise cancellation completes the system, ideal for active and immediate monitoring of indoor environments.

Main specifications:

- 4MP HDR camera with wide viewing angle

- Intelligent AI recognition of people, animals and vehicles

- PIR sensor for accurate motion detection

- Fast and stable JetSparrow video streaming

- Infrared night vision up to 8 meters

- Two-way audio with noise cancellation and Ajax backup channel

Further details

Optics:
Ajax IndoorCam is equipped with a wide-angle HDR lens with a 110° horizontal and 60° vertical field of view , designed to cover large indoor areas with bright and detailed images , even in high-contrast conditions thanks to advanced light management.
Resolution :
The camera integrates a 4 MP CMOS sensor with a resolution of up to 2688 × 1520 pixels , offering high image sharpness , precise recognition of details and better visual analysis of events.
Video streaming:
JetSparrow video streaming ensures smooth , low-latency transmission , instant live view , quick archive browsing and instant preview , optimizing user experience even on complex Wi-Fi networks .
Communication channel :
It uses Wi-Fi as the main channel and, when connected to an Ajax hub, benefits from a backup communication channel via Jeweller and Wings protocols , ensuring sending of events, alarms and images even in case of Wi-Fi loss .
Main features:
Indoor camera with advanced HDR , infrared night vision up to 8 m , high-quality two-way audio , secure streaming , protected video archive and full integration into the Ajax ecosystem .
AI Detection:
The integrated artificial intelligence system enables accurate recognition of people, animals and vehicles , reducing false alarms and enabling intelligent recordings based on relevant events.
Anti-sabotage protection:
It ensures advanced data security thanks to secure authentication , customizable access control , communication encryption and protection against unauthorized access attempts .
Power supply:
Powered by 12 V DC , it ensures stable and continuous operation for indoor video surveillance applications, with energy management optimized for everyday use .

Technical data sheet

111566.303.WH1

Video stream Room
4 MP CMOS sensor
Resolution
up to 2688 × 1520 px
Camera viewing angles
horizontal: 110°
vertical: 60°
Video protocol
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Ajax Cloud (coming soon)
NVR
Video codec
H.264
Dynamic range
HDR
Improves the accuracy of detail in bright and dark scenes.
Communication channel Wi-Fi
802.11 b/g/n module
2.4 GHz, up to 2 Mbit/s for the channel 2K video
Jeweler and Wings communication technologies
Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications. They serve as a backup communication channel when the device is added to the hub.
Key features Two-way communication
Clear and loud voice communication between users and the device.
Motion detection
The device detects movement using a built-in PIR sensor and image frame analysis software
Object detection
using AI
  • People
  • Pets
  • Vehicles
Smart IR illumination
up to 8 m
up to 26 ft
Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low-light conditions
Visual verification of Ajax alarms
The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app
Microphone
For two-way communication and sound recording at the site.
Speaker volume
up to XX dB
XX dB at a distance of 1 m.
XX dB at a distance of 3.3 ft
Audio codec
G722
Audio processing
Always active noise suppression and echo cancellation
LED indication
An LED indicator shows the current state of the device
PIR detection Sensitive elements
1 × PIR sensor
Motion detection distance
up to 4 m
up to 13 ft
Depends on the sensitivity level adjusted in the device settings
Motion detection angle
horizontal: 110°
vertical: 60°
Sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in Ajax apps
Installation recommendations It is recommended to install the device at a height of XX m.
It is recommended to install the device at a height of XX ft.
The device is designed for indoor use only.
It is not recommended to install the device in direct sunlight. This may cause overheating and damage to the device's electrical components.
Sabotage protection Holding screw
secures the device on the mounting bracket
mTLS:
Encrypted connection for data protection.
Authentication:
via Ajax Cloud
Without local access rights
Secure Boot:
Protection against firmware spoofing.
OTA signature verification:
Secure automatic firmware update.
Privacy
Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.
Communication loss detection
Wi-Fi: can be set from 30 s
Jeweler/Wings: after 36 s
Detection time depends on Ajax Cloud connection and Jeweler or Jeweler/Fibra settings
Power supply Power supply unit
12 V⎓ ± 20%, 1 A
TBC
Enclosures

Dimensions:
128 × 74 × 76 mm
5.04" × 2.91" × 2.99"
Weight
235 g
8.29 oz
Operating temperature range
from 0 °C to +40 °C
from 32 °F to 104 °F
Operating humidity
up to 90% with no condensation
Protection class
IP20

Colors White
Complete set IndoorCam
Power supply unit
Installation kit
Quick start guide
Warranty 24 months
