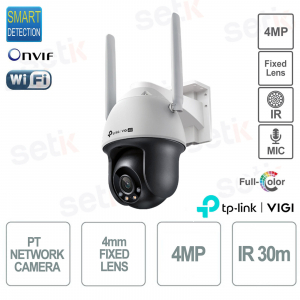

VIGI C540-W(4mm) TP-Link VIGI 4MP Outdoor PT Camera C540-W IP ONVIF Wi-Fi with Full Color and Night Vision 4Megapixel, 4mm fixed lens, H.265+, Smart IR with white light up to 30M. People and vehicle classification, Video Analysis, Smart Video Enhancement, remote monitoring, BLC, 3D DNR, HLC, SmartIR, reset button. IP66 protection. Dimensions: 120 × 172 × 198 mm
3 Years Warranty
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

 VIGI C540-W(4mm) 4MP TP LINK VIGI Wi-Fi PT CAMERA WITH NIGHT VISION - FULL COLOR

TP-Link VIGI 4MP PT IP Wi-Fi ONVIF camera - VIGI C540-W(4mm)
 Resolution 4Megapixel - 4mm fixed lens - H.265+ compression - Wi-Fi - 1/3" Progressive Scan CMOS sensor
 Night Vision & White Light IR : Up to 30 meters - SmartVid : Smart IR, WDR, 3D DNR, BLC, HLC
 Automatic Motion Tracking & Customizable Paths - Video Analysis & Human/Vehicle Classification - Full Color
 Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
 - Sensor: 1/3'' Progressive Scan CMOS
 - Wi-Fi
 - Illumination: 0.0005 Lux; 0 Lux with white light
 - Frame Rate: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
 - Power supply: 12V DC
 - Lens: 4mm fixed lens

|| Main Features:
- Full-Color and IR Night Vision: Up to 30 meters away for clear images even in the dark.
 - Custom Patrol: Configure custom monitoring routes.
 - Automatic Tracking: Automatically follows the movements of people and vehicles.
 - Active Defense: Built-in audible and visual alarms to respond to suspicious events.
 - On-Board Storage: Supports micro-SD memory for local storage.
 - Intelligent Detection: Includes human-classified motion detection, camera tampering, line crossing and area intrusion.
 - SmartVid: Advanced technologies like Smart IR, WDR, 3D DNR and BLC improve video quality.
 - ONVIF Compatibility: Interoperability with other security devices.
 - Remote Monitoring: Access via VIGI app, web interface and VIGI Security Manager.
 - 3 Years Warranty

DATA SHEET
| ROOM | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 350°, Tilt: 0° to 120° |
| Zoom | Yes |
| LENS | |
| Lens Type | Fixed focal length, 4mm |
| Openings | F1.6 |
| Focus | Fixed |
| FOV | Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93° |
| Lens Mount | M12 |
| ILLUMINATOR | |
| IR LED | Range: 30m Wavelength: 850nm  |
| White LED | Range: 30m |
| STANDARD COMPRESSION | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264  |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bitrate | Main Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps  |
| SMART FEATURES-SET | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| IMAGE | |
| Max. Resolution | 4MP |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080  |
| Sub Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240  |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Day/Night Switch | Day/Night/Auto/Schedule |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening |
| API | ONVIF |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| User/Host | Up to 21 Users |
| Client | VIGI Security Manager, VIGI app |
| WIRELESS | |
| Frequency | 2.4GHz |
| Wireless Channel | 1-13 |
| Radio Bandwidth | 20M |
| Transmit Power | High |
| Wireless Rate | 11Mbps(802.11b), 54Mbps(802.11g),150Mbps(802.11n)  |
| Wireless Security | WPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
| INTERFACE | |
| Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Video Output | No |
| Reset Button | Yes |
| Onboard Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| Power Consumption | 12V DC: Max 15.5W |
| Material | Plastic |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 198 mm |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC |
![]()  |

  |
|
 Hardware Pan Tilt Monitor every area with VIGI Pan-Tilt cameras. Custom patrol patterns and automatic tracking allow you to intelligently monitor key areas and improve the security of your property.  |
|
|
 Ultra High Definition Full-Color. The VIGI Full-Color camera supports 4MP video resolution and is able to capture colorful and detailed videos even in total darkness, thanks to the F1.6 aperture lens, the high-sensitivity sensor and the integrated additional spotlights.
  |
|
|
 Active defense In case of detection of abnormal events, it is possible to trigger the integrated acoustic and luminous alarm.
  |
|
|
 Every event is under your control The camera intelligently detects activities, instantly informing you and allowing you to respond automatically with smart detection and two-way audio.
  |
|
|
 SmartVid - Smart Video Enhancement
  |
|
|
 3 year warranty The following product is covered by a 3 year warranty  |
|
