Dahua IPC-K1430K-STW IP Camera PoE Indoor Surveillance Camera with 4MP resolution, 2.8mm. H.265, 1 LED 30M IR illuminator, WDR, Sound Alarm, 256GB MicroSD Slot (not included), Integrated Microphone and Integrated Speaker, Day/Night, Motion, 0°/180° image rotation. Plastic.
DAHUA: DEBAJO DEL COSTE×
 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

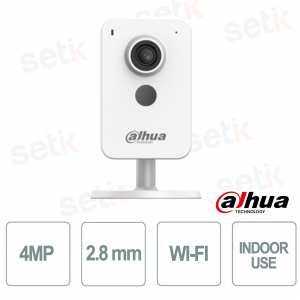

DAHUA IP CAMERA INDOOR SURVEILLANCE 4MEGAPIXEL 2.8MM SMALL AND PORTABLE

Resolution 4MP 4.0MP 4Megapixel - 2.8mm lens - Compression up to H.265
Smart IR Illuminator 1 LED 30M - Day/Night(ICR) - WDR - Motion Detection - Built-in Microphone and Speaker - Sound Alarm
MicroSD slot (Max 256GB - not included) - Power supply NOT included - 24 months warranty
Product details
- Dahua PoE Video Surveillance IP Camera
 - Resolution 4Megapixel 4.0MP 4MP
 - Fixed 2.8mm optics
 - Image Sensor 1/3" 4MP CMOS
 - Compression up to H.265+
 - Day/Night(ICR), WDR Motion Detection
 - Smart IR illuminator 1 LED 30M
 - Built-in microphone and speaker
 - Sound alarm
 - MicroSD Slot (Max 256GB - not included)
 - Material: Plastic
 - 12V DC/PoE power supply (not included)
 - Dimensions: 64mm × 100mm × 34mm (2.52" × 3.94" × 1.34")
 - 24 month warranty

Technical data sheet
| Model |
 IPC-K1430K-STW  |
| Room | |
| Image Sensor | 1/3” CMOS |
| Effective Pixels | 2560 (H) × 1440 (V) |
| IR Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | Pan: 0°–360° Tilt: -10° to 100°  |
| Lens Type | Fixed focal |
| Focal Length |
 2.8mm  |
| Max. Openings |
 F2.0  |
| Field of View | H: 92°; V: 50°; D: 107° |
| Intelligence | |
| Human Detection | Yes |
| Audio and Video | |
| Video Compression |
 H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)  |
| Video Frame Rate |
 Main stream: 2560 × 1440@(1-25/30 fps)  |
| Video Bitrate | H.264: 24kbps–6144kbps H.265: 9kbps–6144kbps  |
| Day/Night | Auto (ICR)/Color/B/W |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region Of Interest (ROI) | Yes (4 areas) |
| Image rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression |
 PCM; G.711a; G.711Mu  |
| Network | |
| Network port |
 RJ-45 (10/100Base-T)  |
| Wi-Fi |
 IEEE 802.11b/g/n/ax 2.412–2.472 GHz, 2.4 G  |
| Wi-Fi Pairing |
 Bluetooth pairing  |
| Storage |
 NAS; FTP; SFTP; Micro SD card (256G)  |
| Management Software |
 Smart PSS Lite;DMSS  |
| Mobile Client |
 IOS; Android  |
| Function | |
| Abnormal Sound Alarm |
 Yes  |
| General | |
| Certifications | THERE IS |
| Power Supply | 12VDC/PoE |
| Power Consumption | Basic: 2.04W (12VDC); 4.7W (PoE) Max.: 2.89W (12VDC); 5.85W (PoE)  |
| Operating Temperature |
 –10 °C to +45 °C (+14 °F to +113 °F)  |
| Operating Humidity |
 ≤95% (RH), non-condensing  |
| Camera Button | Reset button |
| Casing Material | Plastic |
| Product Dimensions | 64 mm × 100 mm × 34 mm (2.52" × 3.94" × 1.34") (L × W × H) |
| Net Weight | 0.11 kg (0.24 lb) |
Further details
![]()  |
The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
|

  |
 Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
  |
![]()  |
 This camera features a resolution of 4 Megapixels!  |
![]()  |
 2.8mm fixed optics  |
|

  |
 Smart IR Illuminator 1 LED 30 meters  |
|
 Remote visibility on mobile using Dahua DMSS application. Also possibility to make calls   |
|
![]()  |
This camera is equipped with an on-board microphone |
![]()  |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. ![]()  |
|
 Possibility to insert Micro SD up to a maximum of 256Gb (Not Included)  |
|
![]()  |
This camera requires 12V DC/PoE power supply for operation. Power supply NOT included! ![]()  |
![]()  |
This camera was made of plastic. |
| This product is covered by a 24 month warranty. |
