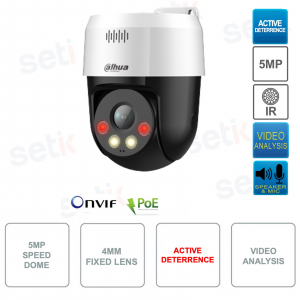

Smart Dual Light Dome PT 5MP IP PoE ONVIF® Camera - Active Deterrence - 4mm - IR 30m

Smart Dual Light Dome PT 5MP IP PoE ONVIF® Camera - Active Deterrence - 4mm - IR 30m
-58% nuevo

SD2A500NB-GNY-A-PV - ONVIF PoE Smart Dual Light PT 5MP outdoor IP camera - 4mm lens, 1/2.8" 5MP Dual Stream CMOS sensor, 30m IR illuminator with 2 white lights and 2 warm lights, Active deterrence, Siren Audio, Microphone, DWDR, Day/Night (ICR), BLC, HLC, Motion Detection, AGC, H.265+ Smart Codec, Video Analysis : Tripwire and intrusion, Person detection, IP66 outdoor protection, 10/100 RJ45 Ethernet, 256GB MicroSD slot (not included). Dahua



referencia : SD2A500NB-GNY-A-PV

brand : Dahua

EAN: 6923172576934

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Description Product Details Technical Sheet Further Details Download

ONVIF® SMART DUAL LIGHT PT POE IP CAMERA - 5MP - ACTIVE DETERRENCE - VIDEO ANALYSIS - 4MM LENS - DAHUA

Made by Setik
PT Smart Dual Light Dome IP PoE ONVIF® 5MP Camera - Dahua - SD2A500NB-GNY-A-PV
5Megapixel resolution - 4mm lens - 1/2.8” 5MP 2560×1920 CMOS sensor - 2 LED IR illuminator and 2 white lights 30m - Active deterrence: Siren, light and sound and voice alarms - Day/Night(ICR) - DWDR - 1in/1out audio - MicroSD slot (256GB not included) - Video Analysis: People detection, line crossing, intrusion - IP66 protection - 10/100 RJ45 Ethernet - Microphone - Speaker.

Product details

  • ONVIF® PoE PT Smart Dual Light Dome IP Camera - Dahua - SD2A500NB-GNY-A-PV
  • Resolution 5MP 2560×1920
  • 1/2.8" 5MP CMOS Sensor
  • H.265+ Smart Codec
  • Dual Stream
  • 4mm fixed optics
  • DWDR, Day/Night(ICR), Motion Detection, BLC, HLC, AGC
  • IR Illuminator 2 LED 2 Warm Light 30m
  • Video Analysis: Line Crossing, Intrusion, Person Detection
  • Active deterrence : lights, siren and sound and voice alarms
  • Audio: 1 input + 1 output (Built-in microphone and speaker) Bidirectional
  • 1 RJ45 10/100 Base-T port
  • IP66 Protection (Dust / Immersion)
  • MicroSD slot (Max 256GB - not included)
  • Dimensions: 140.5mm × Φ111.0mm
  • Operating temperature: –30°C~+55°C
  • 24 month warranty

Technical data sheet

SD2A500NB-GNY-A-PV

Technical Specifications

Room

Image Sensor

1/2.8" CMOS

Pixel 5MP
Max. Resolution 2560 (H) × 1920 (V)
ROM 128 MB
RAM 128 MB
Electronic Shutter Speed 1 s–1/100,000 s
Scanning System Progressive
Min. Illumination Color: 0.005lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (illuminator on)
Illumination Distance 30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)
Illuminator On/Off Control Manual; Auto; Off
Illuminator Number 2 (IR light)
2 (White light)

Lens

Focal Length 4mm
Max. Openings F1.6
Field of View H: 80.4° V: 58.1° D: 104.8°
Close Focus Distance 0.3 m (0.98 ft)
Iris Control Fixed

PTZ

12 VDC/1.5 A ±10% PoE (802.3af)
Power Consumption Basic: 3.5W
Max.: 9W (illuminator)

Environment

Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity ≤ 95%

Protection

Waterproof and Dustproof;TVS 2000V lightning proof; surge protection; voltage transient protection

Structure

Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.45")

Net weight

0.5kg (1.10lb)

Weight with packaging

1kg (2.20lb)

Further details

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera that is an end in itself and can never be used together with recording systems
PoE Power Supply

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

Active deterrence

Active deterrence:

Alerts intruders with built-in white light and siren, sound and voice alarms.

Resolution 5.0 Megapixel (2560x1920) This camera has a resolution of 5 Megapixels
TLC_FIXED_lens.jpg 4mm fixed optics.

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

This camera features VIDEO ANALYSIS / SMART DETECTION functions:
- Line crossing recognition
- Intrusion
- People detection

Crossing the line

DWDR function

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
This camera has 1 Audio input + 1 Audio Output (Microphone and speaker)
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Motion Detection Function This camera features the Motion function by connecting it to a recording device having alarm inputs.
MicroSD Recording

Possibility to insert Micro SD ( Max 256GB - not included )

This DVR features audio inputs/outputs Two-way communication with microphone and speaker.
Warranty This product is covered by a 24 month warranty.

Download

Download the English Brochure
