HYBRID THERMAL DOME CAMERA WITH DUAL LENS, VIDEO ANALYSIS AND FIRE ALARM

Made by Setik

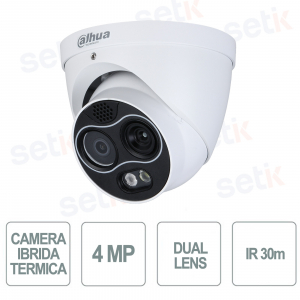

Dahua TPC-DF1141-HS Outdoor Dome Thermal Camera
Dual-Lens , 2mm thermal lens + 2mm visible lens , 1/2.7 CMOS sensor from 4MP. IR up to 30m, active deterrence
1x Audio input + 1x Audio output, 2x Alarm input + 2x Alarm output, RS-485
Smart functions , Fire detection function - 24 month warranty
THERMAL DETECTION


Product details

TPC-DF1141-HS
  • Hybrid Thermal Motorized Speed Dome Camera - Dahua
  • Dual-Lens technology, double optics thermal 2mm / visible 2mm
  • 1/2.7 4MP CMOS sensor
  • Resolution 192 x 144 (thermal optics) / (FoV 94° H/72° V)
  • Visual spectrum from 8 to 14µm
  • IR illuminator up to 30 meters
  • 2 alarm inputs and 2 alarm outputs
  • 1 audio input and 1 audio output
  • 24 month warranty

Technical data sheet

TPC-DF1141-HS
Thermal
Sensor Uncooled vanadium oxide, focal plane
Max resolution 192 (H) × 144 (V)
PixelPitch 12 μm
Spectral field 8 μm–14 μm
Thermal sensitivity (NETD) < 40 mK (@f/1.0, 25 Hz, 300 K)
Field of view 2mm: H: 87.8°; V: 63.8°
Focus distance 2mm: 0.3m (0.98ft)
Detection Distance 2 mm: Vehicle: 256 m (839.90 ft); Person: 83 m (272.31 ft)
Distance Recognition 2 mm: Vehicle: 63 m (206.69 ft); Person: 21 m (68.90 ft)
Distance Identification 2mm: Vehicle: 32m (104.99ft); Person: 12m (36.09ft)
Opening F1.0
Digital zoom 16 levels
AGC Auto; Manual
Noise reduction 2D NR; 3D NR
Flip image 180°
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/ midday/iron red/amber/jade/sunset/icefire/painting/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Fusion Mode 3 (Warm color; Cool color; Ironred)
Visible
Image sensor 1/2.7'' CMOS
Max resolution 2336 (H) × 1752 (V)
Pixel P 4 MP
Electronic shutter speed 1/30,000 s–1 s
Minimum lighting Colors: 0.05 lux
Black & White: 0.005 lux
0 lux (IR on)
IR range 30 m (98.43 ft)
IR Control On/Off Auto; Manual
Opening 2mm: F2.2
Field of view 2mm: H: 94°; V: 72°
Focus control Fixed
Focus distance 2mm: 0.3m (0.98ft)
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR DWDR
HLC Yes
White balance Car; Manual; Indoors; Outdoor; Tracking; Street lamp; Natural
AGC Auto; Manual
Noise reduction 2D NR; 3D NR
Y/N ≥55dB
Region of Interest (RoI) Yes
Flip image 180°
Exposure Compensation Yes
Artificial intelligence
General Tripwire; Intrusion with programmable AND logic
Advanced Intelligence Heat detection and alarm
Hot and cold spot tracking
Person/vehicle classification
Smoker Detection
Video and Audio
Video Compression Thermal: H.264; H.264H; MJPEG
Viewable: H.265; H.264; H.264H, MJPEG
Resolution Thermal:
Main Stream: 192 × 144
Sub Stream: 192 × 144
Visible
Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (default)
Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 x 288); 352 x 288 (default)
Frame Rate Thermal
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps default; (sub stream) 1 fps–25 fps adjustable, 15 fps default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps default; (sub stream) 1 fps–30 fps adjustable, 15 fps default
Visible:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps default; (sub stream) 1 fps–25 fps adjustable, 15 fps default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps default; (sub stream) 1 fps–30 fps adjustable, 15 fps default
Audio compression G.711a; G.711mu; PCM
Net
Protocols HTTPS; HTTP; HTTP push; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage Micro SD card (256G)
Compatibility ONVIF; CGI; DaHua SDK
Browser IE: IE 8 and later
Google: 42 and under
Firefox: 42 and earlier
Users/Hosts 10
Safety Authorized username and password, MAC address, HTTPS encrypted; IEEE 802.1x; controlled network access
Doors
Net 1 × RJ-45 (10/100 Base-T)
Audio input 1
Audio output 1
Alarm inputs 2
Alarm outputs 2
RS-485 1 pair
Diet
Diet 12VDC, 1.2A ± 20%; PoE
Absorption Base: <3 w="" 12="" vdc="" led="" off="" 3="" 5w="" poe="" br=""> Max: <7w 12="" vdc="" led="" on="" heater="" 9w="" poe="" td="">
Environmental conditions
Operating temperature –30 °C ~+60 °C (–22 °F to +140 °F)
Storage temperature –30 °C ~ +70 °C (–22 °F to ﹢158 °F)
Operating humidity ≤95%
Degree of protection IP67
Structure
Product dimensions 122 mm × 122 mm × 112 mm (4.80" × 4.80" × 4.41") (L × W × H)
Package dimensions 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31") (L × W × H)
Net weight ≤0.85kg (1.87lb)
Weight with packaging ≤1kg (2.20lb)

Further details

Thermal Camera... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera that is an end in itself and can never be used together with recording systems

This camera is a THERMAL CAMERA .


Sensitivity <50mK

Visual spectrum from 8 to 14µm

Dual-Lens Technology!
This camera is equipped with 2 lenses , a 2mm thermal one and a 2mm visible one.



PoE Power Supply

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

This camera features SMART DETECTION
- Crossing Line

- Intrusion

- People / Vehicle Classification

- Smoke Detection

- Detection of hot and cold areas

- Fire Detection & Alarm

This camera is able to detect the presence of fire

This camera features 1 BNC Video Output

Full HD This camera has 2 inputs and 2 alarm outputs
Ingresso Audio This camera has 1 input + 1 Audio Output
Protezione IP67 contro polveri e immersioni IP67: Guarantees protection from dust and water jets (rain)
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione DWDR

D-WDR (Digital Wide Dynamic Range)

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb (Not Included)

This camera was made of metal

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the Brochure
