HYBRID THERMAL DOME CAMERA WITH DUAL LENS, VIDEO ANALYSIS AND FIRE ALARM - EUREKA SERIES

Made by Setik

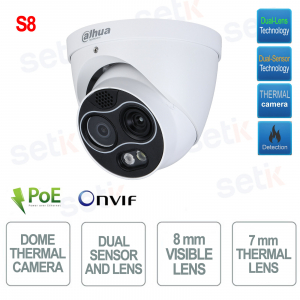

Dahua TPC-DF1241-B7F8-DW-S8 Outdoor Dome Thermal Camera
Dual-Lens , 7mm thermal lens + 8mm visible lens, 4MP CMOS sensor , 30m IR illuminator
1x Audio input + 1x Audio output, 2x Alarm input + 2x Alarm output, RS-485, 1 microSD-Card slot up to 256Gb (not included), ROI, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night
Smart functions , Fire detection function , vehicle and people recognition, intrusion detection - Onvif and PoE, IP67 - 24 months warranty
THERMAL DETECTION


Product details

TPC-DF1241-B3F4-DW-S8
  • Hybrid Thermal Motorized Speed Dome Camera - Dahua
  • Dual-Lens Technology, double optics: 7mm thermal / 8mm visible
  • 4MP CMOS sensor
  • Resolution 256 x 192 (thermal optical) / 2336 × 1752 ( visible optical )
  • Visual spectrum from 8 μm–14 μm
  • Integrated Video Analytics (Line Crossing, Intrusion, Object Detection (People / Vehicles), Fire Detection & Smoke Detection alarm.etc.)
  • People Detection
  • Mobile Vehicle Detection
  • Sensitivity 40mK (@f/1.0, 25Hz, 300K)
  • ROI, Motion Detection, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night
  • IR illuminator up to 30 meters
  • 1 alarm input and 1 alarm output
  • 2 audio input and 2 audio output
  • 1 microSD-Card slot up to 256GB
  • PoE Protocol
  • Power supply NOT included
  • Dimensions 122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")
  • 24 month warranty

Technical data sheet

Model TPC-DF1241-B7F8-DW-S8
Thermal Camera
Sensor Type Vanadium oxide uncooled focal plane detector
Effective Pixels 256(H) x 192(V)
Pixel Size 12um
Thermal Sensitivity < 40 mK (@f/1.0, 25 Hz, 300 K)
Spectral Range 8~14um
Focus Length 7mm

Field Of View

H: 24°; V: 18°
Close focus distance 1 m (3.28 ft)
Detection Distance Vehicle: 449 m (1,473.10 ft); Human: 146 m (479.00 ft)
Recognition Distance Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft)
Identification distance Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft)
Openings F1.0
Digital Detail
Enhancement (DDE)
Yes
Digital Zoom 16 ×
AGC Auto; Manual
Noise Reduction 2D NR; 3D NR
ImageFlip 180°
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Fusion Mode 3 (Warm color; cool color; Ironred)
Visible Camera
Image Sensor 1/2.7'' CMOS 4MP
Max resolution 2336 × 1752
Pixel 4 MP
Electronic Shutter Speed 1/30000 s–1 s

Minimum Illumination

Color: 0.05 Lux
Black & white: 0.005 Lux
0 Lux (IR on)

IR Distance

≥30m (98.43ft)

IR On/Off Control

Auto/Manual

Focus Length 8mm

Max Openings

F2.0

Field Of View

H: 33.4°; V: 25°

Focus control

Fixed
Close Focus Distance 2.5 m (8.2 ft)
Day/Night Auto (ICR); Color and B/W
BLC Yes
WDR DWDR
HLC Yes
White Balance Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural
AGC Auto; Manual
Noise Reduction 2D NR; 3D NR
Y/N Ratio ≥55dB
Region of Interest (RoI) Yes
ImageFlip 180°
Exposure Compensation Yes
Intelligence
General Intelligence Tripwire, Intrusion
Advanced Intelligence Heat Detection & Alarm
Cold & Hot Spot Track
Human & Vehicle Classification
Smoking Detection
Call Detection
Video and Audio
Video Compression H.265/H.264M/H.264H/H.264B/MJEPG
Resolution Thermal:
Main Stream: 1280×960 (1.3M); XVGA (1024×768);
VGA (640 × 480); 256×192; 1280 × 960 (by default)
Sub Stream: VGA (640 × 480); 256×192; 256 × 192 (by default)
Visual:
Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
Frame Rate Thermal
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visual
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu; PCM
Network
Protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage Micro SD card (256G)
Interoperability ONVIF®; CGI; DaHua SDK
Browser IE: IE8 and later
Google: 42 and earlier
Firefox: 42 and earlier
User/Host 10
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Port
Network 1 × RJ-45 (10/100 Base-T)
Audio Input 1
Audio Output 1
Alarm Input 2
AlarmOutput 2
RS-485 1
Power
Power Supply 12VDC, 1.2A (±20%); PoE
Power Consumption Basic: <3 w="" 12="" vdc="" led="" off="" 3="" 5w="" poe="" br=""> Max: <7w 12="" vdc="" led="" on="" heater="" 9w="" poe="" td="">

Environment

Operating Temperature –30°C to +60°C (–22°F to +140°F)
Storage Temperature –30°C to +70°C (–22°F to ?158°F)
Operating Humidity ≤95%
Protection IP67
Structure
Product Dimensions 122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")
Packaging Dimensions 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")
Net Weight ≤0.85kg (1.87lb)
Gross Weight ≤1kg (2.20lb)
Heat Detection Distance
Focal Length Max. Distance
7mm 86 m (282.15 ft)

Further details

Thermal Camera... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is a THERMAL CAMERA .


Sensitivity <40mK

Visual spectrum from 8 to 14µm

Dual-Lens Technology!
This camera is equipped with 2 lenses , a 7mm thermal one and an 8mm visible one.

- People detection up to 292m

- Detection of mobile vehicles up to 897m


PoE Power Supply

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

This camera features SMART DETECTION
- Crossing Line

- Intrusion

- People / Vehicle Classification

- Smoke Detection

- Detection of hot and cold areas

- Fire Detection & Alarm

This camera is able to detect the presence of fire.

This camera features 1 RS-485 port

Full HD This Camera has 2 Inputs and 2 Alarm Outputs
Ingresso Audio This camera has 1 input + 1 Audio Output
Protezione IP67 contro polveri e immersioni IP67: Guarantees protection from dust and water jets (rain)
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione DWDR

D-WDR (Digital Wide Dynamic Range)

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English Brochure
Telecamera IP  Dome Motorizzata Ibrida Termica Dual-Lens
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
