IPC-PTS2649C-3E3Z-4GB20-PRO | MULTIPLE LENS IP CAMERA - 3MP DUAL SENSOR - SOLAR PANEL


Dahua

The Dahua IPC-PTS2649C-3E3Z-4GB20-PRO is a standalone wireless IP video surveillance solution, ideal for remote environments or without a fixed network. Equipped with a dual 3MP sensor, it integrates three lenses: a 2.8mm fixed lens, a 3.6mm PT panoramic lens and an 8.4mm zoom lens, ensuring complete coverage and detailed images. Starlight technology ensures excellent performance even in low light conditions, supported by IR illuminators and white LEDs. The 4G LTE connection and rechargeable battery power combined with integrated solar panel allow continuous operation without the need for external power. Includes microSD slot, integrated microphone, smart tracking function and remote management via Dahua platforms. Ideal for construction sites, agriculture, mobile video surveillance and isolated areas.

Main specifications:

- Sensors: 2 x 3MP CMOS sensors

- Optics: 2.8mm fixed, 3.6mm panoramic PT & 8.4mm fixed zoom

- Night vision: IR + White LED up to 30 meters

- Connectivity: Integrated 4G LTE module

- Power supply: Rechargeable battery + integrated solar panel

- Smart functions: Smart Tracking, motion detection

- Audio: Built-in microphone

- Storage: MicroSD slot up to 256GB

- Protection: IP66 grade, dust and rain resistant

- Remote management: Dahua DMSS App, web browser, compatible NVRs

Further details

Advanced optical system with 3 integrated lenses:
A 2.8mm fixed lens for general framing, a 3.6mm PT panoramic lens for wide rotational views, and an 8.4mm zoom lens for capturing distant details.
Dual 3MP sensor:
To provide clear images in all conditions, separating the panoramic view from the magnified one.
Starlight Technology :
It allows clear vision even in extremely low light environments, maintaining color images.

Hybrid night lighting:
Thanks to white light LEDs and infrared (IR), to ensure both discreet and active visibility even in the dark.

Built-in 4G LTE module:
For real-time data transmission, perfect for areas without wired or Wi-Fi networks.
High capacity rechargeable battery:
For autonomous operation even in the absence of an electrical network.

Integrated solar panel:
Designed to maintain constant battery charge and ensure continuous and sustainable surveillance.

Intelligent Smart Tracking :
Which automatically detects and follows moving people or objects, optimizing active surveillance.
Ambient audio thanks to the integrated microphone :
Useful for complete monitoring and sound-synchronized recording.
Recording on microSD :
For local storage of videos even without NVR.
IP66 protected structure :
Resistant to rain, dust and adverse weather conditions.
Remote management and configuration :
Via Dahua app or supervision software, for smart and flexible control.
Perfect for applications in mobile or temporary contexts :
Construction sites, agricultural areas, isolated parking lots, mobile infrastructure, temporary installations or outdoor events.

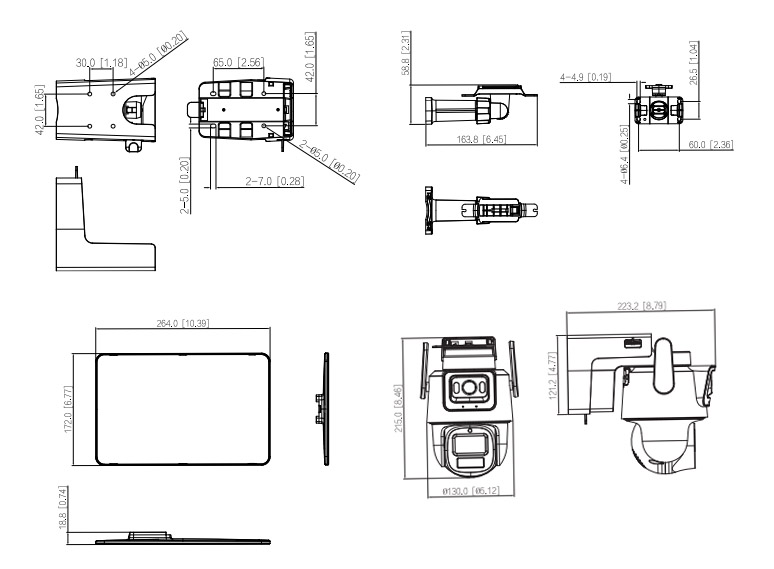

IPC-PTS2649C-3E3Z-4GB20-PRO dimensions

Technical data sheet

MODEL IPC-PTS2649C-3E3Z-4GB20-PRO
Room
Image Sensor Fixed Lens: 1/2.8" CMOS
PT Lens: 1/2.8" CMOS
Pixel Fixed Lens: 3MP
PT Lens: 3MP
Max. Resolution Fixed Lens: 2304 (H) × 1296 (V)
PT Lens: 2304(H) × 1296(V)
ROM 256 MB
RAM 256 MB
Scanning System Progressive
Min. Illumination Fixed Lens:
0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)
PT Lens:
0.0005 lux@F1.0(Color, 30 IRE);
0 lux (Illuminator on)
Illumination Distance Fixed Lens: 30 m (98.43 ft) (Warm light)
PT Lens: 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Fixed Lens: Manual; Auto; Off
PT Lens: Manual; Auto; Off
Illuminator Number Fixed Lens: 4 (Warm light)
PT Lens: 4 (Warm light)
Lens
Focal Length Fixed Lens: 2.8mm
PT Lens: 3.6mm; 8.4mm
Max. Openings Fixed Lens: F1.0
PT Lens: 3.6mm: F1.0; 8.4mm: F1.0
Field of View Fixed Lens:
H: 93.5°; V: 51.9°; D: 110.1°
PT Lens:
3.6mm: H: 81.5°; V: 44.3°; D: 96.3°
8.4mm: H: 15.1°; V: 8.4°; D: 17.8°
Close Focus Distance Fixed Lens: 1.1m (3.61ft)
PT Lens: 3.6 mm: 1.7 m (5.58 ft); 8.4 mm: 6 m (19.69 ft)
PTZ
Pan/Tilt Range Fixed Lens: Pan: 0° to 210°; Tilt: -7° to +20° (manual)
PT Lens: Pan: 0° to 350°; Tilt: 0° to +90° (Electric)
Manual Speed Control Pan: 40°/s; Tilt: 40°/s
Preset Speed Pan: 40°/s; Tilt: 40°/s
Presets 50
Tour 8 (up to 32 presets per tour)
Power off Memory Yes
Smart Event
Human Detection Yes
Vehicle Detection Yes
Intelligence
Smart Tracking Auto Tracking Lite
Linkage tracking
SMD SMD 3.0
Active Deterrence
Light Warning White light warning
Sound Warning Offers 3 sound alarms.
Sound can be set from 1-100.
Play times can be set from 1-10.
Video
Video Compression Smart H.265+
Streaming Capability 1 stream
Resolution Fixed Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640×360 (640×360)
PT Lens: 3M (2304×1296); 1080p (1920 × 1080); 720p (1280 × 720); 640×360 (640×360)
Video Frame Rate Fixed lens: Main stream: 3M/1080p/720p/640 × 360@(15 fps)
PT lens: Main stream: 3M/1080p/720p/640 × 360@(15 fps)
Bitrate Control VBR
Video Bitrate H265: 54kbps–1280kbps
WDR Fixed Lens: DWDR
PT Lens: DWDR
White Balance Car
Gain Control Car
Noise Reduction 3D NR
Motion Detection Yes
Image Rotation 180°
Y/N Ratio ≥55dB
Audio
Built-in MIC Yes
Built-in Speaker Yes
Network
Carrier Network System 4G
Wireless Carrier Frequency Band UAE/EUR:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
THERE:
LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B38/B40/B41
Max. Transmission Power 4G: Power class3: 23 dBm ± 2.7 dB
Storage Micro SD card (512GB)
Management Software DMS
Mobile Client Android;iOS
Certification
Certifications CE: EN 55032/EN 55035/EN 50130-4/EN 61000-3/EN 62368-1/EN 301489
Port
Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Alarm Linkage warning light; audio
Alarm Event Motion detection; human detection; vehicle detection
Power
Power Supply Power supply:
Built-in 65Wh lithium battery
Comes with 8W solar panel
Charging:
USB Type-C (Supports QC2.0)
Power Consumption Super Power Saving Mode: 40mW (4G keep alive)
AOV Mode: 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive)
Performance Mode 1: 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off)
Performance Mode 2: 3.7 W (4G streaming, SD card recording, PTZ static, illuminator on)
Maximum Power Consumption: 8.0W (4G streaming, SD card recording, PTZ moving, illuminator on, speaker on)
Power Adapter Optional
Battery Capacity 65Wh
Environment
Operating Temperature The unit device:
Operating Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Battery:
Charging Temperature: –10 °C to +50 °C (+14°F to +122 °F) (The solar panel heating the battery first, and charging begins once the battery is heated to 0 °C)
Discharging Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity ≤95%
Protection IP66; TVS 2000V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 223.2 mm × 130.0 mm × 215.0 mm (8.79" × 5.12" × 8.46") (L × W × H)
Net Weight 1.8kg (3.97lb)
Gross Weight 2.5kg (5.51lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
