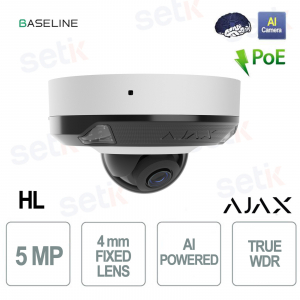

Ajax DomeCam Mini HL 5MP 4mm White with AI – Smart IP Camera

Ajax DomeCam Mini HL 5MP 4mm White with AI – Smart IP Camera

 
Optic calculation
ANUNCIOS nuevo

126271.214.WH1 #126271 | Ajax DomeCam Mini HL, a white IP camera with 4mm lens and 5MP resolution, is a compact and powerful IP camera, ideal for indoor and outdoor environments. Thanks to integrated artificial intelligence , it recognizes people, vehicles and animals, reducing false alarms and improving security. Hybrid illumination with TrueWDR ensures sharp, color images in any lighting conditions, while the integrated digital microphone provides clear ambient audio. With JetSparrow technology, it guarantees secure and smooth video transmission, PoE support and remote management from the app, combining advanced protection and ease of use in a compact and durable design ( IP65, IK08 ).

Technical Data Sheet

referencia : 126271.214.WH1

brand : Ajax Systems

EAN: 4823114073083

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126271.214.WH1 | AI-Powered 85° Wide Angle Security IP Camera with Hybrid Lighting, TrueWDR, Microphone, and POE/12V.


Ajax

The Ajax DomeCam Mini HL, 126271.214.WH1 , white with 4mm lens and 5MP resolution is a compact and powerful IP camera, designed for indoors and outdoors. Thanks to integrated artificial intelligence, it recognizes people, vehicles and animals, reducing false alarms and increasing security. Hybrid illumination with TrueWDR technology ensures sharp, color images both day and night, while the digital microphone ensures clear ambient audio. With secure transmission via JetSparrow, PoE support and resistance to dust and water (IP65, IK08), it offers reliability and advanced remote control via a dedicated app .

Main specifications:

- 5MP resolution for detailed images

- 4mm optics with wide viewing angle

- Artificial Intelligence for smart analytics

- TrueWDR and hybrid day/night lighting

- Built-in microphone for audio recording

- JetSparrow technology for secure streaming

Further details

✅ 5MP Resolution :
It offers high definition images up to 2880 × 1620 px , ensuring sharp details to recognize faces, license plates and objects with maximum precision.
✅ 4mm Optics:
Wide angle lens with 85° field of view, ideal for covering large areas without loss of quality, perfect for both indoor and outdoor environments.
✅ Dynamic range (TrueWDR) :
True Wide Dynamic Range technology improves visibility in high-contrast lighting conditions, allowing you to clearly distinguish subjects and details even in brightly lit or backlit scenes.
✅ Audio:
Equipped with a built-in digital microphone , it allows you to record and monitor ambient audio, increasing the level of security with audio verification of events.
✅ Intelligent video analysis:
AI recognizes people, vehicles and animals in real time, drastically reducing false alarms and ensuring more reliable control.
✅ Network:
It supports 100 Mbps full-duplex Ethernet , ONVIF/RTSP protocols and encrypted video transmission, ensuring compatibility with NVRs and professional video surveillance systems .
✅ JetSparrow:
Proprietary Ajax technology that ensures instant and secure video transmission , with quick access to archives and smooth streaming without delays .
✅ Anti-sabotage protection:
Advanced anti-tampering system with immediate detection of sabotage or disconnection attempts, sending timely notifications to maintain high system reliability.

Technical data sheet

126271.214.WH1
Room Image sensor
5 MP CMOS, 1/2.8" type
Lens focal length
4 mm
Maximum openings
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 85°
vertical: 48°
diagonal: 110°
Maximum illumination distance
  • white LED: up to 15 m
  • IR LED: up to 15 m
  • white LED: up to 49 ft
  • IR LED: up to 49 ft
Video Resolution
  • 5 MP (2880 × 1620)
  • 4 MP (2560 × 1440)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 25 fps
Image rotation
0°, 180°
Video codec
H.265, H.264
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G711-ULAW, G711-ALAW, G726, G722
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Key features Video protocol
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Visual verification of Ajax alarms
The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS: Encrypted connection for data protection.
Authentication: via Ajax Cloud
Secure Boot: Protection against firmware spoofing.
OTA signature verification: Secure automatic firmware update.
Power supply Standard PoE
802.3at/af
PoE power consumption
  • maximum: up to 7.3 W
  • average: up to 6.9 W
Power supply unit
12 V⎓ ± 20%, 1 A
12 V DC power consumption
  • maximum: up to 6.3 W
  • average: up to 5.9 W
Enclosures

Dimensions:
114 × 114 × 67 mm
4.49″ × 4.49″ × 2.64″
Weight
430 g
15.17 oz
Operating temperature range
from −30 °C to +60 °C
from −22 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65
Colors White
Complete set DomeCam Mini HL (5 Mp/4 mm)
Installation template
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
