The IPC-HDBW2541E-S-S2-B is a black camera with a 2.8mm lens offering 5MP resolution for clear, detailed images, ensuring advanced security in any lighting condition. Thanks to WizSense technology with integrated AI , it is able to distinguish people and vehicles, reducing false alarms, while the WDR function ensures excellent quality even in the presence of strong light contrasts. The integrated microphone allows for ambient audio recording, and the IP67 and IK10 protection ensures resistance against dust, water and vandalism. With PoE support, Smart H.265+ compression and intelligent detection functions, it represents an ideal and complete solution for modern video surveillance. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

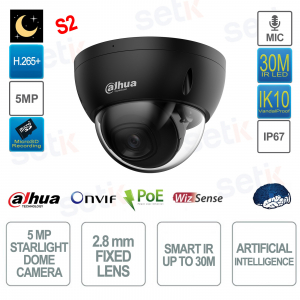

IPC-HDBW2541E-S-S2-B | 5MP ONVIF® POE IP DOME CAMERA - 2.8MM LENS - VIDEO ANALYSIS - MICROPHONE - IP67 AND IK10 PROTECTION - S2

The black Dahua IPC-HDBW2541E-S-S2-B camera with 2.8mm lens and 5MP resolution guarantees clear, detailed images even in low light conditions, thanks to 120dB WDR technology and infrared up to 30m. Equipped with WizSense AI, it accurately recognizes people and vehicles, reducing false alarms, while the built-in microphone enables ambient listening for advanced security. IP67 and IK10 protection make it resistant to dust, water, and shock, ideal for indoor and outdoor installations. It supports PoE, Smart H.265+ compression, and intelligent video analytics functions for reliable and professional video surveillance.
Main specifications:
- 5MP high definition resolution
- 2.8mm wide angle lens (111° FOV)
- WizSense AI technology for intelligent analysis
- WDR 120dB and IR up to 30m for optimal night vision
- Audio with built-in microphone
- IP67 and IK10 protection against weather and vandalism
Further details
✅ Intelligence (AI WizSense):

Technical data sheet
Yes
IPC-HDBW2541E-S-S2-B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2960 (H) × 1668 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.008 lux@F1.6 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
﹥56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
30 m (98.43 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
3 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestones |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (Total bandwidth: 48 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD card (support max. 256GB); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 2.3W (12VDC); 2.9W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67; IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

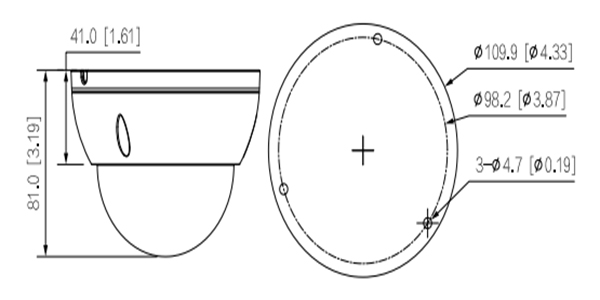

Product Dimensions |
81.0 mm × Φ109.9 mm (3.19" × Φ4.33") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.34 kg (0.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.49 kg (1.08 lb) |
