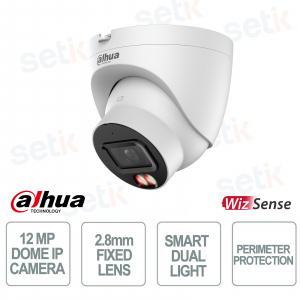

Dahua IPC-HDW21249T-S-IL 12MP AI Camera with 2.8mm Lens, Smart Dual Light and IP67 Protection

Dahua IPC-HDW21249T-S-IL 12MP AI Camera with 2.8mm Lens, Smart Dual Light and IP67 Protection
-56% nuevo

The IPC-HDW21249T-S-IL is a 12MP camera with a 2.8mm fixed lens. It is an advanced AI video surveillance solution, ideal for ensuring clear images even in low-light conditions thanks to Starlight and Smart Dual Light technology. It supports intelligent functions such as human and vehicle recognition, perimeter protection, and SMD Plus motion detection, reducing false alarms. With H.265 compression, a built-in microphone, and IP67 protection, it offers reliability in outdoor environments, while the wide viewing angle (112°) ensures optimal coverage for professional security. Dahua

Technical Data Sheet

referencia : IPC-HDW21249T-S-IL

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW21249T-S-IL | 12MP IP CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - SMART DUAL LIGHT


Dahua

The Dahua IPC-HDW21249T-S-IL 12MP camera with a 2.8mm fixed lens offers high-definition images thanks to its CMOS sensor and Starlight technology, ensuring clear vision even in low-light conditions. With advanced AI features such as human and vehicle detection, perimeter protection, and SMD Plus, it reduces false alarms and ensures professional security. Equipped with Smart Dual Light, H.265 compression, and IP67 protection, it is the ideal choice for indoor and outdoor installations.

Main specifications:

- 12MP CMOS 1/2.5" sensor

- 2.8 mm fixed optics with 112° viewing angle

- Smart Dual Light and Starlight technology

- AI: People/Vehicle Detection, SMD Plus, Perimeter Protection

- Built-in microphone, MicroSD slot up to 256GB

- IP67 certification for outdoor use

Further details

Resolution:
The camera integrates a 12MP (4480 × 2512) CMOS sensor that guarantees very high definition, clear and detailed images even in low light conditions .
Optics :
Equipped with a 2.8mm fixed lens with a 112° horizontal field of view, it allows for wide coverage for monitoring indoor and outdoor environments, reducing blind spots.
Intelligence :
Thanks to the built-in AI chip and deep learning, the camera supports advanced intelligent functions such as human/vehicle detection, smart search and behavioral analysis for advanced video surveillance .
Perimeter Protection :
AI-based perimeter protection accurately recognizes movements and intrusions, distinguishing between humans and vehicles and drastically reducing false alarms.

Smart Dual Light:
With intelligent dual illumination technology, the camera uses IR for night monitoring and activates white light only when it detects an event, ensuring color images and reducing light pollution.
Audio:
Built-in microphone with G.711 and PCM compression for clear and reliable recordings, useful for obtaining complete audio-video evidence .

Network Camera:
Compatible with standard network protocols (ONVIF, IPv4/IPv6, RTSP, HTTP), supports PoE for easy installation and offers local storage on MicroSD up to 256GB as well as connection to NAS or FTP.

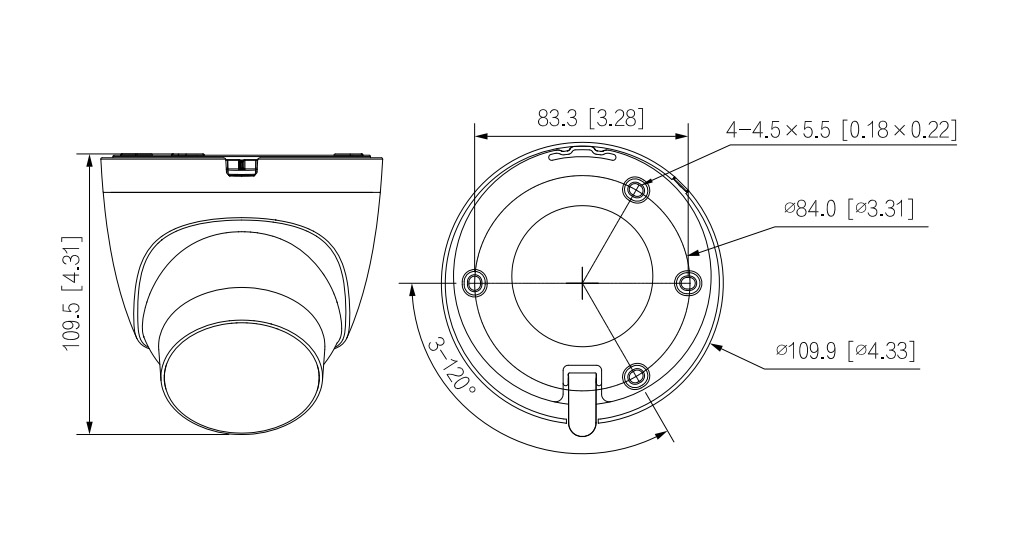

IPC-HDW21249T-S-IL dimensions

Technical data sheet

MODEL IPC-HDW21249T-S-IL
Room
Image Sensor 1/2.5" CMOS
Max. Resolution 4480 (H) × 2512 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 112°; V: 58°; D: 136°
Iris Type Fixed
Close Focus Distance 3.5 m (11.48 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD Plus
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 4480 × 2512@(1–15 fps)/3072 × 1728@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 2 stream
Resolution 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 2.3W (12VDC); 3.0W (PoE);
Max.: 6.2W (12VDC); 7.2 W (PoE) (H.265 + intelligence on + illuminator intensity)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Inner core: Metal;
Cover: Plastic
Product Dimensions 109.5 mm × Φ109.9 mm (4.31" × Φ4.33")
Net Weight 0.38 kg (0.84 lb)
Gross Weight 0.52 kg (1.15 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
