The IPC-HUM8441E-L3-S3 is a 4MP pinhole camera from the WizMind series, designed for discreet and high-security applications such as banks and sensitive areas. Equipped with a 1/2.7" CMOS sensor and advanced WDR technology, it guarantees clear images even in strong light contrast conditions. It supports resolutions up to 2688×1520 at 60fps, with a 2.8mm fixed lens that offers different viewing angles to adapt to various installations. The compact and resistant structure with IP67 protection ensures reliability even in harsh environments. Thanks to the integrated intelligent functions and the 3m or 8m coaxial cable design, the camera combines quality, flexibility and discretion in a single Dahua solution.
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

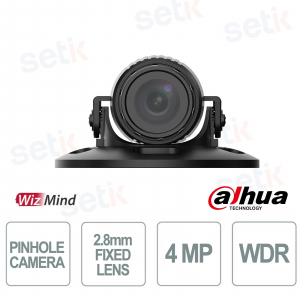

IPC-HUM8441E-L3-S3 | 4MP PINHOLE CAMERA WITH 2.8mm FIXED LENS

The Dahua IPC-HUM8441E-L3-S3 is a 4MP pinhole camera from the WizMind series, ideal for discreet applications such as banks and sensitive environments. With a 1/2.7" CMOS sensor, WDR technology and images up to 2688×1520@60fps, it ensures sharp details even in high-contrast lighting conditions. The 2.8mm fixed lens offers different viewing angles to adapt to multiple installation scenarios. The compact metal body with IP67 protection ensures reliability even in harsh environments.
Main specifications:
- 4MP resolution (2688×1520) at 60fps
- 1/2.7" CMOS sensor with advanced WDR
- 2.8mm fixed optics
- Field of view from 40° to 118° depending on the lens
- Compact and discreet design with IP67 protection
Further details

Technical data sheet
IPC-HUM8441E-L3-S3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2688 (O) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.002 lux@F1.6 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8mm: H: 99°; V: 54°; D: 118° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
Ф30.5 mm × 57.6 mm (Ф1.20" × 2.27") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
44 g (0.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
395 g (0.87 lb) |
