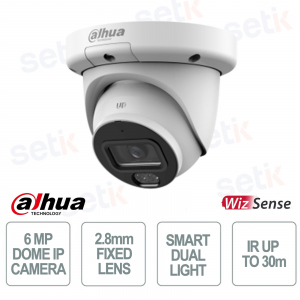

Dahua IPC-HDW3649QM-S-IL 6MP 2.8mm Camera with AI, WizSense, and Smart Dual Light

Dahua IPC-HDW3649QM-S-IL 6MP 2.8mm Camera with AI, WizSense, and Smart Dual Light
-56% nuevo

IPC-HDW3649QM-S-IL - is a 6MP fixed dome IP camera from the WizSense series, with a 2.8 mm lens that offers a wide field of view up to 110°. Thanks to the 1/2.7” CMOS sensor and Smart Dual Light technology , it guarantees color images even at night up to 30 m , reducing light pollution. It integrates advanced AI functions such as SMD 4.0, facial detection and perimeter protection based on deep learning, accurately distinguishing people and vehicles. It supports AI H.265 compression, built-in microphone and MicroSD storage up to 512GB. With IP67 certification and PoE power supply, it represents a reliable solution for residential and professional video surveillance. Dahua

Technical Data Sheet

referencia : IPC-HDW3649QM-S-IL

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW3649QM-S-IL | 6MP IP CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION

Dahua

The Dahua IPC-HDW3649QM-S-IL is a 6MP fixed dome IP camera with a 2.8 mm lens, ideal for advanced video surveillance systems. Thanks to the 1/2.7" CMOS sensor and Smart Dual Light technology, it guarantees color images at night up to 30 m, reducing false alarms with AI and SMD 4.0. It integrates intelligent functions such as facial detection, perimeter protection and AcuPick, to accurately distinguish people and vehicles. With a built-in microphone, H.265 compression and IP67 protection, it is the perfect choice for residential and professional applications.

Main specifications:

- 2.8 mm fixed optics with a viewing angle of up to 110°

- 6MP resolution (3288×1850) @30fps with WDR 120dB

- Smart Dual Light with IR illumination and white light up to 30 m

- Advanced AI: SMD 4.0, Face Detection and AcuPick

- Perimeter protection with intrusion detection and tripwire

- Built-in microphone and MicroSD support up to 512GB

- IP67 certification and PoE power supply for safe installations

Further details

2.8mm Optics :
Fixed wide-angle lens with a horizontal field of view of up to 110°, ideal for monitoring large areas with a single camera.
Resolution:
6MP CMOS sensor with maximum output 3288×1850 @30fps and 120dB WDR technology for clear images even in backlight .
Smart Dual Light :
Combines IR illumination and white light up to 30m; activates visible light only when people or vehicles are detected, providing color images at night and reducing light pollution.
Xinghan Large-Scale AI Models-Vision :
AI enhancement based on advanced models and NPU, which optimizes video analytics performance ensuring high accuracy and lower power consumption.
Intelligence :
Advanced features such as Face Detection, SMD 4.0 and AcuPick to identify and search for people or vehicles in footage, reducing false alarms.
Perimeter Protection :
Intelligent perimeter protection with deep learning-based intrusion detection and tripwires that accurately distinguish between vehicles and people.
Microphone:
Built-in microphone to capture ambient audio and enrich event analysis.

Network Camera:
IP camera with RJ-45 interface, PoE support, MicroSD storage up to 512GB and ONVIF protocols, compatible with Dahua software and NVR systems.
WizSense Technology :
Dahua AI platform combines ease of use and artificial intelligence for advanced and reliable security.

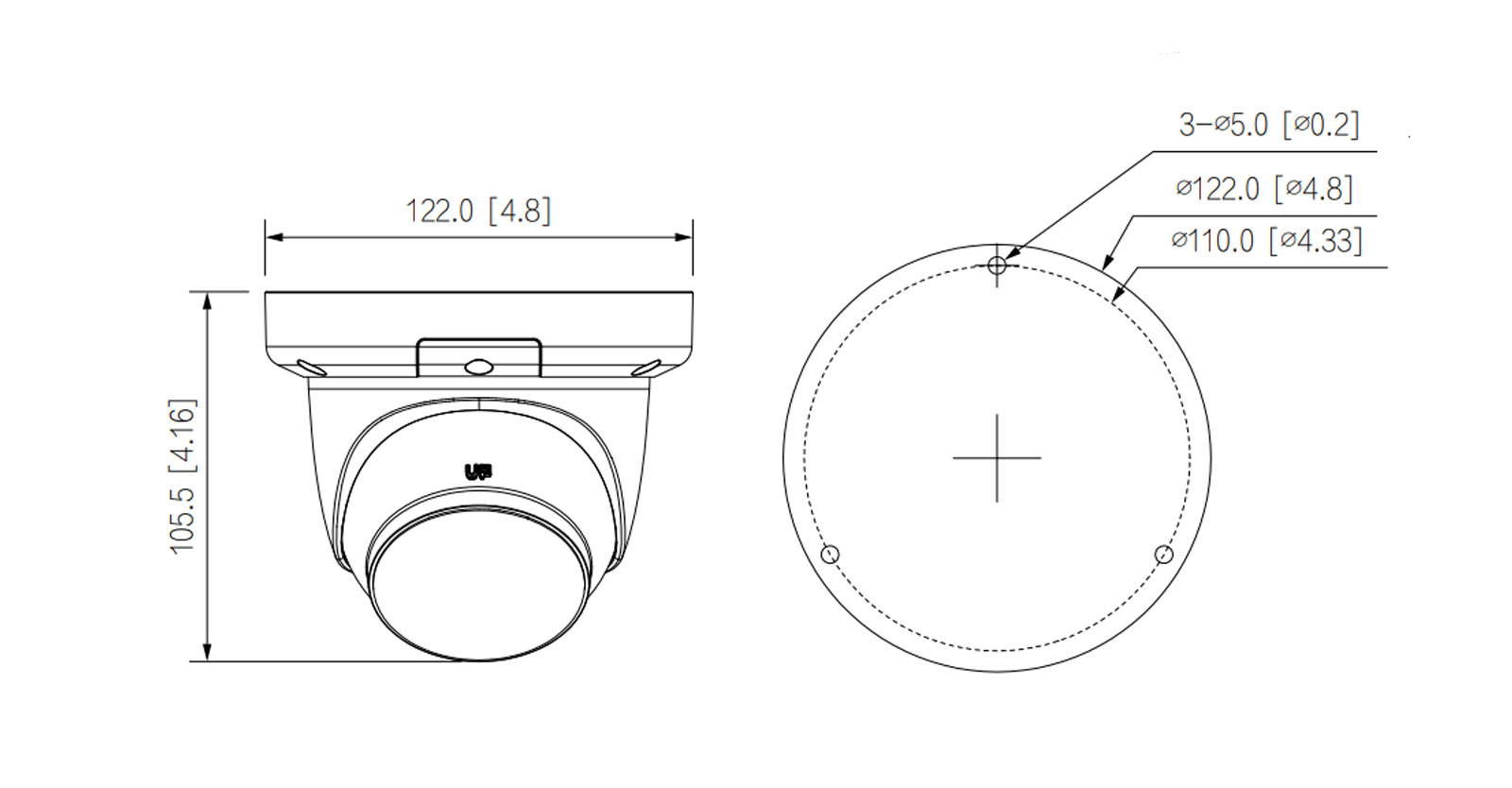

IPC-HDW3649QM-S-IL dimensions

Technical data sheet

MODEL IPC-HDW3649QM-S-IL
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 3288 (H) × 1850 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.4
Field of View H: 110°; V: 58°; D: 132°
Iris Type Fixed
Close Focus Distance 1.4 m (4.59 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3288 × 1850@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR;CBR;ABR
Video Bit Rate H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE 11; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 3.7W (12VDC); 5.3W (PoE);
Max.: 7.4W (12VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%, non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal;
Product Dimensions 105.5 mm × Φ122.0 mm (4.16" × Φ4.80")
Net Weight 0.53 kg (1.17 lb)
Gross Weight 0.71 kg (1.57 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
