IPC-HDW3649T-ZS-IL | 6MP IP CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - PERIMETER PROTECTION

Dahua

The Dahua IPC-HDW3649T-ZS-IL is a 6MP varifocal dome IP camera with a 2.7–13.5 mm motorized lens, designed to ensure high-definition and detailed images even in low-light conditions thanks to Smart Dual Light technology. It integrates advanced AI functions such as perimeter protection, SMD 4.0, face detection and AcuPick, reducing false alarms and making video analytics more precise. With a built-in microphone, H.265 AI compression and IP67 protection, it represents a reliable and professional solution for modern video surveillance systems.

Main specifications:

- Motorized varifocal optics 2.7–13.5 mm (field of view 114°–32°)

- Maximum resolution 6MP (3288×1850) @30fps with WDR 120dB

- Smart Dual Light with IR illumination and white light up to 50 m

- Artificial Intelligence with SMD 4.0, Face Detection and AcuPick

- Perimeter protection with intrusion detection and tripwire

- Built-in microphone and MicroSD support up to 512GB

- PoE network camera with ONVIF protocols and remote management

- Dahua WizSense technology with advanced AI for smart security

Further details

Optics :
2.7–13.5 mm motorized varifocal lens with F1.4 aperture and adjustable field of view from 114° to 32°, ideal for monitoring areas of different sizes.
Resolution:
6MP CMOS sensor with output up to 3288×1850 @30fps and 120dB WDR technology, which guarantees sharp and detailed images even in backlight .
Smart Dual Light :
Combines IR and white light technology up to 50m; automatically activates color light when detecting people or vehicles, reducing light pollution.
Xinghan Large-Scale AI Models-Vision :
It uses advanced AI models and NPUs for fast and precise processing, optimizing resources and improving multi-tasking analysis.
Intelligence :
Includes SMD 4.0, Face Detection and AcuPick for advanced detection and search of people and vehicles, dramatically reducing false alarms.
Perimeter Protection :
Deep learning algorithms accurately distinguish between vehicles and people, reducing false alarms about intrusions and tripwires.
Microphone:
Built-in microphone for ambient audio recording and support for more comprehensive communications.

Network Camera:
IP camera with PoE, MicroSD support up to 512 GB and ONVIF protocols, compatible with Dahua software and NVR systems.
WizSense Technology :
Dahua's AI platform combines ease of use, artificial intelligence, and advanced security for professional and residential systems.

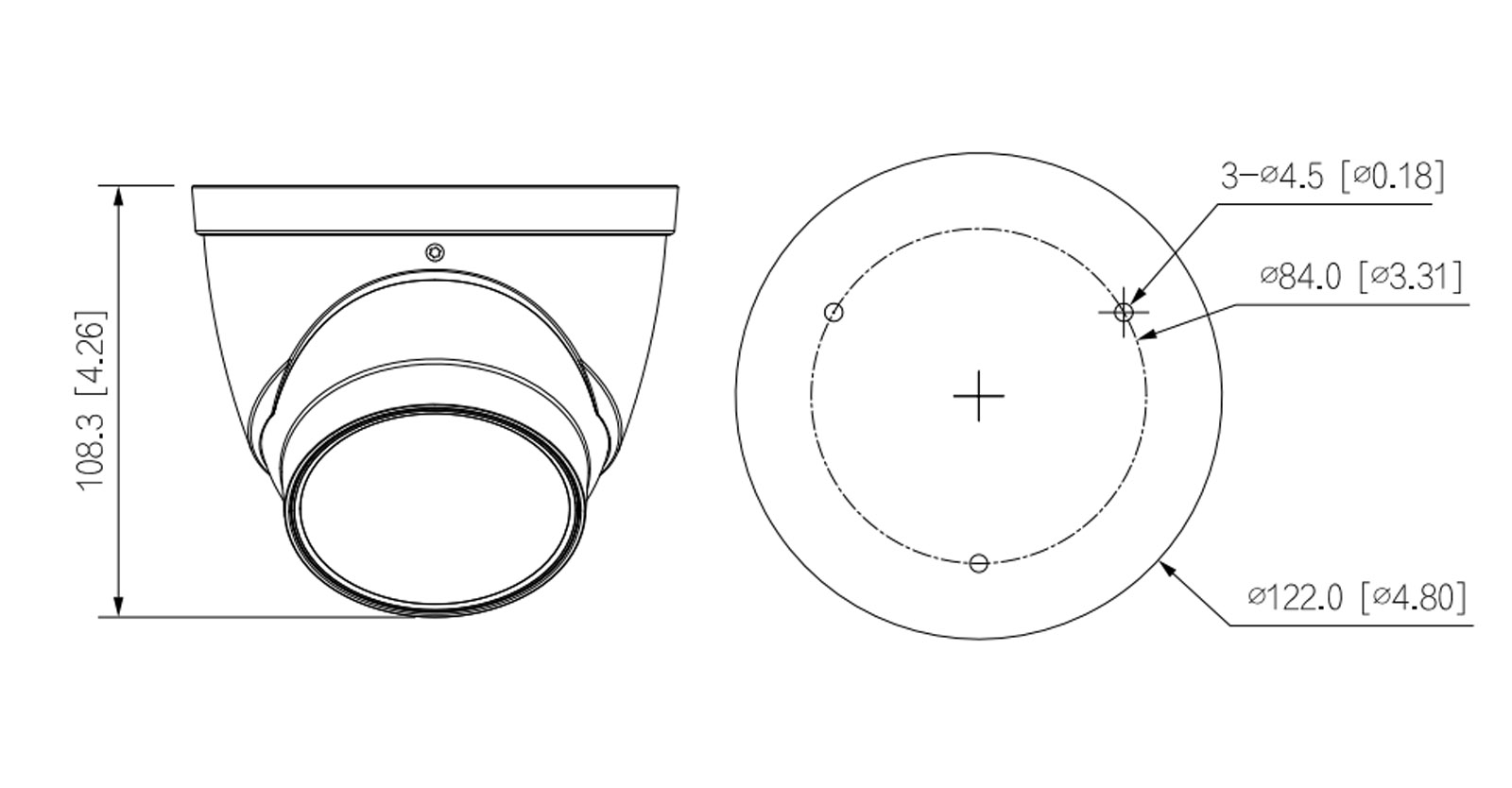

IPC-HDW3649T-ZS-IL dimensions

Technical data sheet

MODEL IPC-HDW3649T-ZS-IL
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 3288 (H) × 1850 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm-13.5 mm
Max. Openings F1.4
Field of View H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Type Fixed
Close Focus Distance 0.1 m (0.33 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3288 × 1850@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR;CBR;ABR
Video Bit Rate H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes, built-in dual Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE 11; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 3.7W (12VDC); 4.5W (PoE);
Max. (H.265 + WDR + warm light + intelligence on): 8.2 W (12 VDC); 9.8W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%, non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal;
Product Dimensions 108.3 mm × Φ122.0 mm (4.26" × Φ4.80")
Net Weight 690 g (1.52 lb)
Gross Weight 920g (2.0 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
