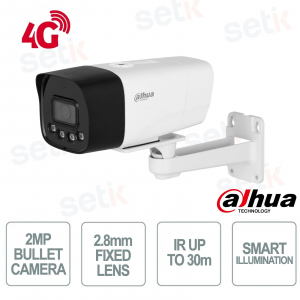

Dahua IPC-HFW1239DT-4G-ST-IL 2MP Full HD Camera with 2.8mm Lens and 4G

Dahua IPC-HFW1239DT-4G-ST-IL 2MP Full HD Camera with 2.8mm Lens and 4G
-57% nuevo

IPC-HFW1239DT-4G-ST-IL - is a camera It is a bullet with a 2MP 1/2.8" CMOS sensor and a maximum resolution of Full HD 1080p (1920 × 1080) at 25/30 fps, ideal for clear and smooth footage. It is equipped with a 2.8 mm fixed lens , which offers a wide field of view of up to 108° for maximum coverage. Thanks to Smart Dual Illumination technology with IR LEDs and warm light up to 30 meters, it guarantees color visibility even in total darkness. It integrates a microphone and speaker for the Two-way Talk function, as well as supporting 4G for cable-free installations. With H.265 compression, a MicroSD slot up to 256 GB and IP67 protection, it represents a versatile choice for homes, shops and small businesses. Dahua

Technical Data Sheet

referencia : IPC-HFW1239DT-4G-ST-IL

brand : Dahua

EAN: 6923172596147

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW1239DT-4G-ST-IL | 2MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - 4G

Dahua

The Dahua IPC-HFW1239DT-4G-ST-IL bullet camera is designed to ensure reliable security and flexible installations thanks to 4G support. It features a 1/2.8" 2MP CMOS sensor with a maximum resolution of Full HD 1080p (1920 × 1080) at 25/30 fps, which ensures clear and smooth images. The 2.8 mm or 3.6 mm fixed lens offers a wide field of view (up to 108°), while Smart Dual Illumination technology combines IR LEDs and warm light up to 30 meters for optimal vision both day and night. With a built-in microphone and speaker for Two-way Talk, a MicroSD slot up to 256 GB and IP67 protection, it is ideal for homes, shops and SMEs .

Main specifications:

- 2MP CMOS 1/2.8" sensor with Full HD 1080p resolution

- 2.8mm fixed optics with FOV up to 108°

- Smart Dual Illumination with IR and warm light up to 30 m

- Two-way Talk with built-in microphone and speaker

- 4G support and MicroSD slot up to 256 GB

- IP67 protection for outdoor installations

Further details

Optics :
Available with a 2.8 mm fixed lens, it offers a field of view of up to 108° , ideal for covering large areas with detailed images .
Resolution:
1/2.8" 2MP CMOS sensor with maximum output of Full HD 1080p (1920 × 1080) at 25/30 fps , ensuring sharp and smooth videos.
Motion Detection :
Automatically detects motion in the monitored area, triggering recording or real-time alarms .
Smart Lighting :
Technology that combines IR LEDs and warm light up to 30 meters, adapting the light intensity based on the distance of the subject .
4G :
Built-in 4G network module allows for wiring-free installations, with remote monitoring via mobile app .
Two-way Talk :
Built-in high-sensitivity microphone and speaker for instant two-way communication via app .

Network Camera:
IP camera with Smart H.265+/H.264+ compression, MicroSD slot up to 256 GB, IP67 protection and management via cloud platform .

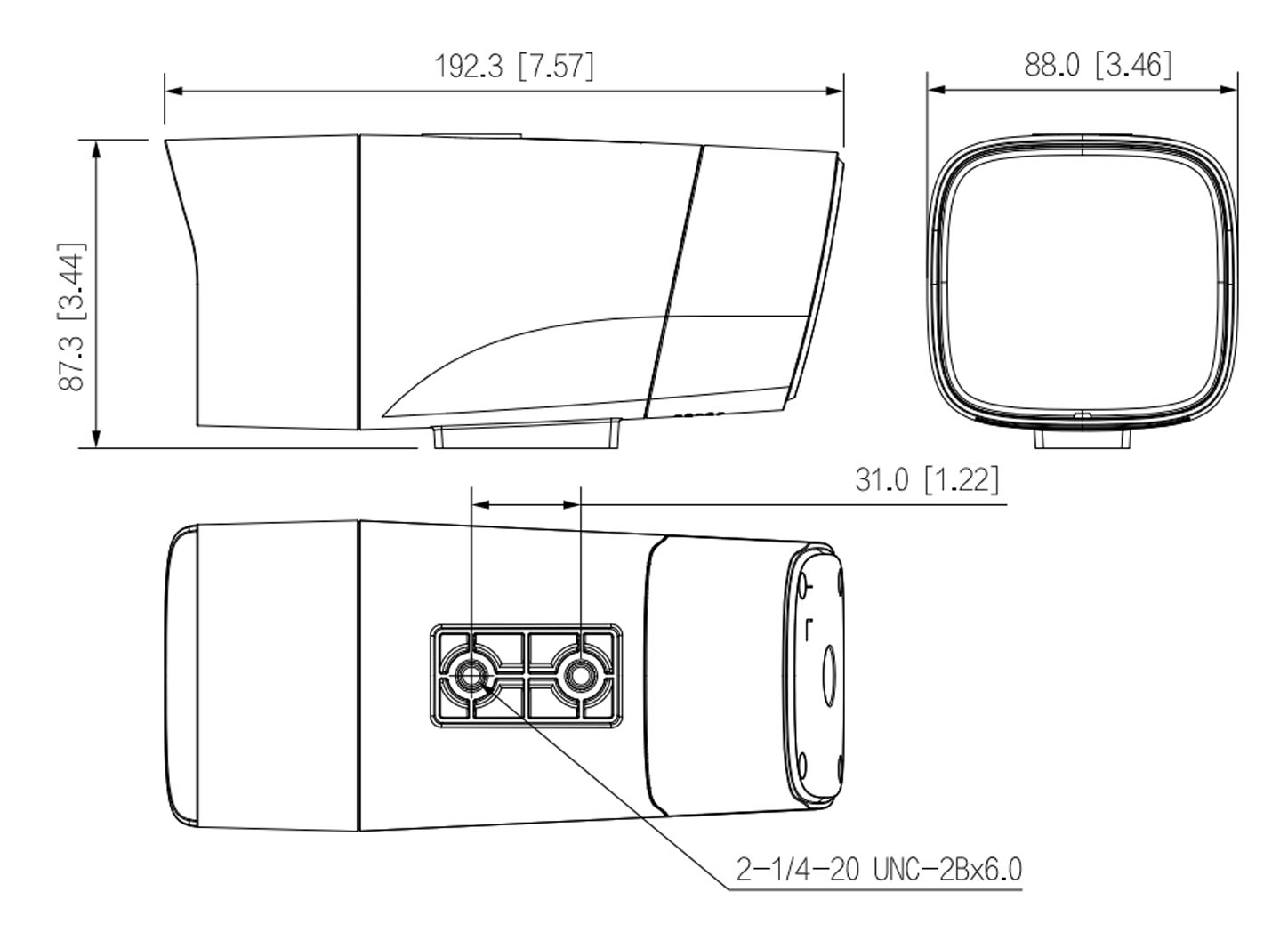

IPC-HFW1239DT-4G-ST-IL dimensions

Technical data sheet

MODEL IPC-HFW1239DT-4G-ST-IL
Room
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 lux@F1.6(Color,30 IRE)
0.0005 lux@F1.6(B/W,30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: H: 108°; V: 58°; D: 127°
Iris Type Fixed
Close Focus Distance 0.7 m (2.30 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 2 stream
Resolution 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; voltage detection; SMD (human); security exception
Network
Network RJ-45 (10/100 Base-T)
Carrier Network 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
Power class 3: 23dBm ±2.7dB
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability ONVIF (Profile S; Profile G; Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB); NAS
Browser IE: IE7; Chrome; Firefox
Management Software SmartPSS Lite; DSS; DMSS
Mobile Client Android; iOS
Cyber Security Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
Power
Power Supply 12 VDC
Power Consumption Basic: 2.3 W (12 VDC)
Max. (H.265 + max. resolution + main stream + WDR + warm light intensity +IVS+4G): 7 W (12 VDC)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Strorage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Protection IP67
Structure
Casing Material Metal + plastic
Product Dimensions 192.3 mm × 88 mm × 87.3 mm (7.56" × 3.46" × 3.43") (L × W × H)
Net Weight 0.58 kg (1.28 lb)
Gross Weight 1.06 kg (2.33 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
