SD6C3432GB-HNR-AGQ-PV1-EAU - is a PTZ camera with artificial intelligence, active deterrence and color night vision. Thanks to the 4.8–154 mm lens with 32x optical zoom and Starlight technology, it offers clear and detailed images even in low-light conditions. The system integrates auto-tracking 3.0, facial detection and perimeter protection, reducing false alarms and increasing accuracy. With IR up to 150 m , smart white light and IP66 resistance, it guarantees maximum security indoors and outdoors. Perfect for 24/7 monitoring of sensitive areas, it allows reliable and intelligent real-time control. Dahua
BUSQUE INSTALADOR
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

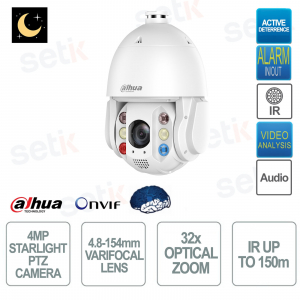

SD6C3432GB-HNR-AGQ-PV1-EAU | 4MP PTZ IP CAMERA WITH 4.8-154mm VARIFOCAL LENS - 32x OPTICAL ZOOM - STARLIGHT - ARTIFICIAL INTELLIGENCE - AUTO TRACKING
The Dahua SD6C3432GB-HNR-AGQ-PV1-EAU PTZ camera is an intelligent video surveillance solution that combines artificial intelligence, advanced night vision, and high-performance optics. With a 4MP sensor, 32x optical zoom, and starlight technology, it delivers clear, color images even in low-light conditions. Auto-tracking 3.0, perimeter protection, and facial detection ensure comprehensive and reliable security, ideal for both indoor and outdoor areas.
Main specifications:
- 1/2.8” 4MP STARVIS CMOS sensor
- 32x optical zoom (4.8–154 mm lens)
- IR up to 150 m and Smart Dual Light
- Auto-tracking 3.0 and SMD 4.0 with AI
- Facial detection and perimeter protection
- IP66 resistance and wide operating temperature range
Further details
Intelligence
Video Metadata
Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them.
IVS (Perimeter Protection)
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking
Face Detection
Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Construction Detection
Detects 6 helmet colors: Red, orange, yellow, blue, white, and black. An alarm will be triggered when a person is not wearing a helmet or when the color of the helmet that they are wearing does not match the configured color. It also supports compliance detection for work uniforms. Up to 5 work uniform sample libraries can be uploaded, which together can contain up to 1,000 images (the images must be 1080p and in the JPG format). An alarm will be triggered when the similarity between the detected work uniform and the samples in the library is below the set threshold (that is, below the minimum compliance standard for work uniforms). The system supports detecting the attributes of work uniforms such as the color of the uniform, and whether or not the person is wearing a mask and wearing shoe covers.
An alarm will be triggered when the target is detected as not meeting the set requirements. It also detects and triggers alarms when only one person is in the construction site, and when no one is present in the detection area such as when a worker leaves their post or an area is left unmanned.
Auto Tracking
Auto tracking 3.0
SMD
SMD 4.0
Acupick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Car Patrol
It activates the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets.
Active Deterrence
Light Warning
Red-Blue light warning
Flash duration: 5 s–30 s
Flash frequency: High, medium, low
Sound Warning
Sound warning alarm: Customizable
Volume: Volume: 0-100
Alarm duration: 5 s–30 s
Video
Video Compression
Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)
Streaming Capability
3 streams
Resolution
4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 1.3M (1280×960); D1 (704 × 576/704 × 480); VGA (640×480); CIF(352×288/352×240)
Video Frame Rate
Main stream: 4M/3M/2304 × 1296/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/CIF @(1–25/30 fps)
Bit Rate Control
CBR; VBR
Video Bit Rate
H.264: 96 Kbps–14,848 Kbps
H.265: 38 Kbps–8,960 Kbps
Day/Night
Auto (ICR); Color; B/W
BLC
Yes
WDR
120 dB
HLC
Yes
White Balance
Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control
Auto; Manual
Noise Reduction
2D NR; 3D NR
Motion Detection
Yes
Region of Interest (RoI)
Yes
Image Stabilization
Electronic Image Stabilization (EIS)
Defog
Electronic
Digital Zoom
16×
Image Rotation
180°
Privacy Masking
Up to 24 areas can be set, with up to 8 areas in the same view
Multiple colors available
S/N Ratio
≥ 55 dB
Audio
Audio Compression
PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port
RJ-45 (10/100 Base-T)
Wireless Carrier Frequency Band
LTE-FDD: Seven-Band B1/3/5/7/8/20/28
LTE-TDD: Tri-Band 38/40/41
WCDMA: Tri-Band 1/5/8
GSM: Band3/5/8
Power Transmission
THERE IS:
4G: Power class3: 23 dBm ± 2.7 dB
3G: Power class3: 24 dBm + 1/-3 dB
2G: Power class0: 30 dBm ± 2 dB (GSM1800/1900)
Power class5: 33 dBm ± 2 dB (GSM850/900)
Network Protocol
FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;QoS;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IG MP;HTTP;SSL;DHCP;SMTP;RTSP;ARP
Interoperability
ONVIF (Profile S & Profile G & Profile T); CGI; SDK
Streaming Method
Unicast; Multicast
User/Host
20 (total bandwidth: 64 M)
Storage
Micro SD card (512GB); FTP/SFTP; NAS
Browser
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions
Management Software
DMSS; DSS Pro
Mobile Client
iOS; Android
Port
RS-485
1 (baud rate: 1200 bps–9600 bps)
Audio Input
1 channel (LINE IN, bare wire)
Audio Output
1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))
Alarm Input
2 (on-off value input: 0–5 VDC)
Audio Output
1 channel
Alarm Linkage
Capture; recording; send email; presets; tours; pattern; alarm digital output; audio; warning light
Alarm Event
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply
12 VDC, 4 A (–10% to +25%)
Power Consumption
Deep sleep: 0.12 W
Sleep light: 2.64W
Basic: 7 W (not pulling stream in 4G); 8 W(pulling stream in 4G)
Basic: 11 W (illuminator + not pulling stream in 4G), 12 W (illuminator + pulling stream in 4G)
Max: 18W (illuminator + red and blue alarm lights + speaker + 4G + PTZ)
Environment
Operating Temperature
–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity
≤ 95%
Protection
IP66; TVS 6000V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions
325.0 mm × Φ211.0 mm (12.80" × Φ8.31")
Net Weight
4.2 kg (9.26 lb)
Gross Weight
6.7 kg (14.77 lb)
